    PROFI-5055

    PROFIBUS Remote I/O Module



    The PROFI-5055 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8-channel isolated digital input and 8-channel isolated digital output. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

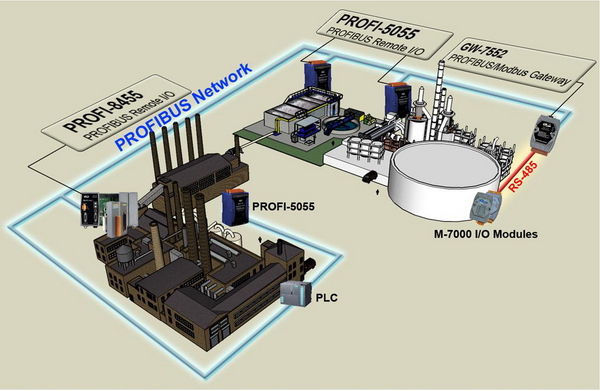

    Applications
    • Industrial Automation
    • Factory Automation
    • Process Automation
    • Etc…


    Features
    Protocol & Hierarchy
    DP-V0 Slave
    Supports Transmission Rate (Kbps)
    9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
    Transmission Rate Setting
    detected automatically
    Address Setting
    0~99 set by rotary switches
    Indicators
    PWR, ERR, and RUN LEDs
    I/O modules Configuration
    Configured by GSD file
    Network Isolation Protection
    3000 VDC on PROFIBUS side
    DC Isolation Protection
    3000 VDC on PROFIBUS side
    4KV ESD Protection
    Contact for each terminal


    Hardware Specifications
    Hardware
    ESD Protection
    4 kV class A
    PROFIBUS Interface
    Controller
    Profichip VPCLS2
    Transceiver
    ADI ADM2486
    Connector
    9-pin female D-Sub
    Baud Rate (bps)
    9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
    Transmission Distance (m)
    Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
    Isolation
    3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
    Protocol
    DP-V0
    LED
    Round LED
    PWR LED, RUN LED
    Power
    Power supply
    Unregulated +10 ~ +40 VDC
    Protection
    Reverse polarity protection, Over-voltage brown-out protection
    Power Consumption
    1 W
    I/O
    Digital Output
    8 Channels (Sink), Isolated with common ground
    Load Voltage: +10 ~ +40V
    Maximum Load Current: 650mA w/o Short-Circuit Protection
    Isolation Voltage: 3750Vrms
    Digital Input
    8 Channels (Sink or Source), Isolated from each other
    Off Voltage Level: +4V Max. On Voltage Level: +10 ~ +50V
    Input Impedance: 10KΩ in series with opto-coupler
    Isolation Voltage: 3750Vrms
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    91 mm x 128 mm x 52 mm (W x L x H)
    Environment
    Operating Temp.
    		 -25 ~ 75℃
    Storage Temp.
    		 -30 ~ 80℃
    Humidity
    		 10~90% RH,non-condens


    Ordering Information
    PROFI-5055 CR
    		 PROFIBUS Remote I/O Module (8-channel Isolated Digital Input and 8-channel Isolated Digital Output)
