  • GW-7228

    J1939/Modbus RTU Slave Gateway




    The GW-7228 is a solution that provides a protocol conversion between J1939 and Modbus RTU. For J1939 network, the GW-7228 supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. From the view of Modbus RTU network, the GW-7228 is a Modbus RTU slave to reply the request from Modbus RTU master. We provide Utility software for users to configure the parameters of J1939 / Modbus RTU of the GW-7228. The application fields can be Diesel power-train applications, In-Vehicle networks for trucks and buses, etc.

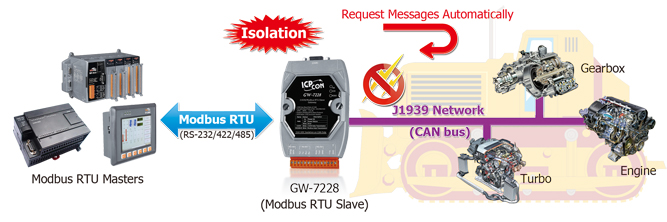

    The following figure shows the application architecture for the GW-7228



    Applications
    • Diesel power-train applications
    • In-Vehicle networks for trucks and buses
    • Truck-Trailer connections
    • Fleet management systems
    • On Board Diagnostics
    • Vehicle Automation


    Features
    • Provide PWR / J1939 / MODBUS indication LED
    • Built-in jumper to select 120 ohm terminal resister
    • Watchdog inside

    J1939 Features

    • Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
    • J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
    • Supported BAM of Connection Management Message
    • Network addresses management

    Modbus RTU Features

    • Support RS-232, RS-485 and RS-422
    • interfacesSupported Modbus RTU slave protocol
    • Configurable for Modbus Network ID(1~250)
    • Configurable baud rates of 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
    • Configurable for no, odd, or even parity and 1 or 2 stop bits
    • Support Function Code 03 / 04 / 06 / 16 of Modbus functions for reading and writing J1939 Messages

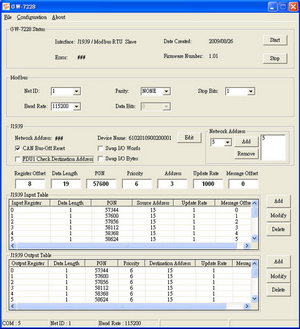

    Utility
    • Provide Modbus network configuration interface
    • Provide J1939 network configuration interface – Network Address / Device Name…
    • Provide J1939 Input / Output configuration interface



    Comparison Table
    ICP DAS Fieldbus Gateways Comparison Table:

    Support Protocol
    GW-7228
    GW-7433D
    I-7231D
    I-7232D
    I-7241D
    I-7242D
    J1939
    CANopen Master
    CANopen Slave
    CANopen Slave
    DeviceNet Slave
    DeviceNet Slave
    Modbus RTU Slave
    Modbus TCP server/RTU Slave
    DCON Master
    Modbus RTU Master
    DCON Master
    Modbus RTU Master
    Comm.
    Interface
    RS-232
    RS-422
    RS-485
    RS-232
    RS-485
    Ethernet
    RS-232
    RS-485
    RS-232
    RS-485
    RS-232
    RS-485
    RS-232
    RS-485

    Support Protocol
    I-7243D
    GW-7243D
    GW-7552
    GW-7553
    HART-710
    DeviceNet Master
    DeviceNet Slave
    PROFIBUS DP-V0 Slave
    PROFIBUS DP-V0 Slave
    HART Master
    Modbus TCP server
    Modbus TCP/RTU/
    ASCII Master
    Modbus RTU/ASCII
    Master/Slave
    Modbus
    TCP/RTU/ASCII Master/Slave
    Modbus RTU/ASCII
    Slave
    Comm.
    Interface
    Ethernet
    RS-232
    RS-485
    Ethernet
    RS-232
    RS-422
    RS-485
    RS-232
    Ethernet
    RS-232
    RS-422
    RS-485


    Hardware Specifications
    Hardware
    J1939 Port Channels
    1
    CAN Interface
    Transceiver
    NXP 82C250
    Connector
    9-pin D-sub connector
    Baud Rate (bps)
    250k
    Isolation
    3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus
    Terminal Resistor
    Selectable 120Ω terminal resistor by jumper
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    Pin Assignment
    C.I.A. DS-102 (CAN_H=7, CAN_L=2)
    UART Interface
    Connector
    14-pin screw terminal connecter
    COM1
    RS-232(TXD, RXD, GND)/RS-422(Tx+, Tx-, Rx+, Rx-)/ RS-485(D+, D-)
    Baud Rate (bps)
    2400, 4800, 9600, 19200, 38400, 57600, 115200
    LED
    Round LED
    PWR / J1939 / MODBUS
    Power
    Power supply
    +10 ~ +30 VDC
    Power Consumption
    1.5 W
    Dip Switch
    Init (Firmware Update) / Normal (Firmware Operation)
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    108mm x 72mm x 35mm (H x W x L)
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Ordering Information
    GW-7228 CR
    J1939/Modbus RTU Slave Gateway included CA-0910 cable(RoHS)


    Optional Accessories
    CA-0910-C
    9-pin Female D-sub & 3-wire CAN bus cable (1M)
    CNT-CAN
    CAN bus Connector
    SG-770
    7/14 channel Surge Protector
    4PCD-002
    EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68
    Field-Installation A-coded 5-pin Female
