    ECAT-2011H ~ NEW ~

    EtherCAT Slave I/O Module with 16-ch/8-ch AI

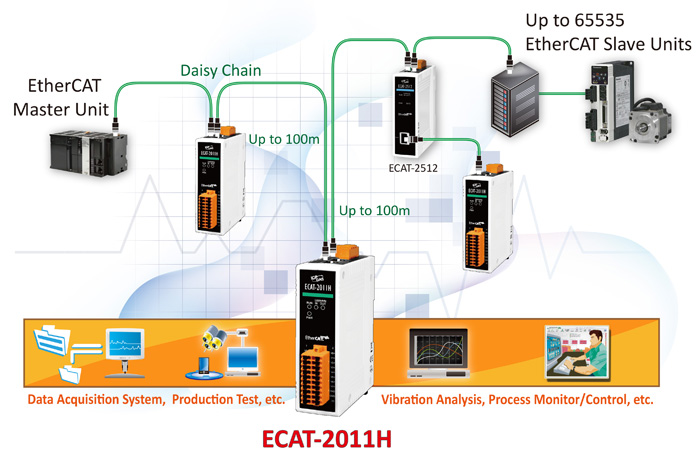

    The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring.

    The ECAT-2011H is built in 8-ch differential inputs or 16-ch single-ended inputs by software selectable. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.



    Applications
    • Semiconductor Tools
    • Metal Forming
    • Packaging
    • Injection Molding
    • Assembly Systems
    • Printing Machines
    • Robotics



    Features
    • On the fly processing: EtherCAT
    • Powerful MCU handles efficient network traffic
    • 2 x RJ-45 bus interface
    • Distance between Stations up to 100 m (100BASE-TX)
    • Support daisy chain connection
    • EtherCAT conformance test tool verified
    • Removable terminal block connector
    • LED indicators
    • Built-in Analog Input: 8-/16-ch
    • RoHS compliant


    Hardware Specifications
    Analog Input
    Channels 8/16
    Wire Connection 8 Differential or 16 Single-ended (Software Selectable - see Note 1)
    Type Voltage, Current
    Range

    0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4 ~20 mA (Software selectable)
    Resolution 12-bit
    Sampling Rate 1k Hz per channel
    Accuracy 0.2% of FSR
    Individual Channel Configuration Yes
    Over Voltage Protection ±35 VDC
    Open Wire Detection for +4 ~ 20mA Yes
    Communication Interface
    Connector 2 x RJ-45
    Protocol EtherCAT
    Distance between Stations Max. 100 m (100BASE-TX)
    Data Transfer Medium Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
    Power
    Input Voltage Range 10V ~ 30VDC
    Power Consumption Max. 4W
    Mechanism
    Installation DIN-Rail
    Dimensions 110mm x 90mm x 33mm (H x W x D, without connectors)
    Case Material UL 94V-0 housing
    Environment
    Operating Temperature -25℃ ~ 75℃
    Storage Temperature -30℃ ~ 80℃
    Relative Humidity 10 ~ 90%, No Condensation
    ESD (IEC 61000-4-2) 4 KV Contact for Each Channel
    EFT (IEC 61000-4-4) Signal: 1 KV Class A; Power: 1 KV Class A
    Surge (IEC 61000-4-5) 1 KV Class A


    Ordering Information
    ECAT-2011H CR
    		 EtherCAT Slave I/O Module with 16-ch/8-ch AI (RoHS)
