    ECAT-2611 ~ NEW ~

    EtherCAT Slave to Modbus RTU Slave Gateway



    The ECAT-2611 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus RTU networks. The ECAT-2611 acts as a Slave on both networks, allowing I/O data to be transferred between the two networks.
    The ECAT-2611 provides a data exchange buffer that allows two different systems (EtherCAT Master and the Modbus RTU Master) exchange data easily and faster for more diverse applications.

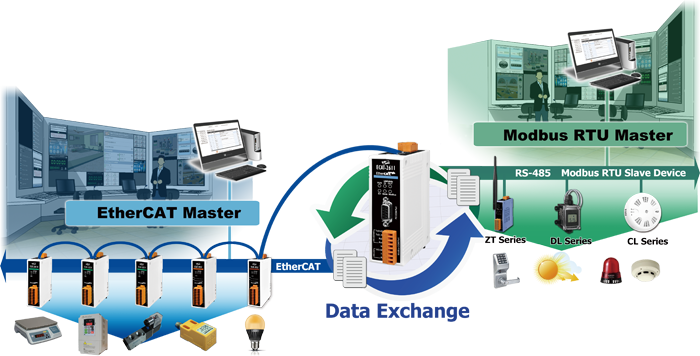

    Applications



    Features
    • Powerful MCU handles efficient network traffic
    • 2 x RJ-45 EtherCAT connectors
    • Transfer of I/O data between two networks
    • Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
    • Requires no hardware or software changes to be made to the connected device
    • Compatible with all PLCs with EtherCAT support
    • Performs complete serial protocol conversion, no PLC function blocks required
    • Supports maximum 256 WORD Input and 256 WORD Output Data
    • Supports serial port interface
      • Supports Modbus RTU (Salve) protocol
      • Supports RS-232/422/485 Port
      • Supports maximum Baud Rate 115200 bps
      • Supports Modbus Function code 03, 04, 06 and 16


    Hardware Specifications
    Network Interface
    Protocol EtherCAT
    RJ-45 Port RJ-45 x 2
    Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e)
    Communication Interface
    Protocol  Modbus RTU (Slave)
    Serial Interface

    RS-232

    RS-422

    RS-485

    		 The RS-232, RS-422 and RS-485 cannot be used simultaneously
    • TxD, RxD, GND
    • TxD+, TxD-, RxD+, RxD-
    • Data+, Data-
    Power Input
    Redundant Input Range +12 ~ +48 VDC
    Power Consumption 0.1 A @ 24 VDC
    Protection Power reverse polarity protection
    Connector 3-Pin Removable Terminal Block (5.08mm)
    Mechanical
    Dimensions 110mm x 90mm x 33mm (H x W x D)
    Installation DIN-Rail
    Environmental
    Operating Temperature -25 °C ~ + 75 °C
    Storage Temperature -30 °C ~ + 80 °C
    Ambient Relative Humidity 10 ~ 90% RH, non-condensing


    Ordering Information
    ECAT-2611 CR EtherCAT Slave to Modbus RTU Slave Gateway (RoHS)
