ECAT-2610-DW ~ NEW ~

EtherCAT to Modbus RTU and Power Meter Gateway

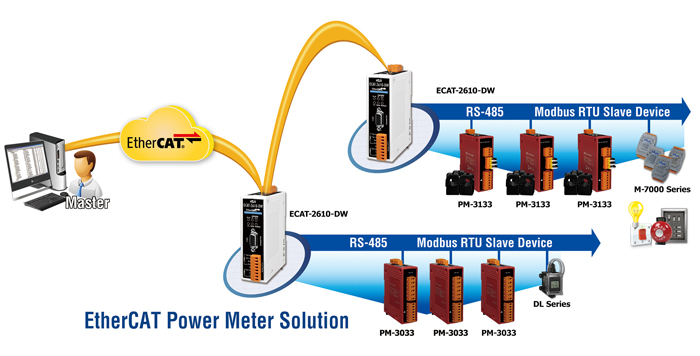

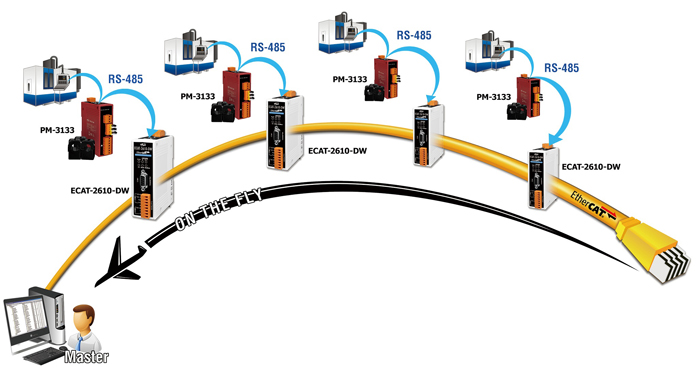

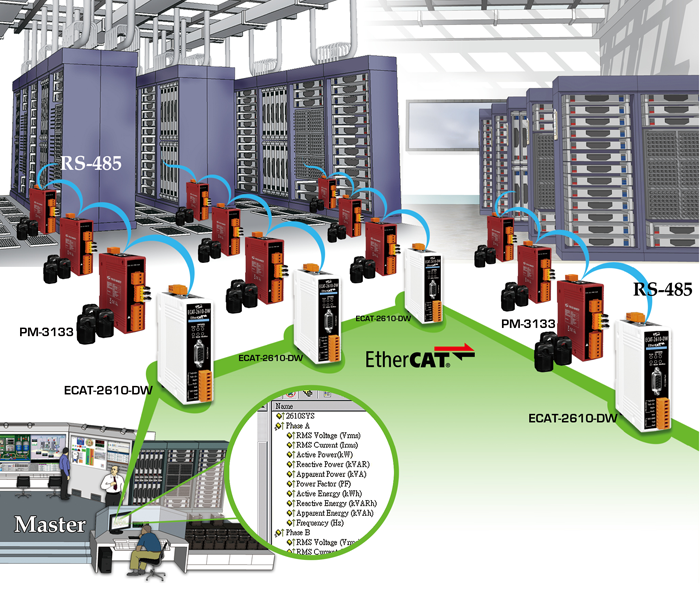

ECAT-2610-DW has EtherCAT to Modbus RTU gateway function, and can integrate smart meter slave devices such as PM-3033/3133/3114/3112 into EtherCAT control system through the special configuration file that provided by ICP DAS. And very easy to install and configure. The EtherCAT master can access RxPDO and TxPDO to connect multiple smart meter slave devices such as PM-3033/3133/3114/3112. It can achieve a more diversified energy management program.

Applications

Features

Supports maximum 128 Input and Output Data
Supports maximum 6 connection for PM-3033/3133
2 x RJ-45 bus interface, Integrate RS-232/422/485 serial device to EtherCAT
Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
Supports blended to other Modbus slave
Supports maximum Baud Rate 115200 bps

Hardware Specifications

Network Interface
Protocol		EtherCAT
Communication Interface
RJ-45 Port		RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e)
Serial Interface	RS-232	The RS-232, RS-422 and RS-485 cannot be used simultaneously TxD, RxD, GND TxD+, TxD-, RxD+, RxD- Data+, Data-
	RS-422
	RS-485
Power Input
Redundant Input Range		+12 ~ +48 VDC
Power Consumption		0.1 A @ 24 VDC
Protection		Power reverse polarity protection
Connector		3-Pin Removable Terminal Block (5.08mm)
Mechanical
Dimensions		110mm x 90mm x 33mm (H x W x D)
Installation		DIN-Rail
Environmental
Operating Temperature		-25 °C ~ + 75 °C
Storage Temperature		-30 °C ~ + 80 °C
Ambient Relative Humidity		10 ~ 90% RH, non-condensing

Ordering Information

ECAT-2610-DW CR

EtherCAT to Modbus RTU and Power Meter Gateway (RoHS)
