    PCM-CPM100-D

    1-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin Male D-sub connector



    PCM-CPM100-D can represent a CANopen solution on a high quality PCI104 hardware in industrial environment compliant with CANopen CiA-301 version 4.02 specification. It has one CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CANopen applications.

    Besides, PCM-CPM100-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI104 slot and supported truly "Plug & play"

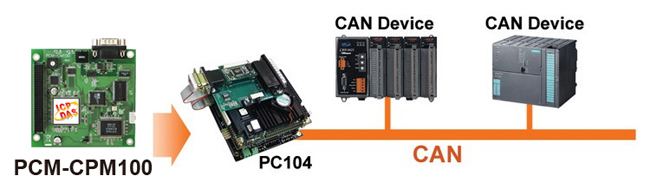

    Applications
    • CANopen communication application
    • Control System
    • Building Automation
    • Factory Automation
    • Distributed data acquisition


    Features
    • PCI104 compliant
    • 9-pin D-sub connector
    • Compatible with CiA-301 v4.02
    • Fully compatible with ISO 11898-2 standard
    • Support CAN bard from 10K to 1M bps
    • 2500 Vrms photo couple isolation on the CAN bus
    • Built-in jumper to select 120 ohm terminal resister
    • 1KV galvanic isolation
    • Direct memory mapping to the CAN controller
    • Provide VB, VC++, Delphi, BC++ demos
    • Driver support Windows 98/ME/NT/2K/XP/WinCE and Linux


    Hardware Architecture



    Software Architecture


    Performance Test

    Test development：
    OS：Windows XP SP 3
    CPU：Intel Core 2 Duo 2.00 GHz
    RAM：512 MB

    Baud Rate(bps) SDO Read
    (4 byte date)    		 SDO Write
    (4 byte date)    		 PDO Read
    (8 byte date)     		PDO Write
    (8 byte date)
    Frame per sec. Frame per sec. Frame per sec. Frame per sec.
    1000 k 508 507 508 512
    800 k 507 505 507 511
    500 k 506 505 506 511
    250 k 365 450 500 511
    125 k 255 255 256 510
    50 k 150 147 139 386
    20 k 73 73 97 144
    10 k 39 39 85 83

    Note：The test result is the average value of 10000 CANopen messages.



    Hardware Specifications
    Bus Interface
    Type PCI-104
    CAN Interface
    Controller NXP SJA1000T with 16 MHz clock
    Transceiver NXP 82C250
    Channel number 1
    Connector 9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
    Terminal Resistor Jumper for 120 Ω terminal resistor
    Power
    Power Consumption 250 mA @ 5 V
    Mechanism
    Dimensions 91mm x 22mm x 96mm (W x L x H)
    Environment
    Operating Temp. 0 ~ 60 ℃
    Storage Temp. -20 ~ 70 ℃
    Humidity 5 ~ 85% RH, non-condensing


    Ordering Information
    PCM-CPM100-D-CR
    		 1-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin Male D-sub connector (RoHS)


    Optional Accessories
    CNT-CAN CAN bus Connector
    CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)
    SG-770 7/14 channel Surge Protector
    4PCD-002 EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68 Field-Installation A-coded 5-pin Female
