| CAN-Logger100 |
CAN-Logger200 |
|
|
|
|

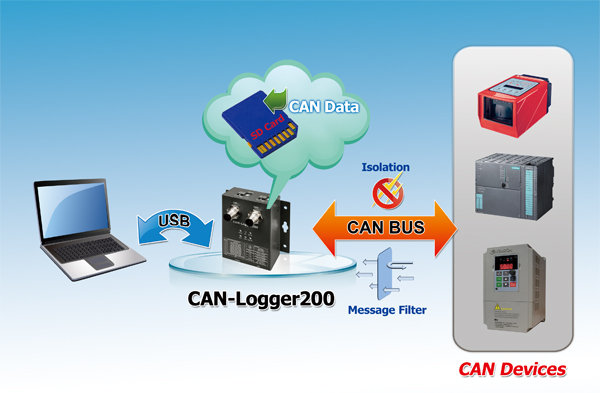

The CAN-Logger series devices (CAN-Logger100 / CAN-Logger200) are high-performance intelligent CAN bus data logger device with one/two CAN port that can help to make data collection and to process on a CAN bus network easier and quicker. The powerful CPU of the CAN-Logger devices provide the accurately time-stamp for each CAN message and supports storage media like SD or SDHC type flash for saving these CAN messages that is useful to analysis and diagnostic the CAN Bus network. In order to enhance the portability of the CAN-Logger200, this module is powered by the USB interface or M12 connectors of CAN bus interface. The CAN-Logger devices use the standard USB HID driver of the Windows system.
|
|
|
|
|
|
| Applications |
|
|
|
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
|
 |
|
|
|
|
| Features |
|
|
|
- Compatible with CAN specification 2.0 parts A and B
- 2500 Vrms photocoupler isolation on the CAN side
- Full compatible with the ISO 11898-2 standard
- Supports CAN bus acceptance filter configuration
- Max. CAN data flow for a single channel is 15000 fps
- Programmable CAN bus baud rate from 10 kbps ~ 1Mbps
- USB 2.0 High Speed Compatibility
- Supports 4 to 32 GB SDHC type flash for saving CAN messages
- Built-in jumper for the 120 Ω terminal resistor of the CAN side
- Power by the USB port or CAN port
- 3 kV galvanic isolation for the CAN port
- Provides a configuration utility that can be used to transmit/receive CAN messages
|
|
|
|
| Hardware Specifications |
|
|
|
| Model Name |
CAN-Logger100 |
CAN-Logger200 |
| CAN Interface |
| Transceiver |
NXP TJA1042 |
| Channel Number |
1 |
2 |
| Connector |
5-Pin male M12 x 1
(Pin 1: F.G., Pin 2: +Vs, Pin 3: GND,
Pin 4: CAN_H Pin 5: CAN_L) |
5-Pin male M12 x 2
(Pin 1: F.G., Pin 2: +Vs, Pin 3: GND,
Pin 4: CAN_H Pin 5: CAN_L) |
| Transmission Speed (bps) |
10 k, 20 k, 50 k, 100 k, 125 k, 250 k, 500 k, 800 k, 1 M and user-defined baud rate |
| Terminal Resistor |
DIP switch for the 120 Ω terminal resistor |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| CAN Filter Configuration |
Utility tool |
| USB Interface |
| Connector |
USB Type B x 1 |
| Compatibility |
USB 2.0 High Speed |
| Max. Data flow |
Transmit: 4000 fps ; Receive: 1000 fps |
| Software Driver |
Windows 2K/XP/7/8/10 |
| Data Logger Capability |
| Storage Media |
SDHC type flash – support 4 to 32 GB |
| Recording Format |
Binary |
| Time Stamp |
10 us |
| Configuration |
Utility tool |
| Data Logger |
Maximum message rate, receive: 15000 msgs/s |
| Trigger |
Log continuously |
| LED |
| Round LED |
Power, MS, SD, CAN1, CAN2, CAN_ST LEDs |
Power, MS, SD, CAN_Rx, CAN_Tx, CAN_ST LEDs |
| Power |
| Power supply |
USB power or CAN bus power (Unregulated +10 ~ +30 VDC) delivery |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
0.1A @ 24VDC |
| Mechanism |
| Installation |
Wall Mount |
| Casing |
Metal |
| Dimensions |
102.0 mm x 102.0 mm x 44.0 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|

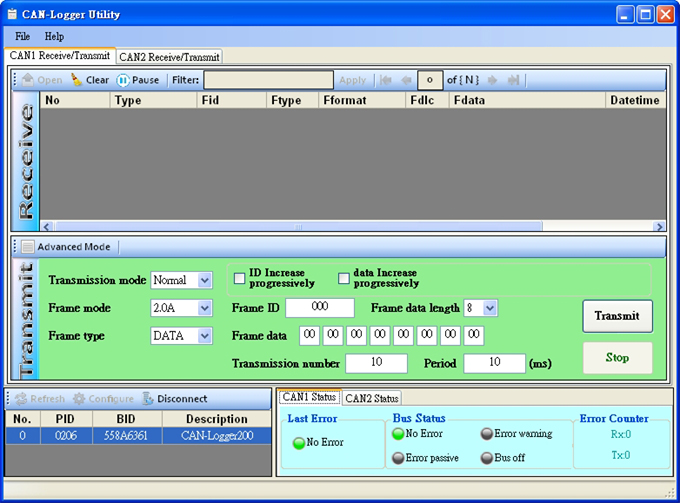

| Software |
|
|
|
- CAN 2.0A or CAN 2.0B specification selection
- CAN Bus baud rate and acceptance filter configuration
- Easy to transmit/receive CAN messages and check CAN Bus state
- CAN Bus communication mode (normal and silent mode ) configuration
- Data filter function for logged data
|
|
|
|
| Ordering Information |
|
|
|
| CAN-Logger100 CR |
1-port CAN Bus Data Logger Device (RoHS) |
| CAN-Logger200 CR |
2-port CAN Bus Data Logger Device (RoHS) |
|
|
|
|
| Optional Accessories |
|
|
|
| CA-USB15 |
1.5M USB 2.0 A-Male to B-Male 28/24 AWG Cable w/Ferrite Core |
| SG-770 |
7/14 channel Surge Protector |
| 4PCD-002 |
EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 |
Field-Installation A-coded 5-pin Female |
|
|
| |
|
