    μPAC-7186EXD-CAN

    μPAC-7186 CAN bus series Programmable Automation Controller

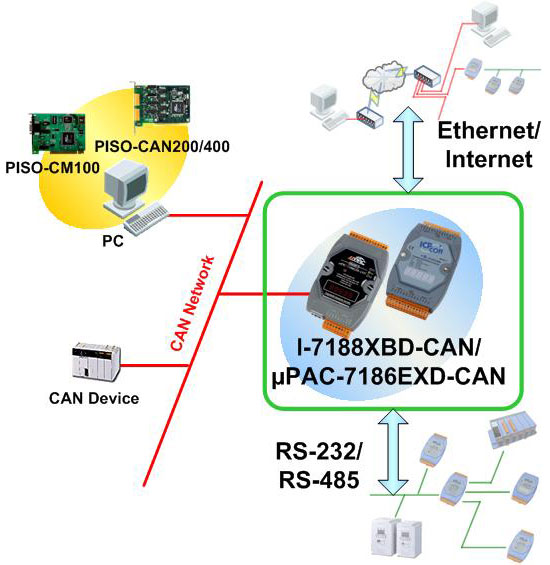

    Embedded Internet” and “Embedded Ethernet” are hot topics today. Nowadays the Ethernet protocol becomes the de-facto standard for local area network. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines to testing equipment to UPS…etc. Using Ethernet for network in industrial area is appealing because the required cabling is already installed. The μPAC-7186EXD-CAN PACs (programmable Automation controller) are powered by 80186-80 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port, RS-485 port and Ethernet interface. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the μPAC-7186EXD-CAN series PACs have different I/O types for users to match their requirement. For μPAC-7186EXD-CAN , there is no I/O channel. It is useful for transfer the command from differential communication interface. Therefore, the μPAC-7186EXD-CAN series PACs are economic and convenient solution for diversification CAN application.




    Applications
    • CAN bus communication application
    • Industry automation
    • Auto detecting CANopen slave devices
    • IO monitor
    • High speed data acquisition system
    • Process monitor and control
    • Factory automation
    • Laboratory automation
    • Communication switching


    TCP/IP Library
    The software library provides TCP/IP protocols & web server. Support the following protocols.
    • TCP, Transmission Control Protocol:
            Transport layer with connections, flow control and error correction
    • UDP, User Datagram Protocol:
            Simple connectionless transport layer
    • IP, Internet Protocol:
            The network layer
    • ICMP, Internet Control Message Protocol:
            Part of IP for practical purposes
    • ARP, Address Resolution Protocol:
            Retrieves a host’s network controller’s hardware address, given the host’s Internet address
    • Reverse Address Resolution Protocol:
            Retrieves a host’s Internet address, given the host’s network controller’s


    Features
    • 1000 VDC voltage protection on CAN side
    • Compatible with CAN specification 2.0 parts A and B
    • Programmable transfer rate up to 1 Mbps
    • Jumper select 120Ω terminal resistor for CAN channel
    • Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
    • 10/100BASE-T Ethernet Controller
    • Upgradable OS image
    • Remote Configuration
    • 64-bit hardware unique serial number inside
    • COM driver support interrupt & 1KB QUEUE Input & Output buffer
    • COM port: COM1, COM2
    • Built-in RTC, NVRAM, EEPROM
    • Built-in self-tuner ASIC controller on RS-485 port
    • 7-segment LED display
    • Built-in ICP DAS's MiniOS7
    • Program download port: COM1 or Ethernet Port (Available soon)


    Hardware Specifications
    Hardware
    CPU
    80186, 80 MHz or compatible
    SRAM
    512 KB
    Flash
    512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles
    EEPROM
    16 KB; Data retention: 40 years; 1,000,000 erase/write cycles
    NVRAM
    31 bytes (battery backup, data valid for up to 10 years)
    RTC (Real Time Clock)
    Yes
    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    Transceiver
    NXP 82C250/NXP TJA1042
    Channel number
    1
    Connector
    5-pin screwed terminal block (CAN_L, CAN_H, N/A for others)
    Baud Rate (bps)
    10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
    Isolation
    1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminal Resistor
    Jumper for 120 Ω terminal resistor
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    UART Interface
    COM 1
    RS-232
    COM 1 Connector
    5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND)
    COM 2
    RS-485 (Self-turner inside)
    COM 2 Connector
    2-pin screwed terminal block (DATA+, DATA-)
    Baud Rate (bps)
    110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
    Ethernet Interface
    Controller
    10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
    Power
    Power supply
    Unregulated +10 ~ +30 VDC
    Protection
    Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption
    3 W
    Mechanism
    Dimensions
    72mm x 122mm x 33mm (W x L x H)
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Ordering Information
    μPAC-7186EXD-CAN-G
    		 Programmable Automation controller with two series communication port (RS-232/RS-485), one CAN port, one Ethernet port, 7-segment Display, 4 programable LEDs, 512 KB flash ,512 KB SRAM, developing tool kit, Minios7.
    μPAC-7186EXD-CAN-G CR
    		 Programmable Automation controller with two series communication port (RS-232/RS-485), one CAN port, one Ethernet port, 7-segment Display, 4 programable LEDs, 512 KB flash ,512 KB SRAM, developing tool kit, Minios7. (RoHS)


    Optional Accessories
    CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)
    SG-770 7/14 channel Surge Protector
    4PCD-002 EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68 Field-Installation A-coded 5-pin Female
