ICP DAS has provided a lot of UART/CAN product solutions which are widely recommended in the market. These UART/CAN converters can help users to implement the communication between UART and CAN network. In order to cater for costing requirement, we provide a new solution of UART /CAN converter-tM-7530A. The tM-7530A is a tiny UART/CAN converter to fit narrower environment as a result of its small size. It has isolation on power side and on CAN bus side and its performance is faster than other UART/CAN module. The function of tM-7530A can full compatibly with I-7530 and I-7530T. In additional, it provides new function such as listen only. User can use this function to listen CAN bus messages and error detection. According to above features, tM-7530A is an economical and practical UART/CAN converter solution.

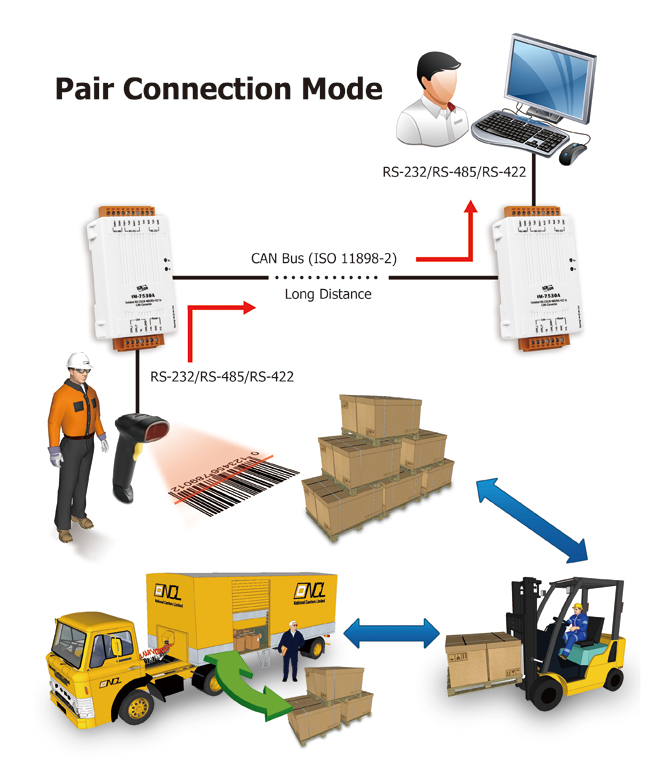

Moreover, we expand the functionalities of tM-7530A for some special application. In pair connection mode, tM-7530A can be used to connect PC with other UART devices at the same time. The application architecture may be as follows.
|
|
|
|

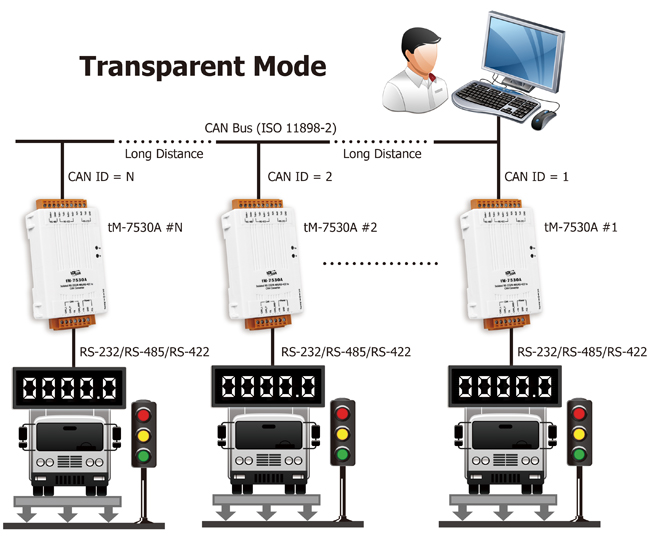

| Applications |
|
|
|
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
|
 |
|
|
|
|
| Product Features |
|
|
|
- Compatible with CAN specification 2.0A and 2.0B
- Fully compatible with ISO 11898-2 standard
- Support various CAN baud rate from 10K bps to 1M bps
- Support user-defined CAN baud rate
- Support various UART baud rate from 110 bps to 230400 bps
- Build-in selectable 120 Ω terminal resistor
- Software configurable CAN and UART communication parameters
- Power, data flow, and error indicator for CAN and UART
- Watchdog inside
- Support pair connection mode
- Software buffer on CAN bus side and UART side
- Support user-defined end of characters on pair connection mode
- Support listen only mode · Support time stamp response on UART side
|
|
|
|
| Software Feature |
|
|
|
- CAN bus baud rate configuration
- CAN bus ID filter configuration
- CAN 2.0A or CAN 2.0B specification selection
- UART baud rate and data format configuration
- Communication mode(normal , pair connection , and listen only mode ) configuration
- Easy test to transmit/receive CAN messages
- CAN bus data flow detection
- Group Send CAN messages for special application
- Trigger event setting for advance received CAN messages
- Integrate all CAN bus converter utility of ICP DAS
|
|
|
|
| Software Utility |
|
|
|
The tM-7530A uses VxCAN Utility to configure and test. VxCAN is a technique developed from ICP DAS and we call it “Virtual CAN”. It is used to integrate all of ICP DAS CAN converter modules. Via this technique and its Windows platform API, users can develop utility tool by themselves to fit their application. The VxCAN Utility is also developed by using this method. Thus, we will integrate all CAN converter utility via VxCAN Utility in the future. About more VxCAN information, please refer to website:
VxCAN Driver

|
|
|
|
| Performance Test |
|
|
|
| Performance test: from CAN to RS-232(115200, n, 8, 1). Unit: Frames Per Second (FPS). |
| Baud rate |
1000K |
800K |
500K |
250K |
125K |
50K |
20K |
10K |
| CAN 2.0A |
519 |
519 |
523 |
522 |
522 |
416 |
176 |
88 |
| CAN 2.0B |
423 |
423 |
426 |
425 |
426 |
353 |
146 |
74 |
| Performance test: from RS-232(115200, n, 8, 1) to CAN. Unit: Frames Per Second (FPS). |
| Baud rate |
1000K |
800K |
500K |
250K |
125K |
50K |
20K |
10K |
| CAN 2.0A |
523 |
524 |
523 |
522 |
520 |
451 |
180 |
90 |
| CAN 2.0B |
425 |
426 |
427 |
426 |
427 |
377 |
150 |
75 |
|
|
|
|
| Hardware Specifications |
|
|
|
| CAN Interface |
| Transceiver |
NXP TJA1042 |
| Channel number |
1 |
| Connector |
7-pins screwed terminal block(CAN_H, CAN_L, CAN_GND) |
| Baud Rate (bps) |
10 k, 20 k, 50 k, 100k, 125 k, 250 k, 500 k, 800 k, 1 Mbps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Build-in selectable 120 Ω terminal resistor |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| UART Interface |
| COM |
RS-232, RS-485, RS-422 |
| Connector |
10-pins screwed terminal block |
| Baud Rate (bps) |
110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 2 |
| Parity bit |
None, Even, Odd |
| LED |
| Round LED |
ON LED: Power and Data Flow; ERR LED: Error Status |
| Power |
| Power |
+10 ~ +30 VDC |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
1W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
52mm x 93mm x 27mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
Intelligent tiny UART/CAN converter (RoHS) |
|
|
|
|
| Optional Accessories |
|
|
|
| CNT-CAN |
CAN bus Connector |
| CA-0910-C |
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
| SG-770 |
7/14 channel Surge Protector |
| 4PCD-002 |
EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 |
Field-Installation A-coded 5-pin Female |
|
|
| |
|
