I-7565M-HS~ NEW ~

High Speed USB to 2-port CAN Bus Converter

I-7565M-HS is a high speed USB to CAN converter with two CAN channels. It improves the transformation speed of other I-7565 series, and allows receiving max. 15000 standard 2.0A CAN frames per second. I-7565M-HS support CAN2.0A/2.0B protocol and different baud rates from 10 kbps to 1000 kbps. The important feature of I-7565M-HS is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565M-HS to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-HS. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.

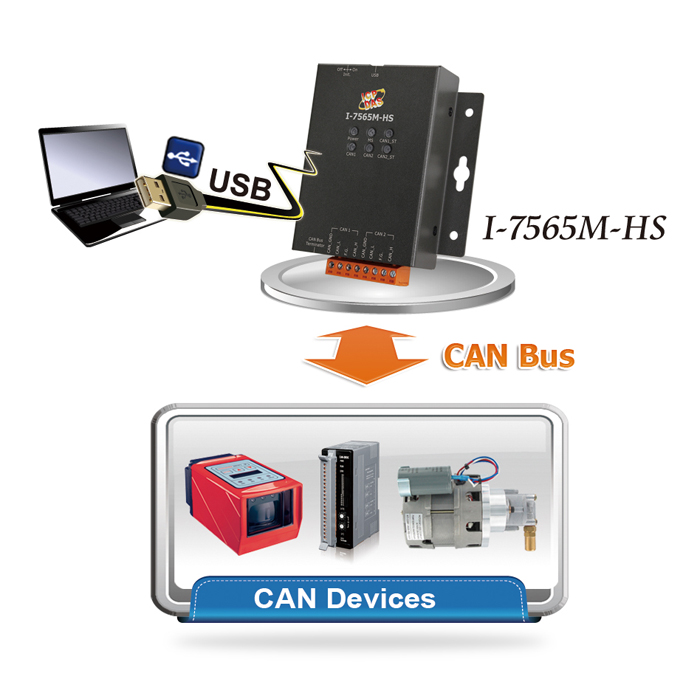

The following is the application structure for the USB to CAN module. The PC can be the CAN host, monitor or HMI to access/control the CAN devices through the CAN network by the I-7565M-HS Converter. The module let users to communicate with CAN devices easily from PC with USB interface.

Applications

Control System
Building Automation
Factory Automation
Monitor System
Vehicle Automation

Features

Compatible with USB 2.0 (High Speed)
Compatible with the ISO 11898-2 standard
Support both CAN2.0A and CAN2.0B specifications
No external power supply (powered by USB)
Programmable CAN Bus baud rate from 10kbps to 1000kbps
Support CAN Bus message filter configuration
Timestamp of CAN message with at least ±10us precision
Watchdog inside
Provide PWR, CAN Tx/Rx and CAN status indication LEDs
Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
Support firmware update via USB

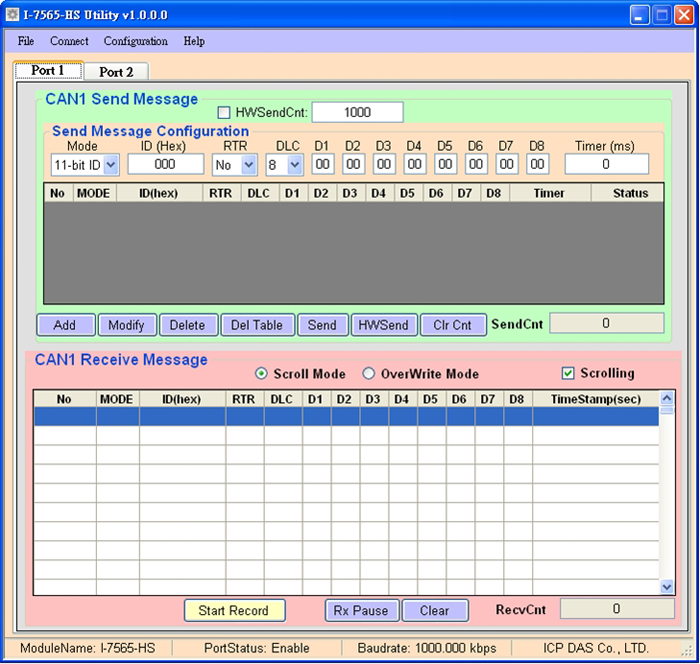

Provide utility tool for users module setting and CAN Bus communication testing conveniently
Provide API library for user program development

Software

Provide CAN Bus baud rate / acceptance filter configuration
Easily transmit/receive CAN messages for testing and display the time-stamp of each received CAN message
Provide saving the CAN message as “TXT” file for data log
Provide sending CAN message by using the internal timer of module for high precision transmission
Check / Reset module status remotely and get current CAN Bus message flow

Hardware Specifications

CAN Interface
Transceiver	NXP TJA1042
Channel Number	2
Connector	8-pin terminal-block connector
Transmission Speed	10 ~ 1000 kbps
Terminal Resistor	DIP switch for the 120 Ω terminal resistor
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B
CAN Filter Configuration	Selectable whitelist and blacklist CAN ID filter via Utility tool
Receive Buffer	512 data frames
Max Data Flow	15000 fps for Tx/Rx
USB Interface
Connector	USB Type B
Compatibility	USB 2.0 High Speed (480Mbps)
Software Driver	Built-in Windows 7/8/10
LED
Round LED	Power, MS, CAN1, CAN2, CAN1_ST, CAN2_ST LEDs
Power
Power supply	USB power delivery
Power Consumption	1.5 W (Max.)
Mechanism
Installation	Wall Mount
Casing	Metal
Dimensions	111.0 mm x 102.0 mm x 27.0 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

Ordering Information

I-7565M-HS CR

High Speed USB to 2-port CAN Bus Converter (RoHS)

Optional Accessories

CA-USB15	1.5M USB 2.0 A-Male to B-Male 28/24 AWG Cable w/Ferrite Core
SG-770	7/14 channel Surge Protector
4PCD-002	EMI Ferrite Split/Snap-On Core
