I-7565M-FD ~ NEW ~

USB to 2-port CAN/CAN FD Bus Converter

I-7565M-FD is a USB to CAN/CAN FD (CAN with Flexible Data-Rate) converter with two CAN channels. It allows transmitting/receiving CAN/CAN FD frames and supports CAN2.0A/2.0B and CAN FD (ISO/Bosch) specifications and different baud rates for CAN/CAN FD frame. (10 kbps to 1000 kbps for CAN arbitration phase and 100 kbps to 3000 kbps for CAN FD data phase). When connecting I-7565M-FD to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-FD. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.

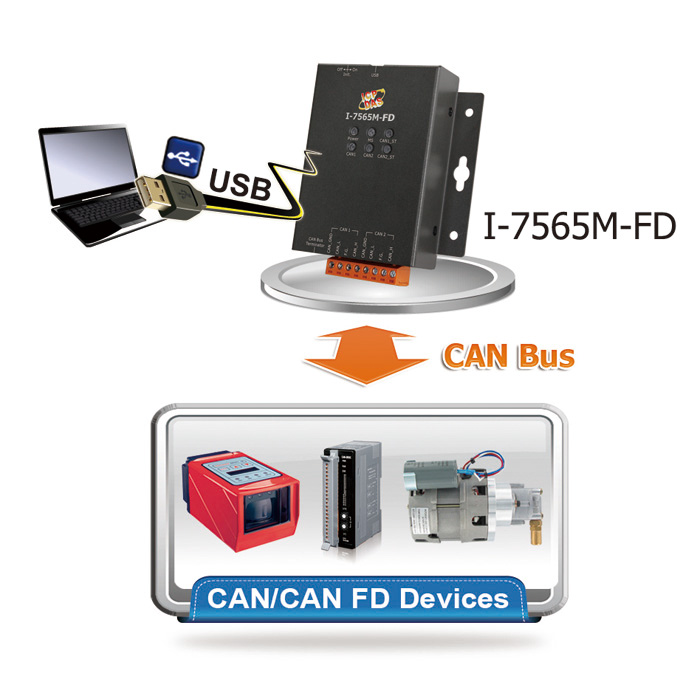

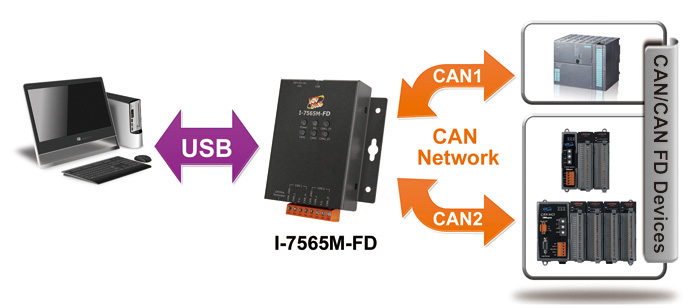

The following is the application structure for the USB to CAN/CAN FD module. The PC can be the CAN host, monitor or HMI to access/control the CAN/CAN FD devices through the CAN network by the I-7565M-FD Converter. The module let users to communicate with CAN/CAN FD devices easily from PC with USB interface.

Applications

Control System
Building Automation
Factory Automation
Monitor System
Vehicle Automation

Features

Compatible with USB 2.0 (High Speed)
Compatible with the ISO 11898-2 standard
Compatible with CAN specification 2.0 A/B and FD
CAN FD support for ISO and Non-ISO (Bosch) standards switchable
CAN FD bit rates for data field from 100 kbps to 3000 kbps
CAN bit rates from 10 kbps to 1000 kbps
Support CAN Bus message filter configuration
Time stamp resolution 1ms.
Voltage supply via USB
Watchdog inside
Provide PWR, CAN Tx/Rx and CAN status indication LEDs
Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
Support firmware update via USB

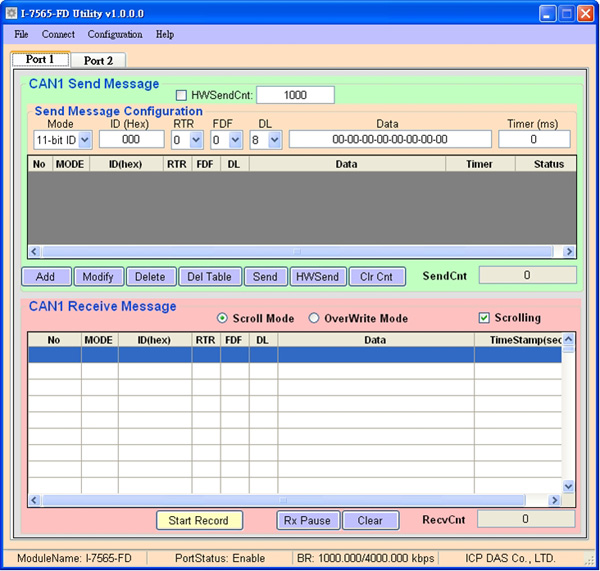

Provide utility tool for users module setting and CAN Bus communication testing conveniently
Provide API library for user program development

Software

Provide CAN Bus baud rate / acceptance filter configuration
Easily transmit/receive CAN/CAN FD messages for testing and display the time-stamp of each received CAN/CAN FD message
Provide saving the CAN/CAN FD message as “TXT” file for data log
Provide sending CAN/CAN FD message by using the internal timer of module for high precision transmission
Check / Reset module status remotely and get current CAN/CAN FD messages flow

Hardware Specifications

CAN Interface
Transceiver	TI TCAN1042HG
Channel Number	2
Connector	8-pin terminal-block connector
Transmission Speed	CAN bit rates: 10 ~ 1000 kbps, CAN FD bit rates for data field: 100 ~ 3000 kbps
Terminal Resistor	DIP switch for the 120 Ω terminal resistor
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Specification	ISO 11898-2, CAN 2.0 A/B and FD
CAN Filter Configuration	Selectable via Utility tool
Receive Buffer	128 data frames
Max Data Flow	3000 fps for Tx/Rx (Total CAN ports)
USB Interface
Connector	USB Type B x 1
Compatibility	USB 2.0 High Speed (480Mbps)
Software Driver	Built-in Windows 7/8.1/10
LED
Round LED	Power, MS, CAN1, CAN2, CAN1_ST, CAN2_ST LEDs
Power
Power supply	USB power delivery
Power Consumption	1.5 W (Max.)
Mechanism
Installation	Wall Mount
Casing	Metal
Dimensions	111.0 mm x 102.0 mm x 27.0 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

Ordering Information

I-7565M-FD CR

USB to 2-port CAN/CAN FD Converter (RoHS)

Optional Accessories

CA-USB15	1.5M USB 2.0 A-Male to B-Male 28/24 AWG Cable w/Ferrite Core
SG-770	7/14 channel Surge Protector
4PCD-002	EMI Ferrite Split/Snap-On Core
