CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The I-7565 is a cost-efficient device for coupling the CAN-bus to the PC using the standard USB interface by the MS-Windows 98, Me, 2000, XP, Win 7 and Win 10 operating systems. If you establish the connection between the I-7565 and the PC during the runtime of the computer, the PC automatically loads the relevant device driver (hot plug & play).
The following figure shows the application architecture for I-7565 modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7565 Converter. This module let you to communicate with CAN devices easily from PC with USB interface.
|
|
 |
|
3000V isolation on CAN side
The CAN port of I-7565 is an isolated with 3000V isolation. This isolation can protect the local devices from the damage signal coming from CAN network.
Watchdog inside
The I-7565 Watchdog is a hardware reset circuit to monitor the I-7565’s operation status. When working in harsh or noisy environment, the I-7565 may be down by the external signal. The circuit may let the I-7565 to work continuously and never halt.
Power and Error indicator display
There are two indicators on the I-7565.The power indicator can help user to check whether the I-7565 is standby or transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7565. |
|
|
|
| Applications |
|
|
|
- Factory Automation
- Building Automation
- Home Automation
- Control System
- Monitor System
- Vehicle Automation
|
 |
|
|
|
|
| Features |
|
|
|
- RoHs Design
- Fully compliant with USB 1.1/2.0(Full Speed)
- Fully compatible with the ISO 11898-2 standard
- No external power supply is required as I-7565 takes it's power from the USB bus
- 82C250 CAN transceiver
- Transmission speed up to 1M bps for CAN and 921.6K bps for USB
- Support both CAN 2.0A and CAN 2.0B
- Built-in jumper to select 120 ohm terminal resister
- Power, data flow and error indicator for CAN and USB
- 1000 frames in CAN received buffer
- Watchdog inside
- Windows 98/ME/2000/XP/Vista/Win 7/Win 10 and Linux drivers support
- Supports a range of baud rates from 10 kbps ~ 1 Mbps
- Able to configure the CAN baud rate for each channel using a rotary switch
- Extends the CAN transmission distance
Note: We have verified to drive 100 CAN nodes at the same time via one CAN port of I-7565. |
|
|
|
| Utility |
|
|
|
-
CAN bus Baud rate configuration
-
CAN acceptance filter configuration
-
CAN2.0A or 2.0B specific selection
-
Checksum and Error Response settings
-
Easy test to transmit/receive CAN messages
|
|
|
|

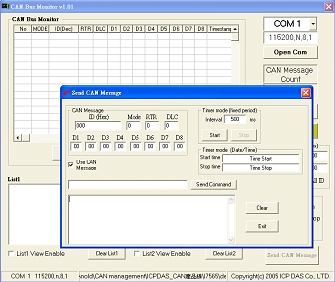

| CAN Monitor & Datalog Tool |
|
|
|
-
It has a CAN message field which can display the receiving CAN messages in Decimal or HEX mode
-
Can display the timestamp of each received CAN message
-
Users can change the display mode, up-down, down-up or stop
-
It can count the number of received CAN messages
-
Data Log : It can save the CAN message as “ txt ” file
-
Has CAN ID filter function
-
Can send CAN message to CAN BUS according the defined interval time
|
|
|
|
| Software |
|
|
|
| Item |
Description |
CAN bus Power Meter |
This is the software solution for the CAN bus power meter(PM-213x-CAN). It is convenient to collect the distributed power information via CAN bus. [more...] |
CAN OPC Server |
This is the OPC server for all the SCADA like LabVIEW, iFix, DASYLab and etc. By using the OPC server, the users be able to control any CAN devices via the famous SCADA. [more...] |
VxCAN Driver |
The VxCAN driver is the virtual CAN driver for all CAN converters and CAN master products. Even using different products, the users could use the same APIs to develop any CAN applications. [more...] |
VxCAN Utility |
The VxCAN Utility, a diagnostic and test software tool, is designed to unleash the power of all CAN products of ICP DAS. It is based on the Virtual CAN technique which creates the virtual CAN ports to match the physical CAN interfaces of the installed products. [more...] |
InduSoft Driver |
The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...] |
CANcheck |
This is the software for diagnosing and testing the user's CAN devices. The graphical interface is ready-made and easy to operate. [more...] |
CAN Test Tool |
The CAN test tool can help users to test the CAN communication of CAN series of ICP DAS by the simple steps. This tool is based on VxCAN driver and supports most of all CAN products of ICP DAS [more...] |
|
|
|
|
| Hardware Specifications |
|
|
|
Hardware |
EEPROM |
2 KB (for system information), 100,000 erase/write cycles |
CAN Interface |
Port Channels |
1 |
Transceiver |
82C250/TJA1042 |
Connector |
9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others) |
Baud Rate |
10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps (allow user-defined CAN baud rate) |
Isolation |
3000 Vrms on the CAN side |
Terminal Resistor |
Selectable 120 Ω terminal resistor by jumper |
Support Protocol |
CAN 2.0A/2.0B |
Receive Buffer |
1000 data frames |
UART Interface |
Connector |
USB Type B |
Baud Rate |
110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps |
Compatibility |
USB 1.1 and 2.0 standard |
Receive Buffer |
900 data frames |
Power |
Power Consumption |
1.5W |
LED |
Round LED |
ON LED: Power and Data Flow; ERR LED: Error |
Mechanism |
Installation |
DIN-Rail |
Dimensions |
72mm x 112mm x 33mm (W x L x H) |
Environment |
Operating Temp. |
-25℃ to 75℃ |
Storage Temp. |
-30℃ to 80℃ |
Humidity |
10~90% non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
Intelligent USB to CAN converter (RoHS) |
|
CA-USB18(1.8M Cable)x1 |
|
|
|
|
| Optional Accessories |
|
|
|
| CNT-CAN |
CAN bus Connector |
| CA-0910-C |
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
| SG-770 |
7/14 channel Surge Protector |
| 4PCD-002 |
EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 |
Field-Installation A-coded 5-pin Female |
|
|
| |
|
