    CAN to Ethernet Gateway

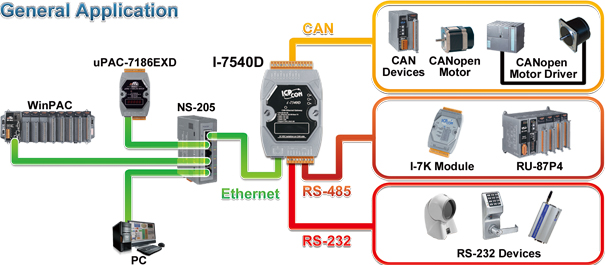

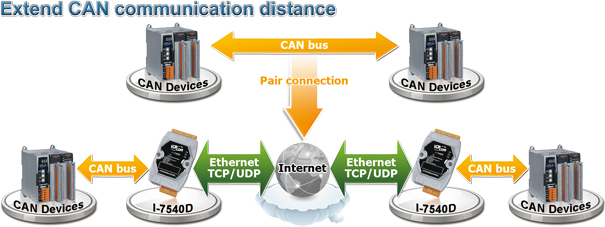

    The I-7540D series are  CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications, which may be based on private RS-232 protocol, private CAN protocol, Modbus protocol, CANopen protocol, DeviceNet protocol or J1939 protocol.






    Applications

    Modern Theater Control( Traditional Chinese)

    Modern Theater Control( English )

    Solar Photovoltaic Generation System( Traditional Chinese)

    Solar Photovoltaic Generation System( English )



    Data Process

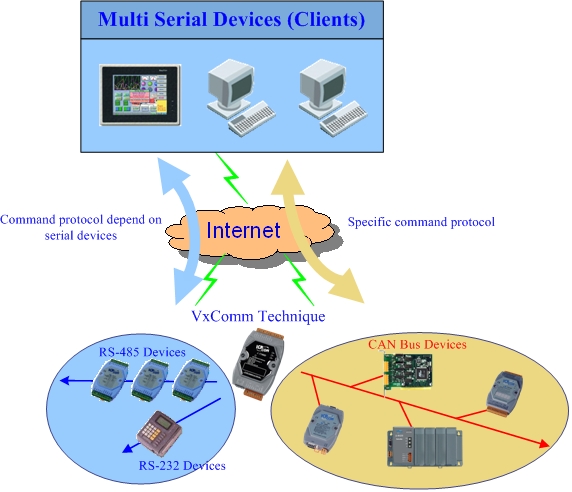

    The VxComm technology can be used to simulate COM/CAN ports of the I-7540D to become a COM port of PC . With the help of VxComm driver, users can access the remote COM/CAN ports of the I-7540 just as them would access the PC's COM port. The block diagram of data processes in I-7540D is given as follows:


    Features
    • 80186-80 Embedded CPU, or compatible
    • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
    • 10/100 Base-TX Ethernet Controller
    • Reloadable Operating Software
    • Message transmitted by using TCP/IP protocol
    • COM driver support interrupt & 1K QUEUE Input & Output buffer
    • Support one RS-232 port, one RS-485 port and one CAN port
    • 2500Vrms photo-isolation protection on CAN side.
    • Jumper select 120Ω terminal resistor for CAN channel
    • Phillip 82C 250/251CAN Transceiver
    • Support both CAN specification 2.0A and 2.0B.
    • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
    • Max transmission distance of CAN over 1000m (follow CAN specification)
    • Built-in self-tuner ASIC controller on RS-485 port
    • 7-segment LED display.
    • Software configurable CAN and RS-232 communication parameters
    • Firmware updated from COM1 or Ethernet port
    • Support Web Configuration
    • Support maximum 25 Ethernet clients connection
    • Support for Virtual COM technology


    Utility
    • IP 、 Gateway 、 Mask configuration
    • CAN bus Baud rate configuration
    • CAN BTR0 and BTR1 configuration
    • CAN acceptance filter configuration
    • CAN 2.0A or 2.0B specific selection
    • Error code Responded selection
    • Easy test to transmit/receive CAN messages


    Software
    Item Description

    CAN bus Power Meter    		 This is the software solution for the CAN bus power meter(PM-213x-CAN). It is convenient to collect the distributed power information via CAN bus. [more...]

    CAN OPC Server    		 This is the OPC server for all the SCADA like LabVIEW, iFix, DASYLab and etc. By using the OPC server, the users be able to control any CAN devices via the famous SCADA. [more...]

    VxCAN Driver    		 The VxCAN driver is the virtual CAN driver for all CAN converters and CAN master products. Even using different products, the users could use the same APIs to develop any CAN applications. [more...]

    VxCAN Utility    		 The VxCAN Utility, a diagnostic and test software tool, is designed to unleash the power of all CAN products of ICP DAS. It is based on the Virtual CAN technique which creates the virtual CAN ports to match the physical CAN interfaces of the installed products. [more...]

    InduSoft Driver     		The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...]

    CANcheck    		 This is the software for diagnosing and testing the user's CAN devices. The graphical interface is ready-made and easy to operate. [more...]

    CAN Test Tool    		 The CAN test tool can help users to test the CAN communication of CAN series of ICP DAS by the simple steps. This tool is based on VxCAN driver and supports most of all CAN products of ICP DAS [more...]


    Performance Test
    This test is the performance which transfer 8 bytes data frame(total 100000 frames) from CAN to Ethernet (one TCP client).
    CAN Spec. Baud Rate 1000K Baud Rate 800K Baud Rate 500K Baud Rate 250K Baud Rate 125K Baud Rate 50K Baud Rate 20K Baud Rate 10K
    CAN2.0A
    FPS(Avg.)     		2244 2237 2106 1483 989 410 174 88
    CAN2.0B
    PFS(Avg.)     		2227 2243 2114 1422 807 357 146 73

    This test is the performance which transfer 8 bytes data frame(total 100000 frames ) from Ethernet to CAN (one TCP client).

    CAN Spec. Baud Rate 1000K Baud Rate 800K Baud Rate 500K Baud Rate 250K Baud Rate 125K Baud Rate 50K Baud Rate 20K Baud Rate 10K
    CAN2.0A
    FPS(Avg.)     		2047 1899 1606 1154 741 380 155 86
    CAN2.0B
    PFS(Avg.)     		1852 1732 1446 1021 643 322 122 72


    Hardware Specifications
    Model Name I-7540D I-7540DM
    Hardware
    EEPROM
    16 KB; Data retention: 40 years; 1,000,000 erase/write cycles
    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    Transceiver
    NXP 82C250/NXP TJA1042
    Channel number
    1
    Connector
    2-pin screwed terminal block (CAN_L, CAN_H)
    Baud Rate (bps)
    10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
    Isolation
    1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminal Resistor
    Jumper for 120 Ω terminal resistor
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    UART Interface
    COM 1
    RS-232
    COM 1 Connector
    5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND )
    COM 2
    RS-485 (Self-turner inside)
    COM 2 Connector
    2-pin screwed terminal block (DATA+, DATA-)
    Baud Rate (bps)
    110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
    Data bit
    7, 8
    Stop bit
    1
    Parity
    None, Even, Odd
    Ethernet Interface
    Controller
    10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
    Connector
    RJ-45 with LED indicator
    Power
    Power supply
    Unregulated +10 ~ +30 VDC
    Protection
    Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption
    2.5 W
    Mechanism
    Installation
    DIN-Rail
    		 Wall Mount
    Dimensions(W x L x H)
    72mm x 122mm x 33mm
    		 102mm x 125mm x 28mm
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Ordering Information
    I-7540D-G CR Internet communication controller with one CAN bus, one RS-232, one RS-485 and one Ethernet (RoHS)
    I-7540DM Internet communication controller with one CAN bus, one RS-232, one RS-485 and one Ethernet (Metal casing)


    Optional Accessories
    PWR-24/110 wall-plug power Adapter/ 110VAC, 60Hz, 3.6W
    PWR-24/220F wall-plug power Adapter/ 220VAC, 50Hz, 3.6W
    CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)
    SG-770 7/14 channel Surge Protector
    4PCD-002 EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68 Field-Installation A-coded 5-pin Female
