I-7530
I-7530T
I-7530FT

Applications
Features
Software Utility Features
CAN Monitor & Datalog Tool
Software
Performance Test
Hardware Specifications
Ordering Information
Optional Accessories


I-7530/
I-7530T I-7530-FT
  • 繁體中文
  • English
  • RS-232 to CAN Converter

    I-7530 I-7530-FT

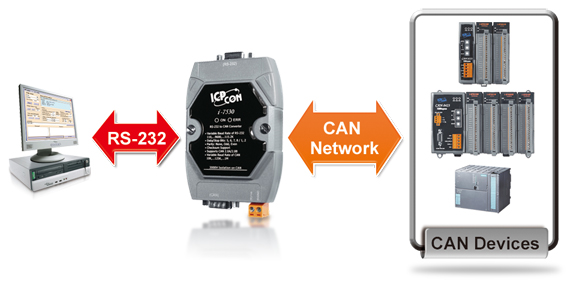

    CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The following figure shows the application architecture for I-7530/I-7530T/I-7530FT modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7530/I-7530T/I-7530FT Converters. The programmable RS-232 device (For example: I-8411/I-8431/I-8811/I-8831/W-8031/W-8331/W-8731 embedded controller) can use the serial port to connect to the CAN network via the I-7530/I-7530T/I-7530FT modules. In order to use the CAN network with traditional RS-232 devices, we provide a way to achieve this purpose. The I-7530/I-7530T/I-7530FT are designed to unleash the power of CAN bus via RS-232 communication method. It accurately converts messages between CAN and RS-232 networks. This module let you to communicate with CAN devices easily from any PC or devices with RS-232 interface.

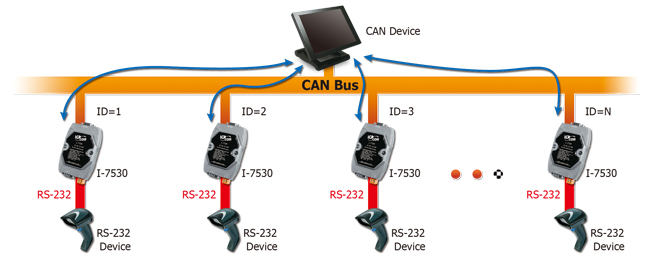

    Moreover, we expand the functionalities of I-7530/I-7530T/I-7530FT for some special application. In pair connection mode, I-7530/I-7530T/I-7530FT can be used to connect PC with other RS-232 devices at the same time. The application architecture may be as follows.




    3000V isolation on CAN side (for I-7530/I-7530T)
    The CAN port of I-7530/I-7530T is an isolated with 3000V isolation. This isolation can protect the local RS-232 devices from the damage signal coming from CAN network.

    Watchdog inside
    The watchdog is a hardware reset circuit to monitor the operation status. When working in harsh or noisy environment, the I-7530/I-7530T/I-7530FT may shut down by the external signal. The circuit may let the I-7530/I-7530T/I-7530FT to work continuously and never halt.

    Power and Error indicator display
    There are two indicators on the I-7530/I-7530T/I-7530FT.The power indicator can help user to check whether the I-7530/I-7530T/I-7530FT is standby or transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7530/I-7530T/I-7530FT.



    Applications
    • Control System
    • Building Automation
    • Factory Automation
    • Distributed data acquisition


    Features
    • Compatible with CAN specification 2.0A and 2.0B
    • Fully compatible with ISO 11898-2 standard (for I-7530/I-7530T)
    • Fully compatible with ISO 11898-3 standard (low speed fault tolerance) (for I-7530-FT)
    • Support various baud rate from 10K bps to 1M bps
    • Jumper for 120 Ω terminal resistor (for I-7530/I-7530T)
    • Software configurable CAN and RS-232 communication parameters
    • Power, data flow and error indicator for CAN and RS-232
    • Watchdog inside
    • Support transparent communication mode
    • 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer
    • Full-duplex communication mode of RS-232 devices is not supported


    Software Utility Features
    • CAN bus Baud rate configuration
    • CAN acceptance filter configuration
    • CAN 2.0A or 2.0B specific selection
    • RS-232 Baud rate and data bit setting
    • RS-232 responded selection
    • Easy test to transmit/receive can messages
    • Setting for I-7530/I-7530T/I-7530FT communication mode (normal mode or pair connection mode)

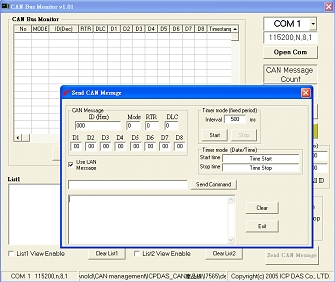

    CAN Monitor & Datalog Tool
    • It has a CAN message field which can display the receiving CAN messages in Decimal or HEX mode
    • Can display the timestamp of each received CAN message
    • Users can change the display mode, up-down, down-up or stop
    • It can count the number of received CAN messages
    • Data Log : It can save the CAN message as “ txt ” file
    • Has CAN ID filter function
    • Can send CAN message to CAN BUS according the defined interval time

    Software Download



    Software
    Item Description

    CAN bus Power Meter
    This is the software solution for the CAN bus power meter(PM-213x-CAN). It is convenient to collect the distributed power information via CAN bus. [more...]

    CAN OPC Server
    This is the OPC server for all the SCADA like LabVIEW, iFix, DASYLab and etc. By using the OPC server, the users be able to control any CAN devices via the famous SCADA. [more...]

    VxCAN Driver
    The VxCAN driver is the virtual CAN driver for all CAN converters and CAN master products. Even using different products, the users could use the same APIs to develop any CAN applications. [more...]

    VxCAN Utility
    The VxCAN Utility, a diagnostic and test software tool, is designed to unleash the power of all CAN products of ICP DAS. It is based on the Virtual CAN technique which creates the virtual CAN ports to match the physical CAN interfaces of the installed products. [more...]

    InduSoft Driver
    The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...]

    CANcheck
    This is the software for diagnosing and testing the user's CAN devices. The graphical interface is ready-made and easy to operate. [more...]

    CAN Test Tool
    The CAN test tool can help users to test the CAN communication of CAN series of ICP DAS by the simple steps. This tool is based on VxCAN driver and supports most of all CAN products of ICP DAS [more...]


    Performance Test
    The test is the performance which transfer 8 bytes data frame from CAN to RS232. (for I-7530/I-7530T)
    CAN setting
    Transfer frames
    Transfer time(ms)
    RS-232 setting
    Receive frames
    Receive time (ms)
    The max frames/sec
    Data<8 byes/frme
    RS232 command length
    2.0A 1Mbps
    1,000
    200
    115200,n,8,1
    1,000
    2954
    338
    >=338
    22 B
    2.0A 1Mbps
    1,000
    200
    115200,n,7,1
    1,000
    2775
    360
    >=360
    22 B
    2.0B 1Mbps
    1,000
    200
    115200,n,8,1
    1,000
    3580
    279
    >=279
    27 B
    2.0B 1Mbps
    1,000
    200
    115200,n,7,1
    1,000
    3337
    299
    >=299
    27 B

    The test is the performance which transfer 8 bytes data frame from RS232 to CAN. (for I-7530/I-7530T)
    CAN setting
    Transfer frames
    Transfer time (ms)
    RS-232 setting
    Receive frames
    Receive time (ms)
    The max frames/sec
    Data<8 byes/frame
    RS232 command length
    2.0A 1Mbps
    1,000,000
    2,612,243
    115200,n,8,1
    1,000,000
    2,612,243
    382
    >=382
    22 B
    2.0A 1Mbps
    1,000,000
    2,441,130
    115200,n,7,1
    1,000,000
    2,441,130
    409
    >=409
    22 B
    2.0B 1Mbps
    1,000,000
    3,142,043
    115200,n,8,1
    1,000,000
    3,142,043
    318
    >=318
    27 B
    2.0B 1Mbps
    1,000,000
    3,142,043
    115200,n,7,1
    1,000,000
    2,966,646
    337
    >=337
    27 B


    Hardware Specifications
    Item
    I-7530
    I-7530T
    I-7530-FT
    Hardware
    EEPROM
    2 KB (for system information), 100,000 erase/write cycles
    CAN Interface
    Transceiver
    NXP 82C250
    NXP TJA1042
    AMIS 41682
    Channel number
    1
    Connector
    9-pin male D-Sub (CAN_L, CAN_H, N/A for others)
    Baud Rate (bps)
    10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps
    (allow user-defined CAN baud rate)
    10 k, 20 k, 50 k, 125 k (allow user-defined CAN baud rate)
    Isolation
    3000 VDC for DC-to-DC,
    2500 Vrms for photo-couple
    NONE
    Terminal Resistor
    Selectable 120Ω terminal resistor by jumper
    1 kΩ for CAN_H and CAN_L
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    ISO-11898-3 (low speed fault tolerance), CAN 2.0A and CAN 2.0B
    Receive Buffer
    1000 data frames
    RS-232 Interface
    Connector
    9-pin female D-Sub (TxD, RxD, GND, N/A for others )
    Baud Rate (bps)
    110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps
    Data bit
    5, 6, 7, 8
    Stop bit
    1, 2
    Parity bit
    None, Even, Odd
    Receive Buffer
    900 data frames
    LED
    Round LED
    ON LED: Power and Data Flow; ERR LED: Error Status
    Power
    Protection
    Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption
    1 W
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    72mm x 118mm x 33mm (W x L x H)
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Ordering Information
    I-7530-G
    Intelligent RS-232 to CAN converter
    I-7530-G CR
    Intelligent RS-232 to CAN converter (RoHS)
    I-7530T-G CR
    Intelligent RS-232 to CAN converter (RoHS)
    I-7530-FT
    Intelligent RS-232/CAN low speed fault tolerant converter
    I-7530-FT CR
    Intelligent RS-232/CAN low speed fault tolerant converter (RoHS)


    Optional Accessories
    CNT-CAN
    CAN bus Connector
    CA-0910-C
    9-pin Female D-sub & 3-wire CAN bus cable (1M)
    SG-770
    7/14 channel Surge Protector
    4PCD-002
    EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68
    Field-Installation A-coded 5-pin Female
