  • Two Standalone Intelligent CAN Communication Board




    A Controller Area Network (CAN) is a serial communication system based on the CAN protocol that enables efficient distributed real-time control combined with a very high level of security. The CAN protocol is especially suited for structuring "intelligent" device networks, as well as for building automatic control environments that contain sensors and actuators within a system or sub-system. In a CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

    The PISO-CM200U is a very powerful and economic solution for an active CAN board, containing two CAN channels that cover a wide range of CAN applications. The 32-bit on-board microcontroller allows the filtering, pre-processing, and storage of CAN messages (with a timestamp), as well as real-time transmission of CAN messages, among many other features.

    An added benefit is that custom CAN Bus applications can be developed using the PISO-CM200U library. When the PISO-CM200U is active, data exchange between the custom application and the CAN Bus firmware is performed via the memory mapping method on the PISO-CM200U.



    Applications


    Features
    • Embedded 32-bit microprocessor
    • NXP 82C250 CAN transceiver
    • Bosch C_CAN controller
    • Supports both CAN 2.0A and CAN 2.0B specifications
    • Storage Timestamp with a precision of at least ±1 ms
    • Board number selectable via DIP switch
    • Dual port RAM communication mechanism
    • Embedded RTC (real time clock)
    • Transmission/reception buffer for up to 256 CAN messages
    • Allows a maximum of 5 sets of cyclic transmission messages
    • Cyclic transmission message precision: ±1ms
    • Easy to update firmware

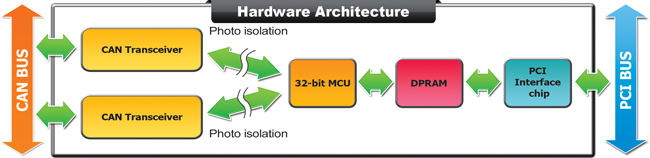

    Hardware Architecture

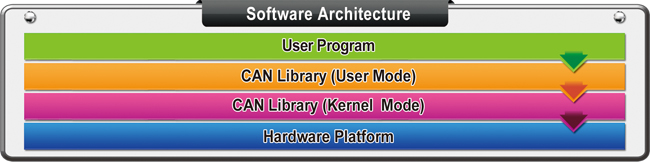

    Software Architecture


    Hardware Specifications
    Model Name PISO-CM200U-D PISO-CM200U-T
    Hardware
    CPU 32-bit MCU
    DPRAM 16 KB
    RTC (Real Time Clock) Yes
    Bus Interface
    Type Universal PCI, 5 V, 33 MHz, 32-bit, plug and play
    Board No. Configurable via DIP switch
    CAN Interface
    Controller Bosch C_CAN
    Transceiver NXP 82C250
    Channel number 2
    Connector 9-pin Male D-Sub 5-pin screw terminal block
    Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (user-defined Baud Rate allowed)
    Isolation

    3000 VDC for DC-to-DC, 3000 Vrms for photo-couple

    Terminal Resistor Jumper for 120 Ω terminal resistor
    LED Indicators/Display
    System LED Indicators Yes, two (round) as Communication Indicators, Rx/Tx, ERR
    Power
    Power Consumption 800 mA @ 5 V
    Software
    Driver Windows XP/7/8.1/10 (32-bit/64-bit) OS
    Library/Demo Languages C#.Net, VB.Net, VC++.Net
    Mechanism
    Dimensions (L x W x D) 150 mm x 121 mm x 22 mm
    Environment
    Operating Temp. 0 to 60℃
    Storage Temp. -20 to 70℃
    Humidity 5 to 85% RH, Non-condensing


    Ordering Information
    PISO-CM200U-D
    Intelligent CAN interface with two Isolated Protection CAN Communication Port and 9-Pin D-sub connector for Universal PCI bus systems
    PISO-CM200U-T
    Intelligent CAN interface with two Isolated Protection CAN Communication Port and 5-Pin Screw Terminal Connector for Universal PCI bus systems


    Optional Accessories
    CNT-CAN
    CAN bus Connector
    CA-0910-C
    9-pin Female D-sub & 3-wire CAN bus cable (1M)
    SG-770
    7/14 channel Surge Protector
    4PCD-002
    EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68
    Field-Installation A-coded 5-pin Female
