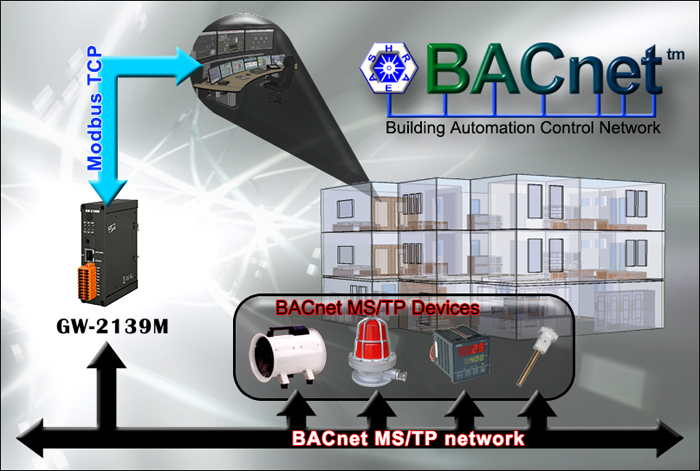

GW-2139M is a network gateway allowing Modbus TCP client devices to be accessed BACnet MS/TP network as a BACnet MS/TP master. The BACnet Master Slave Token Passing (MS/TP) protocol is used to relay and exchange information between building devices. GW-2139M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus TCP registers to any combination of BACnet objects. BACnet interoperability building blocks (DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A) are Supported. All the data transfer is configurable using ICPDAS Utility.
|
|
|
|
| Applications |
|
|
|
- Building Automation
- Heating, Ventilating, and Air-conditioning Control
- Lighting Control
- Access Control
- Fire Detection Systems
|
|
|
|
|
|
| Features |
|
|
|
- Read/Write standard BACnet objects via modbus
- Configurable BACnet MS/TP master
- Configurable Modbus TCP Server
- Simple data translation allows you to manipulate data as it passes between protocols
- Supports BACne AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
- Supports Modbus “coils”, input registers, holding registers ‧BACnet object properties mapping configured via Modbus register
|
|
|
|
| Utility |
|
|
|
- Provide Modbus TCP network configuration interface
- Provide BACnet MS/TP configuration interface
|
|
|
|
| Hardware Specifications |
|
|
|
| Ethernet |
| Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| Connector |
RJ-45 with Ethernet indictor |
| Protocol |
Modbus TCP Server |
| Maximum Connections |
8 |
| RS-485 Interface |
| Connector |
termninal block(D+, D-) |
| Baud Rate (bps) |
9600, 19200, 38400, 76800 |
| Terminator Resistor |
Built-in 120 ohm terminator resistor, enabled/disabled via Jump |
| Isolation |
3 kV VDC for DC to DC, 2500 Vrms for photo couple |
| Protocol |
BACnet MS/TP Master |
| Maximum Connections |
32 |
| BACnet Objects |
AI, AO, AV, BI, BO, BV, MSI, MSO, MSV |
| BIBBs |
DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A |
| Power |
| Protection |
Power reverse polarity protection |
| EMS Protection |
ESD, Surge, EFT |
| Required Supply Voltage |
+10 VDC ~ +30 VDC |
| Power Consumption |
5 W @ 24 VDC |
| LED Indicator |
| LED (Round) |
Power (1), BACnet MS/TP Status (1), BACnet MS/TP Net(1),
Modbus TCP TxD/RxD/Link (3) |
| Ethernet LED |
Ethernet LED Ethernet Status (RJ-45) (2) |
| Mechanism |
| Installation |
DIN-Rail |
| Casing |
Metal |
| Dimensions
(W x L x H) |
33 x 120 x 116 mm |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
BACnet MS/TP to Modbus TCP Gateway |
|
|
| |
|
