CAN-8424 ~NEW~
(I-8420)
DeviceNet Embedded Device with 4 I/O Expansions





DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data.


The CAN-8424 main unit based on the modular design offers many good features to the users and provides more flexibility in data acquisition and control system. In addition, ICP DAS also presents a CAN-8424 Utility tool to allow users to configure and create the EDS file for the specific IO modules plugged in. Therefore, users can easily apply the CAN-8424 embedded controller in DeviceNet network. The application architecture is demonstrated as follows:

  CAN-8424 Utility

CAN-8424 main unit can be plugged in the DCON(/I-8K/I-87K) IO modules to create a customized DeviceNet slave device and application. Before applying the CAN-8424 in DeviceNet applications, users must understand the relationship between these DeviceNet applications and assembly objects within CAN-8424 DeviceNet slave. In order to allow user to easy apply the device on the network, ICP DAS also provides the CAN-8423 Utility tool to configure the IO connection path, assembly and application objects information and create the EDS file of the device.

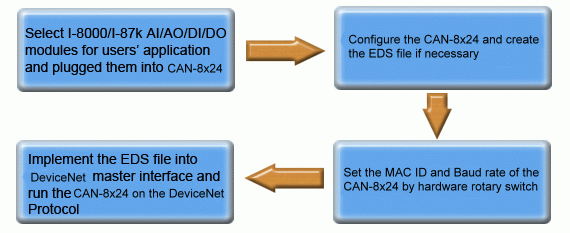

  CAN-8424 Design Flowchart



The following simple steps show how to use CAN-8x24 in the DeviceNet protocol.





  Applications


•Automotive •Food & Beverage•Packaging•High-speed Assembly
•Pulp & Paper•Semiconductor Fabrication•Control System...etc.


  Features

DeviceNet Version
DeviceNet Specification Volume I & II, Release 2.0
Number of Nodes
64(Max)
Baud Rate
125K, 250K, 500K
Support Message Groups
Group 2 only Server
UCMM
Not Support
I/O Operating Modes
Poll, Bit-Strobe, Change of State/ Cyclic
Device Heartbeat Message
ˇ
Device Shutdown Message
ˇ
Produce EDS file Dynamically
ˇ
No. of Fragment I/O
128 Bytes (Max) (Input/ Output)
MAC ID Setting
Rotary Switch
Baud Rate Setting
Rotary Switch
DeviceNet Status LED
NET, MOD, PWR


  Hardware Speicifications

Model
CAN-8424
 CPU
80186, 80MHz
 Flash
512K bytes
 SRAM
    512K bytes
 EERROM
2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)
 NVRAM
32 bytes
 Real Time Clock
16 bit
 Watch Dog Timer
CPU Built-in
 COM1
RS232 (Configuration port)
 CAN Port
5-pin screw terminal connector
 CAN Controller
Phillip SJA1000T
 CAN Transceiver
Phillip 82C250/251
 CAN 2.0A/2.0B Supported
yes
 Isolated
2500Vrms on CAN side
 Terminal Resister
120 ohm terminal resister selected by jumper
 Transfer Rate
up to 1Mbps
 I/O Expasion Slot
4 slots
 Power Supply
20W unregulated +10VDC to +30Vdc
 Operating Temp
-25C to 75C
 Storage Temp
-30C to 85C
 Humidity
5 ~ 95%
Dimensions
188x132x91 mm

  Modules Support





  Ordering Information



 CAN-8424 (I-8420)
DeviceNet Embedded Device with 4 empty slots
