PCI-1202LU/PCI-1202HU
PCI-1202LU : 32-ch, 12-bit, 110 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO)
PCI-1202HU : 32-ch, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (1 K word FIFO)
(The suffix-U : Universal PCI Card.) |
|
Model: PCI-1202LU/PCI-1202HU |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The PCI-1202 series is a family of high performance data acquisition board. It features a continuous, 110 kHz for low gain (40 kHz for high gain), gap-free data acquisition under DOS. The PCI-1202 family has the same hardware architecture as PCI-1802, and provides 32-channel single-ended or 16-channel differential analog inputs. Like the PCI-1802 family, the PCI-1202 series features " Magic Scan" function, M-function, X-function, and Continuous Capture function.
The PCI-1202LU/HU Universal PCI card supports both 5 V and 3.3 V, while the PCI-1202L/H PCI card supports 5 V PCI bus only. The PCI-1202LU/HU (Universal PCI version) is fully compatible with the PCI-1202L/H (PCI version). Compared with the PCI version cards, the PCI-1202LU/HU add new designs of D/I pull-high/low and Card-ID switch. The PCI-1202LU/HU cards are designed as drop-in replacements for the PCI-1202L/H cards for RoHS reason, in other words, the PCI version PCI-1202 card can be replaced with the Universal PCI version one without software modification.
The PCI-1202LU/8K cards are equipped with 8 K samples hardware FIFO that reduces data overflow issues under multi-tasking environment like Windows and Linux.
The PCI-1202LU/HU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.
ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model). |
|
|
|
|
|
|
ICP DAS PC-Based Multifunction Board Selection Guide |
Model Name |
D/A Channel |
A/D Channel |
A/D Sampling Rate |
FIFO Size |
Software Trigger (Polling) |
Pacer Scan (Magicscan) |
Post-trigger
Pre-trigger
Middle-trigger |
Interrupt function |
|
PCI-1202LU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
110 kS./s |
1 k |
V |
V |
V |
- |
|
PCI-1202HU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
PCI-1602U |
12-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
100 kS./s |
8 k |
V |
V |
V |
- |
|
PCI-1602FU |
12-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
200 kS./s |
8 k |
V |
V |
V |
- |
|
PCI-1800LU |
12-bit, 2-ch |
12-bit, 16 S.E/8 Diff |
330 kS./s |
1 k |
V |
V |
V |
- |
|
PCI-1800HU |
12-bit, 2-ch |
12-bit, 16 S.E/8 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
PCI-1802LU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
330 kS./s |
8 k |
V |
V |
V |
- |
|
PCI-1802HU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
44 kS./s |
8 k |
V |
V |
V |
- |
|
PCI-822LU |
16-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective Programmable DIO |
PCI-826LU |
16-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective Programmable DIO |
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- 12-bit 110 kHz A/D converter
- 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
- The total sampling rate is 110 K samples/s for low gain model and 40 K samples/s for high gain model.
- Three external triggers: post-trigger, pre-trigger, middle-trigger
- 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate.
- PCI-1202L/LU provides programmable low gain: 0.5, 1, 2, 4, 8.
- PCI-1202H/HU provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
- Internal / external trigger.
- Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)
[PCI-1202L/H only]
PCI card, supports 5V PCI bus.
[PCI-1202LU/HU only] - Universal PCI card, supports both 5 V and 3.3 V PCI bus.
- Digital input port can be set to pull-high or pull-low.
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- High speed data acquisition system
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Model Name |
PCI-1202L |
PCI-1202H |
PCI-1202LU |
PCI-1202HU |
Analog Input |
Channels |
32 single-ended / 16 differential |
A/D Converter |
12-bit, 8.5 £gs conversion time |
Sampling Rate |
110 kS/s. max. |
FIFO Size |
1024 samples |
Over voltage Protection |
Continuous +/-35 Vp-p |
Input Impedance |
10 M£[/6 pF |
Trigger Modes |
Software, Internal programmable pacer, External (5 V/TTL compatible) |
Data Transfer |
Polling |
Accuracy |
0.01 % of FSR ¡Ó1 LSB @ 25 ¢XC, ¡Ó 10 V |
Zero Drift |
+/- 4 ppm/¢XC of FSR |
Analog Output |
Channels |
2 |
Resolution |
12-bit |
Accuracy |
0.06% of FSR ¡Ó 1 LSB @ 25 ¢XC, ¡Ó 10 V |
Output Range |
DC:600 mA/+30 V for one channel @ 100% duty |
Output Driving |
+/- 5 mA |
Slew Rate |
8.33 V/£gs |
Output Impedance |
0.1 £[ max. |
Operating Mode |
Software |
Digital Input |
Channels |
16 |
Compatibility |
5 V/TTL |
Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
Response Speed |
2.7 MHz (Typical) |
Digital Output |
Channels |
16 |
Compatibility |
5 V/TTL |
Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
Response Speed |
2.7 MHz (Typical) |
Timer/Counter |
Channels |
3(Independent x 1/Internal pacer x 1/External pacer x 1) |
Resolution |
16-bit |
Compatibility |
5 V/TTL |
Input Frequency |
10 MHz max. |
Reference Clock |
Internal: 8 MHz |
General |
Bus Type |
5 V PCI, 32-bit, 33 MHz |
3.3 V/ 5 V Universal PCI, 32-bit, 33 MHz |
Data Bus |
16-bit |
Card ID |
No |
Yes(4-bit) for Version 4.0 or above |

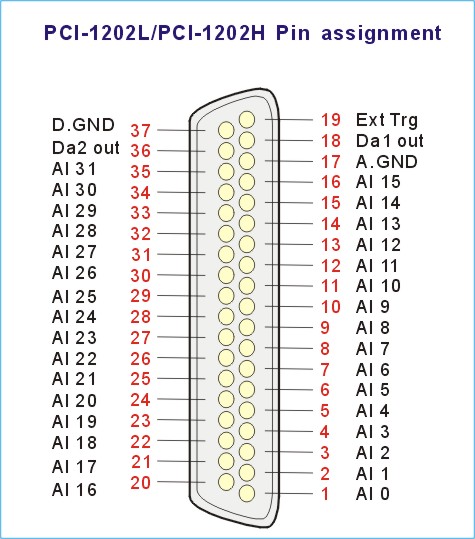

I/O Connector |
Female DB37 x 1
Male 20-bit ribbon x 2 |
Dimensions (L x W x D) |
196 mm x 105 mm x 22 mm |
Power Consumption |
300 mA @ +5 V |
Operating Temperature |
0 ~ 60 ¢XC |
Storage Temperature |
-20 ~ 70 ¢XC |
Humidity |
5 ~ 85% RH, non-condensing |
|
Model |
PCI-1202 L /PCI-1202 LU (Low-Gain) |
Gain |
0.5 |
1 |
2 |
4 |
8 |
Unipolar |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
Bipolar |
- |
0 ~ 10 |
0 ~ 5 |
0 ~ 2.5 |
0 ~ 1.25 |
Sampling Rate Max. |
110 |
110 |
110 |
110 |
110 |
|
Model |
PCI-1202 H / PCI-1202 HU (High-Gain) |
Gain |
0.5 |
1 |
5 |
10 |
50 |
100 |
500 |
1000 |
Unipolar |
+/- 10 |
+/- 5 |
+/- 1 |
+/- 0.5 |
+/- 0.1 |
+/- 0.05 |
+/- 0.01 |
+/- 0.005 |
Bipolar |
- |
0 ~ 10 |
- |
0 ~1 |
- |
0 ~ 0.1 |
- |
0 ~ 0.01 |
Sampling Rate Max. |
44 |
44 |
44 |
44 |
10 |
10 |
1 |
1 |
|
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Universal PCI Version |
PCI-1202HU CR |
32-ch, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (1 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector. |
PCI-1202LU CR |
32-ch, 12-bit, 110 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector. |
PCI-1202HU/8K CR |
32-ch, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (8 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector. |
PCI-1202LU/8K CR |
32-ch, 12-bit, 110 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector. |
OEM Version |
PCI-1202HU/S CR |
PCI-1202HU with DB-1825 daughter board , Cable (RoHS)
Includes one CA-3710 D-Sub cable. |
PCI-1202LU/S CR |
PCI-1202LU with DB-1825 daughter board , Cable (RoHS)
Includes one CA-3710 D-Sub cable. |
PCI Version |
PCI-1202H |
32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board (1K word FIFO) |
PCI-1202L |
32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board (1K word FIFO) |
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
ADP-20/PCI |
Extender, Extended dual 20-pin flat-cable connector to PC slot window |
CA-2002 |
20-pin flat cable, 20 cm x 2 |
CA-2010 |
20-pin flat cable,1 M |
CA-2020 |
20-pin flat cable 2 M. |
CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-4002 |
37-pin Male D-sub connector with plastic cover. |
DB-1825 |
Analog input screw terminal board |
DB-16P |
Isolated digital input daughter board |
DB-16R |
Relay output daughter board |
DN-20 |
20-pin DIN-RAIL mounting I/O connector board |
DN-37 |
D-sub 37-pin DIN-Rail mounting I/O connector board |
|
|
|
|
|
|
|
|
|
|
|
