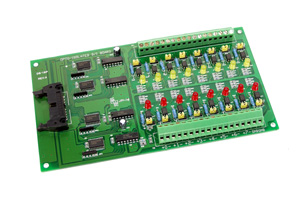

DB-16P
16-channel Bi-direction Isolated Input Board |
|
|
|
|
|
| |
|
|
| |
|
|
| |
The DB-16P is a 16 channel isolated digital input daughter board forA-82X board or any 812pg,711 726 , 720 series board, and PCI-Bus Multi-function board.
The optically isolated inputs of the DB-16P consists of a bi-directional OPTO-coupler with a resistor for current sensing. You can use
the DB-16P to sense DC signal from TTL levels up to 24V. You can also use DB-16P to sense a wide range of AC signals. You can use the board to isolated the computer from large common-mode voltages, ground loops and voltage spikes that often occur in industrial environments. |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- 16 optically isolated digital input channels Connects directly to A-82X board or any 812pg,711 series board or 720 ,726 series board and PCI Bus Multi-function Board
- 1AC/DC signal Input
- 1AC signal input with filter
- 1Input buffer with voltage compactors
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- I/O connector Electrical Specifications:
- Configuration : 6 optically isolated digital input channels
- Compatibility : TTL compatible
- Digital Input :
Number of channels :16,each with it's own ground reference isolated from other channels
- Maximum input voltage: 24 VDC or 24 VAC
- Digital Logic level :
Input Low voltage : 0V(min) ~ +/-1V (Max)
Input High voltage: +-2.8V(Vrms) ~ +/- 24V(Max)
- Input impedance: 1.2k
- Source Current:
5V inputs : 4 ma/channel minimum
24V inputs : 20 ma/channel minimum
- Response Time :20ms without filter / 2.2ms with filter
- Power Supplies : +5V@224mA/ maximum
- Dimension : 205mm x 114 mm
- Operating Temperature : 0 -60°C
- Storage Temperature :-20-70°C
- Humidity : 5% to 90 % noncondensing
- Power Consumption : 12V /0.53V ; 5V / 0.2A
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Isolated digital input sensing
- Energy management
- Test Automation
- Process Control
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| DB-16P |
16-channel Bi-direction Isolated Input Board; Include : CA-2010 (20-pin Flat Cable 1m) |
| DB-16P CR |
16-channel Bi-direction Isolated Input Board; Include : CA-2010 (20-pin Flat Cable 1m) (RoHS) |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
|
| |
|
|
