ICP DAS NEW Products: PCI-1002LU/PCI-1002HU

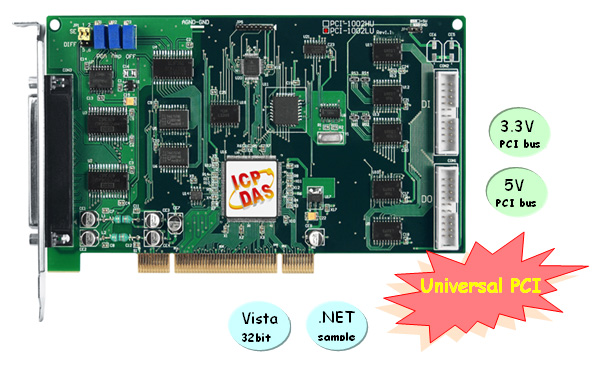

PCI-1002LU: Universal PCI, 32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board
PCI-1002HU: Universal PCI, 32-ch, 12-bit, 44KS/s High Gain Multi-function DAQ Board |
|
|
|
|
|
 |
|
|
Introduction:
PCI-1002LU/HU (Universal PCI) is the new generation product that ICP DAS provides to meet RoHS compliance. The new PCI-1002LU/HU cards are totally compatible to PCI-1002L/H, they both have the same features and interfaces. Users could simply and quickly have a RoHS solution without modifying program.
The PCI-1002LU/HU cards are designed as direct replacements for the PCI-1002L/H.
The PCI-1002LU/HU series is a family of A/D board for PC with PCI bus. It features a 110KHz for low gain model (44KHz for high gain model)data acquisition under DOS and Windows. The PCI-1002LU/HU provide 32 single-ended or 16 differential inputs, 16 digital input and digital output channels. The -H means high gain model and the -L means low gain model. The PCI-1002LU/HU supports software on windows 98/NT/2K/XP 32-bit/2003 32-bit/Vista 32-bit and then sample for Visual C++, BC++ Builder, Visual BASIC, C#.NET, VB.NET , Delphi and LabVIEW.
The PCI-1002LU/HU Universal PCI card supports both 5V and 3.3V, while the PCI-1002L/H PCI card supports 5V PCI bus only. The PCI-1002LU/HU (Universal PCI version) is fully compatible with the PCI-1002L/H (PCI version). |
|
|
|
|
|
| Selection Guide |
| PCI-1002LU Input Range (Low Gain) |
PCI-1002HU Input Range (High Gain) |
| Bipolar: +/-10V,+/-5V,+/-2.5V,+/-1.25 V |
Bipolar: +/-10V,+/-1V,+/-0.1V,+/-0.01V |
| Gain |
Bipolar |
Sampling rate |
Gain |
Bipolar |
Sampling rate |
| 1 |
¡Ó10V |
110K/s |
1 |
¡Ó10V |
44K/s |
| 2 |
¡Ó5V |
110K/s |
10 |
¡Ó1V |
36K/s |
| 4 |
¡Ó2.5V |
110K/s |
100 |
¡Ó0.1V |
7K/s |
| 8 |
¡Ó1.25V |
110K/s |
1000 |
¡Ó0.01V |
0.8K/s |
| Digital I/O |
Timer |
| Input |
16-channel TTL levels |
Internal Pacer timer |
16-bit , 8Mhz input |
| Output |
16-channel TTL levels |
External Pacer timer |
16-bit , 8Mhz input |
|
|
|
|
|
|
Features:
- Supports system on windows 98/NT/2K/XP 32-bit/2003 32-bit/Vista 32-bit.
- 12bit resolution, 110KHz conversion sample rate AD converter.
- 32 single-ended/ 16 differential inputs.
- The sampling rates of single channel or multiple channels is 110K samples/s for low gain model and 44k samples/s for high gain model.
- 16 digital input / 16 digital output channels.
- 1002LU: programmable low gain: 1, 2, 4, 8.
- 1002HU: programmable high gain: 1, 10, 100, 1000.
- Universal PCI card, supports both 5V and 3.3V PCI bus.
- Digital input port can be set to pull-high or pull-low.
- Internal / external trigger.
- Half size board.
|
|
|
|
|
|
More information, please refer to...
http://www.icpdas.com/products/DAQ/pc_based/pci_1002.htm |
|
|
|
|
|
|
|
|
|
|
|
End of Life Notification for PCI-1002L/H product |
|
|
|
|
|
For the RoHS reason, the PCI-1002L/H production will be discontinued soon.
The new PCI-1002LU/HU cards are designed as direct replacements for PCI-1002L/H cards. The new cards also have improvements in supports 3.3V and 5V PCI bus.
More information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pci_1002.htm |
|
|
|
|
|
|
 |
|
|
| |
