PCI-1002H/PCI-1002L/PCI-1002HU/PCI-1002LU
PCI-1002H : 32-ch, 12-bit, 44KS/s High GainMulti-function DAQ Board
PCI-1002L : 32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board
PCI-1002LU: Universal PCI, 32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board
PCI-1002HU: Universal PCI, 32-ch, 12-bit, 44KS/s High Gain Multi-function DAQ Board |
| Will be phased out |
 |
| |
|
| ~NEW~
|
 |
| |
|

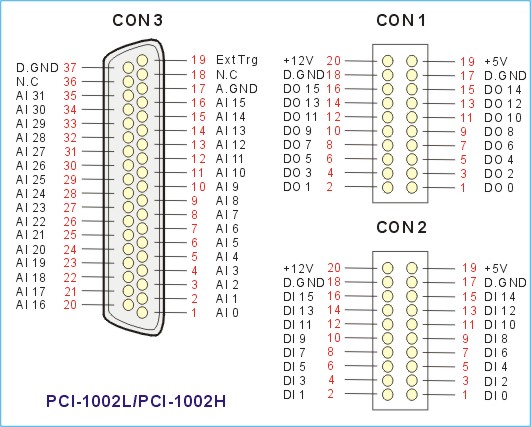

| Model: PCI-1002L/PCI-1002H |
Model: PCI-1002LU/PCI-1002HU |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
PCI-1002LU/HU (Universal PCI) is the new generation product that ICPDAS provides to meet RoHS compliance. The new PCI-1002LU/HU cards are totally compatible to PCI-1002L/H, they both have the same features and interfaces. Users could simply and quickly have a RoHS solution without modifying program.
The PCI-1002LU/HU cards are designed as direct replacements for the PCI-1002L/H.
The PCI-1002 series is a family of A/D board for PC with PCI bus. It features a 110KHz for low gain model (44KHz for high gainmodel) data acquisition under DOS and Windows The PCI-1002H/L , PCI-1002HU/LU provide 32 single-ended or 16 differential inputs, 16 digital input and digital output channels. The -H means high gain model and the -L means low gain model. The PCI-1002 series provides three flexible external trigger mode, pre-trigger, post-trigger and external pacer trigger.
The PCI-1002LU/HU Universal PCI card supports both 5V and 3.3V, while the PCI-1002L/H PCI card supports 5V PCI bus only. The PCI-1002LU/HU (Universal PCI version) is fully compatible with the PCI-1002L/H (PCI version). |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- PCI bus (v2.1), 33MHz 5V 32-bit.
- Supports system on windows 98/NT/2K/XP 32-bit/2003 32-bit/Vista 32-bit.
- 12bit resolution, 110KHz conversion sample rate AD converter.
- PCI-1002H/L,PCI-1002HU/LU ,32 single-ended/ 16 differential inputs
- The sampling rates of single channel or multiple channels is 110K samples/s for low gain model and 44k samples/s for high gain model.
- Three different external trigger: pre-trigger, post-trigger and external pacer trigger.
- 16 digital input / 16 digital output channels
- 1002L / 1002LU : programmable low gain:1, 2, 4, 8.
- 1002H / 1002HU: programmable high gain:1, 10, 100, 1000.
- Internal / external trigger.
- Half size board
[PCI-1002LU/HU only]
- Universal PCI card, supports both 5V and 3.3V PCI bus.
- Digital input port can be set to pull-high or pull-low.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Laboratory automation
- Production test
- Sensor interface
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
|
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Analog Input Specifications |
| |
PCI-1002L |
PCI-1002LU |
PCI-1002H |
PCI-1002HU |
| Interface |
PCI bus |
Universal PCI |
PCI bus |
Universal PCI |
| Input channel |
32 S.E./ 16 Diff |
32
S.E./ 16 Diff |
| Resolution |
12-bit |
12-bit |
| ADC Conversion rate |
110KS/s |
110KS/s |
| Sampling rate |
110KS/s |
44KS/s |
| Input Impedance |
10,000M Ohm // 6pF |
10,000M Ohm // 6pF |
| Over voltage protection |
+/- 35V |
+/- 35V |
| Accuracy |
0.01 % of reading , +/- 1-bit |
0.01 % of reading , +/- 1-bit |
| On chip Sample & Hold |
Yes |
Yes |
|
| PCI-1002L/PCI-1002LU Input Range (Low Gain) |
| Bipolar: +/-10V,+/-5V,+/-2.5V,+/-1.25 V |
| Gain |
Bipolar |
Sampling rate |
1 |
¡Ó10V |
110K/s |
2 |
¡Ó5V |
110K/s |
4 |
¡Ó2.5V |
110K/s |
8 |
¡Ó1.25V |
110K/s |
|
| PCI-1002H/PCI-1002HU Input Range (High Gain) |
| Bipolar: +/-10V,+/-1V,+/-0.1V,+/-0.01V |
Gain |
Bipolar |
Sampling rate |
1 |
¡Ó10V |
44K/s |
10 |
¡Ó1 |
36K/s |
100 |
¡Ó0.1V |
7K/s |
1000 |
¡Ó0.01V |
0.8K/s |
|
| Digital I/O |
|
16-channel TTL levels |
Output |
16-channel TTL levels |
|
| Timer |
Internal Pacer timer |
16-bit , 8Mhz input |
External Pacer timer |
16-bit , 8Mhz input |
|
|
| Power |
|
|
| Environmental |
Operating temperature |
0~50¢XC |
Storage temperature |
-20~70¢XC |
Humidity |
0 to 90% non-condensing |
| Dimensions |
PCI-1002H/L Dimensions |
175 mm x 105 mm |
PCI-1002HU/LU Dimensions |
188mm X 105mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PCI-1002H |
32-ch, 12-bit, 44KS/s High Gain Multi-function DAQ Board
Includes one CA-4002 D-Sub connector. |
| PCI-1002H/S |
PCI-1002H with DB-1825 daughter board , Cable
Includes one CA-3710 D-Sub cable. |
| PCI-1002L |
32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board
Includes one CA-4002 D-Sub connector. |
| PCI-1002L/S |
PCI-1002L with DB-1825 daughter board , Cable
Includes one CA-3710 D-Sub cable. |
| Universal PCI Version |
| PCI-1002HU CR |
Universal PCI, 32-ch, 12-bit, 44KS/s High Gain Multi-function DAQ Board (RoHS)
Includes one CA-4002 D-Sub connector. |
| PCI-1002HU/S CR |
Universal PCI, PCI-1002HU with DB-1825 daughter board , Cable (RoHS)
Includes one CA-3710 D-Sub cable. |
| PCI-1002LU CR |
Universal PCI, 32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board (RoHS)
Includes one CA-4002 D-Sub connector. |
| PCI-1002LU/S CR |
Universal PCI, 32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board (RoHS)
Includes one CA-3710 D-Sub cable. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-2002 |
20-pin flat cable,20cm x 2 |
| CA-2010 |
20-pin flat cable,1m |
| CA-2020 |
20-pin flat cable 2m |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(45¢X)) |
| DB-1825 |
Screw terminal board with
bread area |
| DB-16P |
16-channel isolated digital
input board |
| DB-16R |
16-channel SPDT relay board |
| DN-20 / DN-20-381 |
20-pin Din-Rail mounting I/O connector board |
|
|
|
|
| |
|
|
|
|
|
| |
