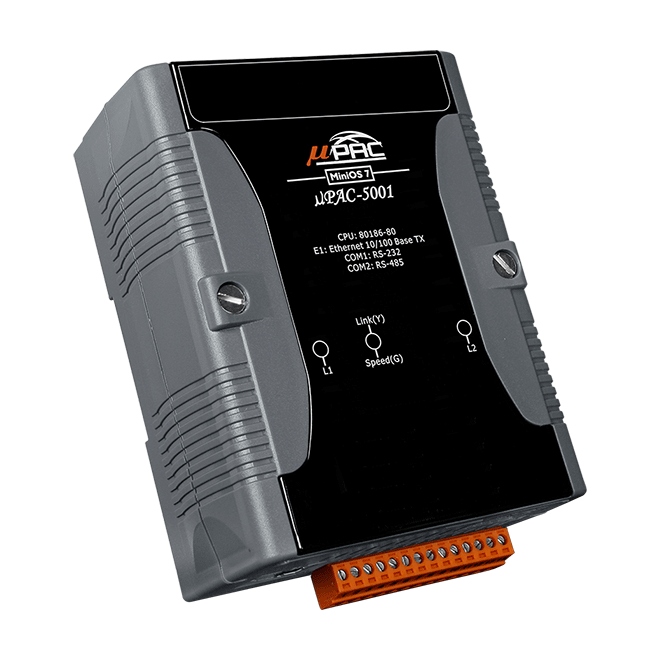

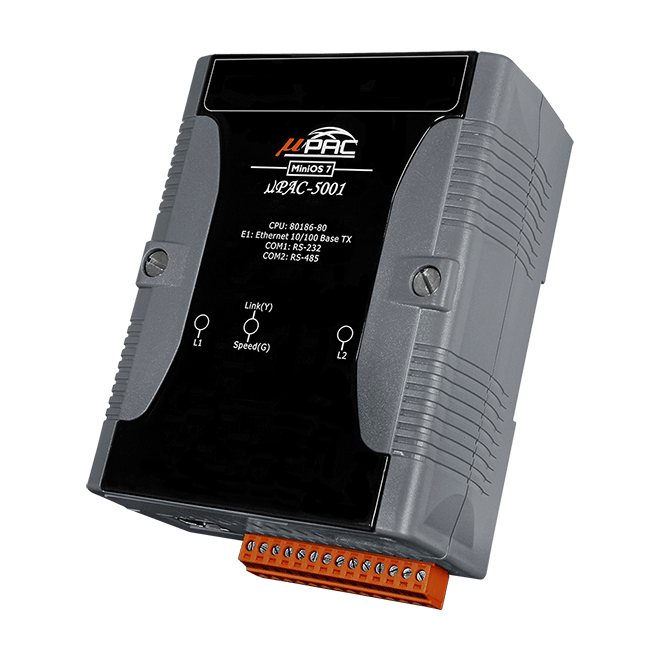

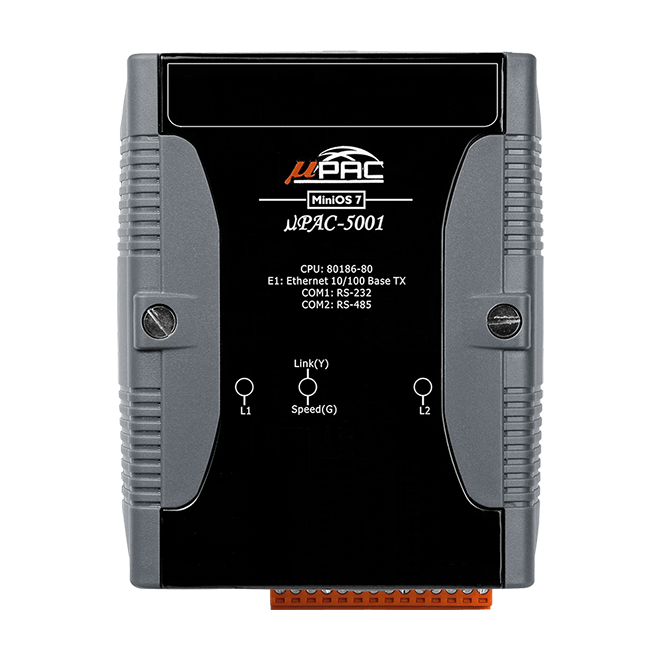

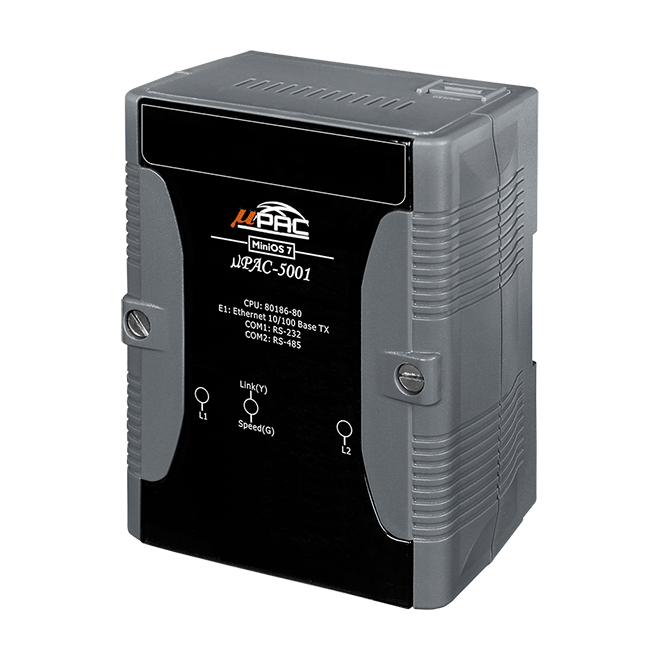

uPAC-5001

Ethernet PAC with 80186-80 CPU and MiniOS7
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001
uPAC-5001

Features

  • Built-in High Performance MiniOS7 from ICP DAS
  • Easy-to-use Software Development Tool Kits (Using C language)
  • Various Storage Media
  • Various Communication Interfaces
    • 10/100 Base-TX Ethernet
    • RS-232/RS-485
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus Interface
  • Programmable LED Indicator
  • Redundant Power Inputs
  • Build-in Watchdog Timer
CE FCC RoHS WEEE

Introduction

The uPAC-5001 is a programmable automation controller with RS-232/485 and Ethernet communication interfaces. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-5001 also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. There are more than 10 boards available for uPAC-5000 series, you can choose one of them to expand hardware features.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES uPAC-5001     CR DESCRIPTIONEthernet PAC with 80186-80 CPU and MiniOS7 (RoHS)
This combination include other products.

Similar Products

Software
OS MiniOS7
Development C Language
CPU Module
CPU 80186, 80 MHz
64-bit Hardware Serial Number Yes
EEPROM 16 KB
Flash 512 KB
NVRAM 31 Bytes
SRAM 512 KB
Storage Expansion Yes, support up 32 GB microSD card
Real Time Clock Provide seconds, minutes, hours, day of week, month, year
Watchdog Timer Yes
LED Indicators
Status 2 x Programmable
I/O Expansion
I/O Type XW-board
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
COM Ports
Ports 1 x RS-232, 1 x RS-485
Baud Rate 115200 bps Max.
Power
Input Range +12 ~ 48 VDC
Redundant Power Inputs Yes
Consumption 2.0 W
Mechanical
Dimensions (mm) 91 x 123 x 52 (W x H x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing
