iXN-0VC
iWSN CO2e/TVOC sensing module
Features
- Supports CO2e/TVOC measurement
- Measurement Ranges
CO2e: 400 ppm to 60000 ppm
TVOC: 0 ppb to 60000 ppb
TVOC: 0 ppb to 60000 ppb
- Powered by iWSN sensing module
- Offers wall-mount mechanism and magnet for installation
Introduction
In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iiXN-0VC is developed to connect to the iWSN environmental sensing module, it can offer CO2e and TVOC measurement function. The iXN-0VC is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-0VC provides wall-mount mechanism and magnet adsorption for installation.
Applications

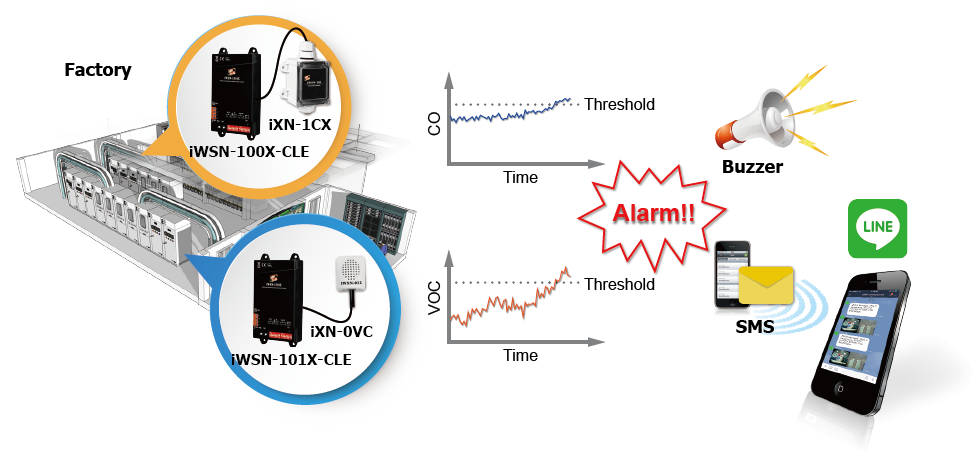

Factory environmental monitoring system.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CO2e Measurement | |
|---|---|
| Rnge | 400 ppm to 60000 ppm |
| Resolution | 1 ppm (400 ppm~ 1479 ppm) 3 ppm (1479 ppm~ 5144 ppm) 9 ppm (5144 ppm~ 17597 ppm) 31 ppm (17597 ppm~ 60000 ppm) |
| TVOC Measurement | |
|---|---|
| Range | 0 ppb to 60000 ppb |
| Resolution | 1 ppb (0 ppb~ 2008 ppb) 6 ppb (2008 ppb~ 11110 ppb) 32 ppb (11110 ppb~ 60000 ppb) |
| Power | |
|---|---|
| Consumption | 0.16W |
| Input Type | iWSN environmental sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 x 30 x 20.2 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Cable Length | 27 cm |
| Environment | |
|---|---|
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
