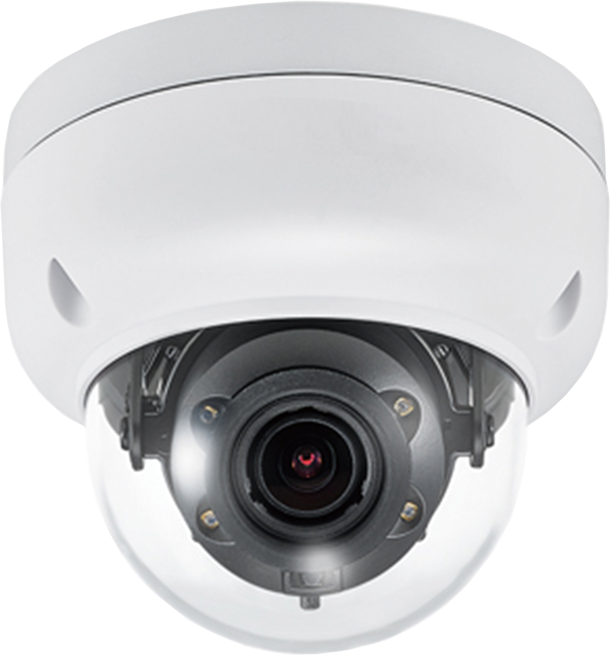

iCAM-MR6422X
Vari-Focal IR Dome IP Camera, with 2MP and IP67
Features
• Full HD 2 megapixel CMOS image sensor
• 1080P True H.264 AVC High Profile video compression
• H.264 and Motion JPEG multi-profile video streaming
• Smart H.264 supported
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 100dB
• High-efficiency IR LED, radiant distance up to 30m
• Day & Night (IR cut removable)
• ONVIF Profile S supported
• IP67 rain and dust resistant
• Built-in 802.3af Compliant PoE
• 1080P True H.264 AVC High Profile video compression
• H.264 and Motion JPEG multi-profile video streaming
• Smart H.264 supported
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 100dB
• High-efficiency IR LED, radiant distance up to 30m
• Day & Night (IR cut removable)
• ONVIF Profile S supported
• IP67 rain and dust resistant
• Built-in 802.3af Compliant PoE
Introduction
iCAM-MR6422X is an HD 30M-Range IR Varifocal Dome IP Camera in the M series features 1080p at 30 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing intelligent image signal processing, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The support of PoE, privacy masking, white balance, as well as the minimum illumination 0.117 Lux at F1.4 can certainly satisfy multiple applications.
Applications
Click to view the WISE Surveillance Solution With iCAM Camera.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Alarm and Event | |
|---|---|
| Alarm Events | Files uploaded via HTTP, SMTP, FTP |
| Alarm Triggers | Motion Detection, Tampering Detection, Advanced Motion Detection |
| Camera | |
|---|---|
| Aperture | F1.4 |
| Field of View | 102° - 34° |
| Image Sensor | 1/2.7”, CMOS |
| Lens | 2.8 ~12 mm |
| Max. Resolution | 1920 x 1080, 2MP |
| Video | |
|---|---|
| Streams | 4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Mbps Base-T |
| PoE | Yes |
| Protocol | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profi le S, SDDP, Bonjour, 802.1x, SSL/TLS |
| ONVIF | Profile S |
| Power | |
|---|---|
| Consumption | DC12V, 5.4W PoE, 7W |
| Powered from PoE | Yes |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | Ø 120 × 106 mm |
| Ingress Protection Rating | IP67 |
| Environment | |
|---|---|
| Operating Temperature | -40°C – +50°C (-40°F – 122°F) |
| Humidity | 10% ~ 90% |
