WISE Surveillance Solution With iCAM Camera
A general surveillance system on current market usually features separated systems: the camera DVR/NVR as a system, and the I/O monitoring as another system; each system operates independently. For now the DVR/NVR system of the camera usually records video for 24H/7Day without interruption, it requires huge storage space and sufficient network bandwidth; therefore the system implementation fee is usually high. In addition, when playback a certain video, it does not allow to search the suspicious activities of related I/O (temperature, doors and windows switch, water level, etc.) at the same time.

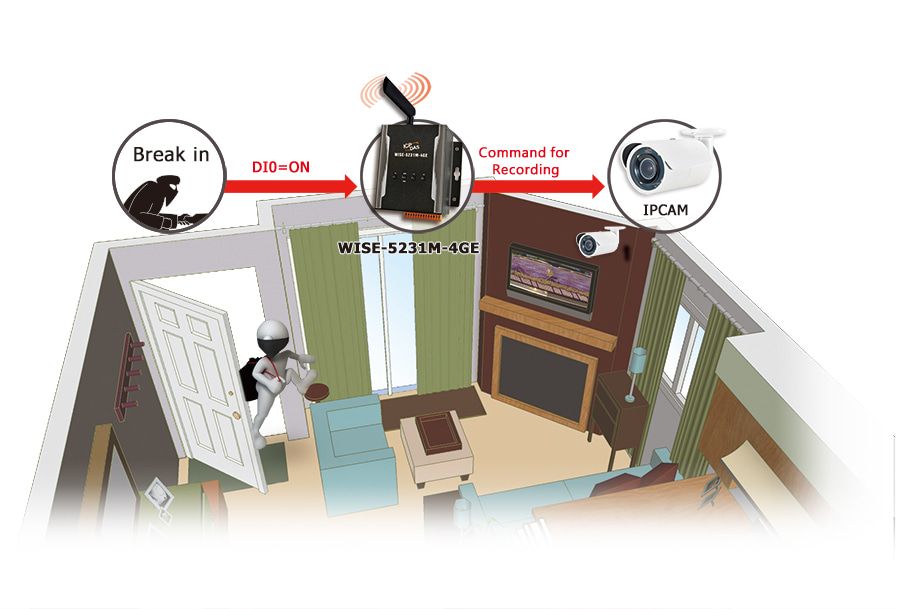

ICP DAS WISE surveillance solution integrates logic control, I/O, camera and data log in one single WISE controller. WISE allows two-way interactions between the I/O and the camera; it enables to record a piece of video or to take images when there is an event triggered by either I/O condition or ROI (Region of Interest) by camera. In this way, the storage size can be reduced significantly and the connection between I/O event and Video/Image can be built for easy query.
Click to view the WISE+iCAM DM.
ICP DAS WISE Surveillance Solution | Regular Surveillance Solution |
---|---|
|
|
![]() |
![]() |
Well-thought-out CGI command operation with IP Camera





|
||||||||||
IP Camera: iCAM Series Network Camera
|
Model | Camera | Video | Mechanical | |||||
---|---|---|---|---|---|---|---|---|
Lens # | Lens | Aperture | Field of View | Image Sensor | Streams | OSD (*) |
Ingress Protection | |
iCAM-MR6322
|
1 | Fixed-Focal: 4 mm |
F2.0, Dome |
H : 90° V : 45° D : 107° |
1/2.7" CMOS |
4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth |
Yes | IP67 |
iCAM-MR6422X
|
1 | Vari-Focal: 2.8 ~12 mm |
F1.4, Dome |
H : 102° W–34° T V : 54° W–20° T D : 122° W–39° T |
1/2.7" CMOS |
4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth | Yes | IP67 |
iCAM-ZMR8422X
|
1 | Auto-Focus: 2.8 ~12 mm |
F1.6, Bullet |
H : 102.3°W–51.6°T V : 51.3°W–24.9°T D : 128.2°W–57.3°T |
1/2.7" CMOS |
4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth | Yes | IP67 |
* OSD: On Screen Display. Can display text and variables that sent from WISE controllers. |
