MiniOS7 Utility

MiniOS7 is a DOS-like OS for embedded controller such as I-7188, uPAC-7186, I-8000 and iP-8000 designed with high reliability, high I/O flexibility and low power consumption. It includes a powerful and reliable Xserver programming structure that allows you to design your robust embedded controller applications quickly and easily.

MiniOS7 Utility is a tool for configuring, uploading files to all products with MiniOS7.

Functions

Supported connection ways

1. COM port conection (RS-232)
2. Ethernet connection (TCP & UDP) (Supported since version 3.1.1)

Maintaince

1. Upload file(s)
2. Delete file(s)
3. Update MiniOS7 image

Configuration

1. Date and Time
2. IP address
3. COM port
4. Disk size (Disk A, Disk B)

Check product information

1. CPU type
2. Flash Size
3. SRAM Size
4. COM port number
etc.

Including frequently used tools

a. 7188XW
b. 7188EU
c. 7188E

PC system Requirements

1. IBM compatible PC
2. Windows 95 /98/NT/2000/XP/Vista/Windows 7/8/10

Supported products

       1. uPAC-5000 series
       2. PDS-700 series
3. μPAC-7186EX series
4. I-7188EX series
5. I-7188/I-7188XA/I-7188XB/I-7188XC
   6. All I-8000 series
7. ET-7000 series
8. G-4500 series

MiniOS7 Utility API

Open source code to realize customization

◆ Integrate application depends on customer's requirements
MiniOS7 APIs support programmer to send MiniOS7 command or upload file from host PC.
Programmer can integrate APIs into an application to let user set IP, update firmware and so on. User doesn’t need to install ICPDAS MiniOS7 Utility anymore.

◆ Supported functions

File maintenance	Upload File
	Erase Disk
	Update OS Image
	Download/Upload EEPROM Configuration
System command	Get file list & available size
	Set/Get Network setting
	Set/Get Date Time
	Set/Get Disk Size
	Reset
Get OS information
OS version	OS
	OS Type
	build
Hardware info	Hardware
	CPU
	Serial number
Reset by	WDT or Power on
Initial pin status	Close or Open
Memory	SRAM
Memory	Flash Memory(include Disk A, Disk B, Reserve)
Network	MAC address
	IP/IP2
	Mask/Mask2
	Gateway/Gateway2
Others	Alias
	Date and Time
	Slot and module on it
	Comport setting
Note: V1.0.1 supports RS-232 connection only

◆ Supported products
MiniOS7 embedded products

◆ PC Requirements
For Programmer
VB6 or C#.NET installed
For User
Windows 95/98/NT/2000/XP/Vista/Windows 7

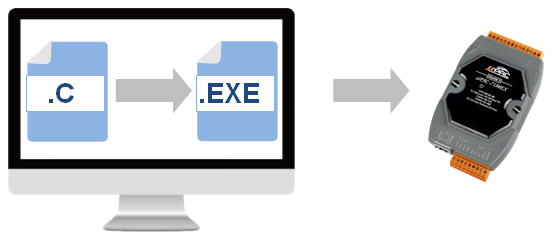

C programs based on MiniOS7 need to go through the compilation process before they can be executed on the controller. C source files can be compiled smoothly on 32-bit Windows operating systems. But on those 64-bit systems, the C compiler cannot directly execute.

To provide a solution, the following reference document comes with instructions for compiling C programs on 32-bit and 64-bit Windows systems.

MiniOS7 System Application Compilation Instructions
