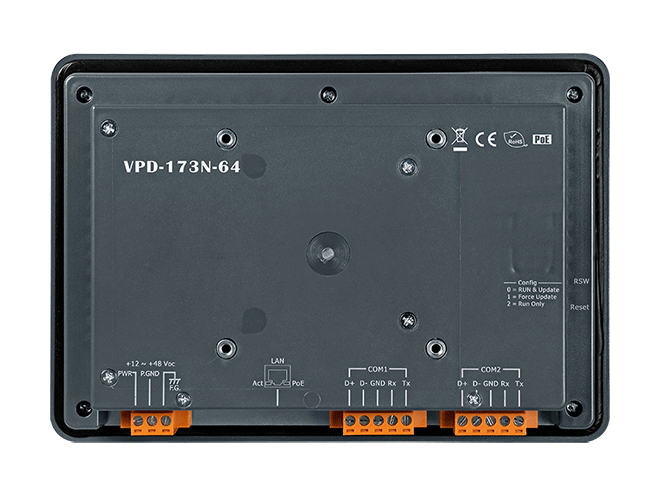

VPD-173N-64
7" Touch HMI Device with 2 x RS-232/RS-485 and Ethernet (PoE), 64 MB Flash
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- Serial communication interfaces
- RTC (Real Time Clock)
- Front Panel: IP65 Waterproof
- GUI design
- Free HMIWorks development tool
- Supports C language and Lader Designer
- Supports user-defined third party protocol (C language)
- Extensive Sample Programs (e.g., Heat Hazard Monitoring)
Introduction
VPD-173 series HMI is designed for building, home and industrial automation. VPD-173 series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. The VPD-173 series expands its memory to 16 MB SDRAM and 16 MB Flash, while the VPD-173-64 series expands its memory to 64 MB SDRAM and 64 MB Flash.Inshort, it is the best choice to upgrade the mechanical switch to intelligent control pads.
HMIWorks is a free development software for the VPD series HMI devices, which provides Ladder Designer for PLC users, and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program of VPD-series devices when using Ladder Designer.
Applications
Please refer to the TouchPAD Applications for more detailed product application case.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
|---|---|
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
|---|---|
| Status | 2 LED |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| Power | |
|---|---|
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
