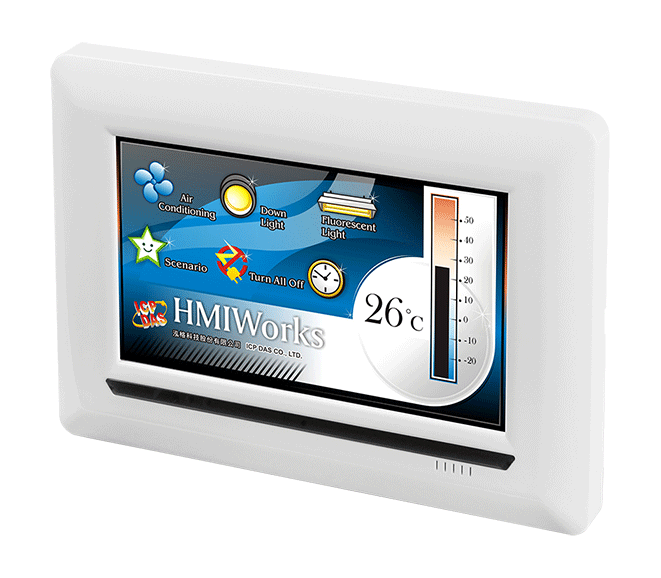

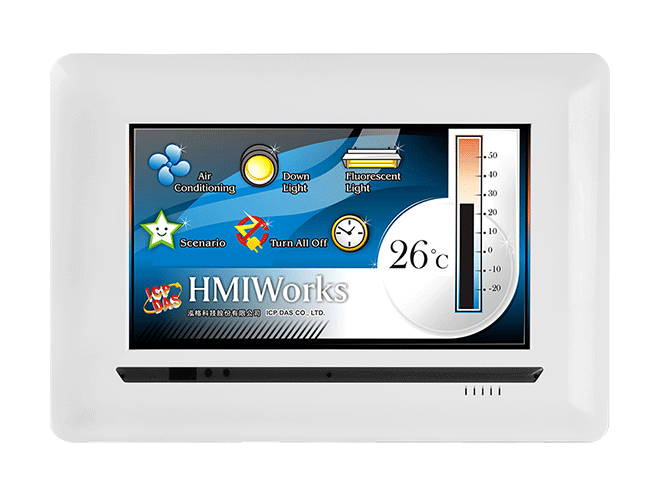

TPD-703
7" Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), 16 MB Flash
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Suppots C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
Introduction
TPD 7 inch series is a series of touch HMI designed for building and home automation with high resolution TFT color touch screen. The TPD-703 expands its memory to 16 MB SDRAM and 16 MB Flash, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash. Besides, TPD-703/703-64 provides 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC), etc. Meantime, it can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer.

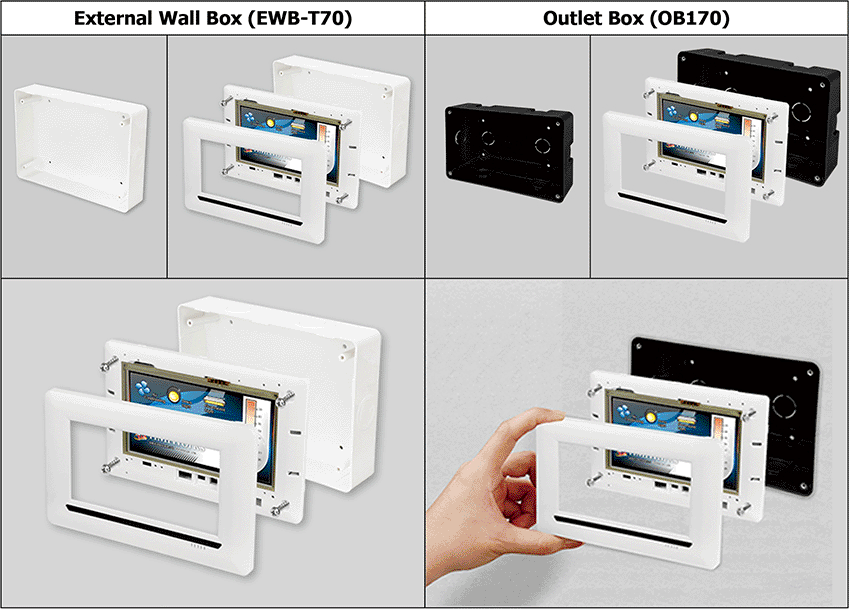

Installation
Applications
Please refer to the TouchPAD Applications for more detailed product application case.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products

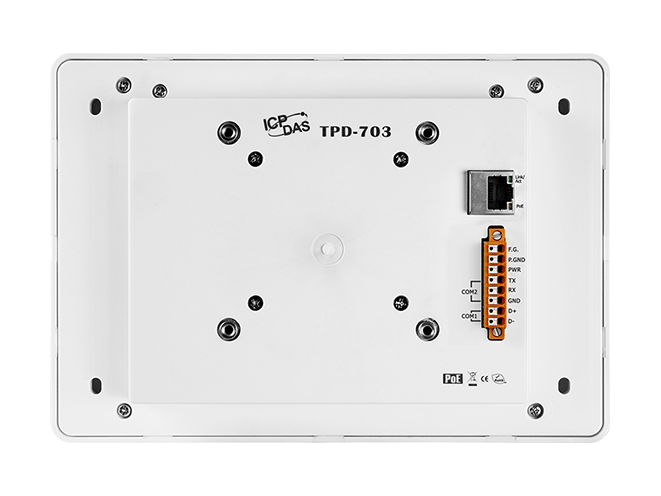

| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
|---|---|
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 250 cd/m2 |
| Touch Panel | 4-wire, analog resistive; Light Transmission: 80% |
| LED Indicators | |
|---|---|
| Status | 2 LED |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 (including Self-Tuner) ; Non-isolation 1 x RS-232 (3-pin) ; Non-isolation |
| Power | |
|---|---|
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
