TPD-430-H
Introduction

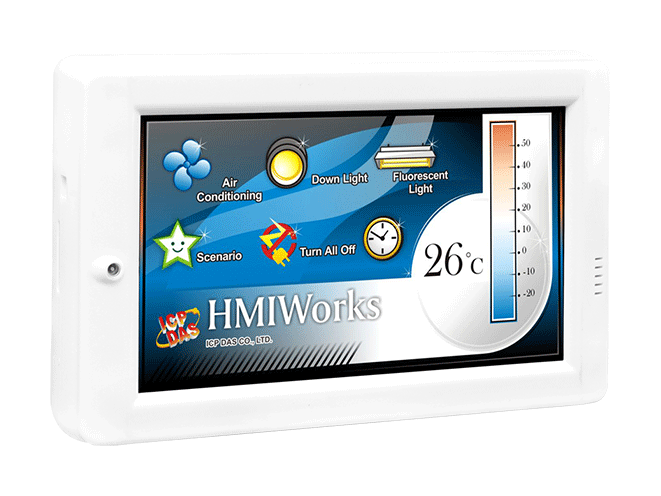

TPD 4.3 inch series is a tiny touch HMI with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
Applications
Please refer to the TouchPAD Applications for more detailed product application case.
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Main Unit | |
---|---|
CPU | 32-bit RISC CPU |
Storage | 16 MB SDRAM/16 MB Flash |
Real Time Clock | Yes |
Display | |
---|---|
Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
Backlight Life | 20,000 hours |
Brightness | 400 cd/m2 |
Touch Panel | Yes |
LED Indicators | |
---|---|
Status | 1 LED |
HMI | |
---|---|
Buzzer | Yes |

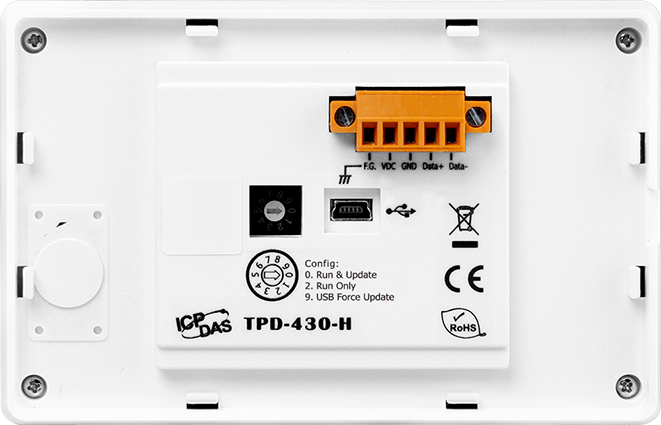

Rotary Switch | Yes |
Reset Button | Yes |
USB | |
---|---|
Specification | USB 1.1 Client (Firmware updates only) |
Connector | Mini-B |
Power | |
---|---|
Consumption | 2.5 W |
Powered from Terminal Block | +12 ~ 48 VDC |
Mechanical | |
---|---|
Dimensions (mm) | 126 mm x 82 mm x 24 mm |
Installation | Wall Mounting (Suitable for the outlet box in United States) |
Environment | |
---|---|
Operating Temperature | -20 ~ +50°C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
