TPD-280-M1
2.8" Touch HMI Device with 1 x RS-485
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- GUI design
- Free HMIWorks development tool
- Suppots C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus RTU protocol
Introduction

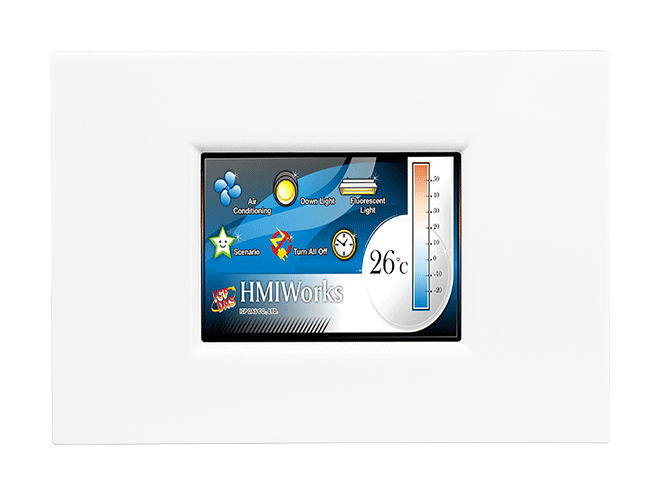

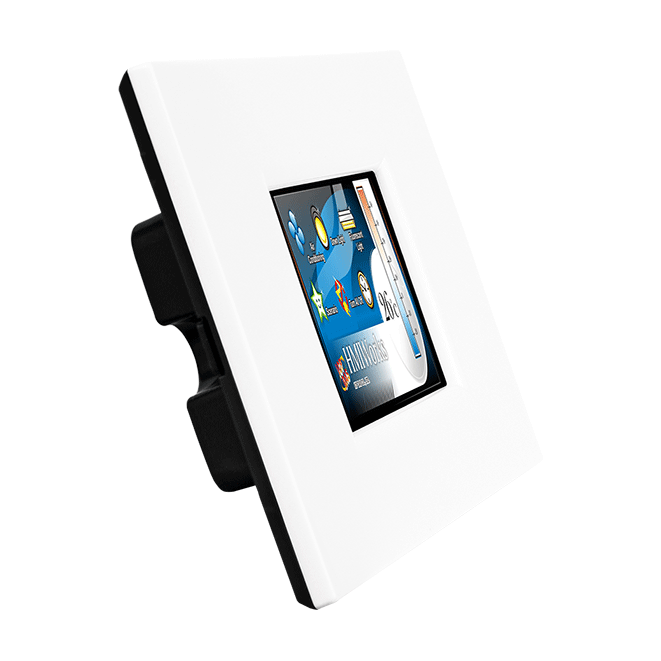

TPD 2.8 inch Mx series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer.
Moreover, we provide solutions in our PoE version, TPD-283-Mx/TPD-283U-Mx of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer.
Moreover, we provide solutions in our PoE version, TPD-283-Mx/TPD-283U-Mx of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
Installation
Applications
Please refer to the TouchPAD Applications for more detailed product application case.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
|---|---|
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |

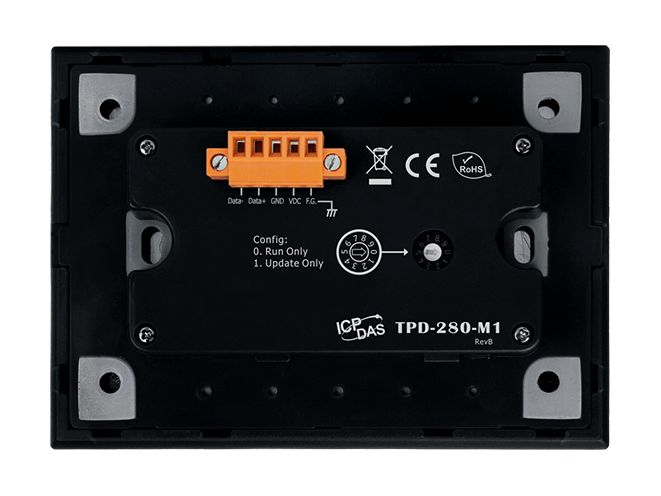

| COM Ports | |
|---|---|
| Ports | 1 x RS-485 (including Self-Tuner) |
| Power | |
|---|---|
| Consumption | 1.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 127 mm x 92 mm x 31 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
