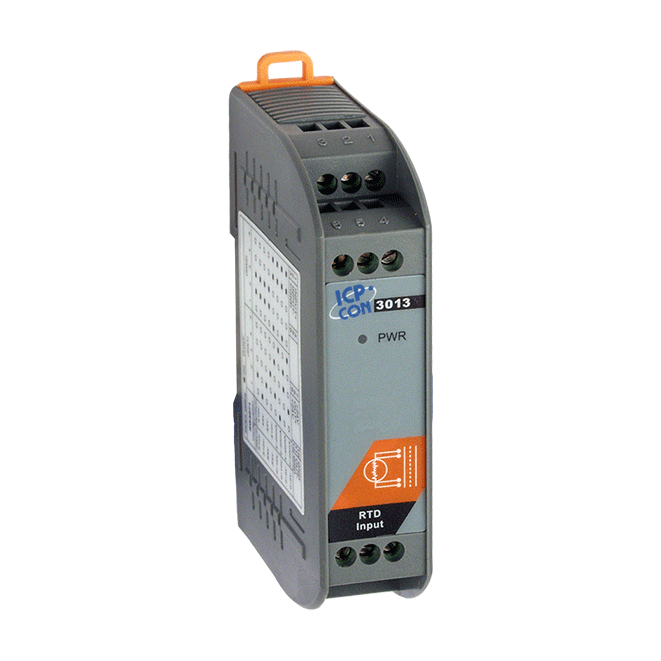

SG-3013-G
RTD Input Signal Conditioner
Features
• Three-way isolation: 1000 Vdc
• Accuracy: ±0.1% of full range
• Flexible DIN-rail
• Accuracy: ±0.1% of full range
• Flexible DIN-rail
Introduction
The SG-3013 is a RTD input to voltage or current output signal conditioning module. It has 1000 Vdc three-way isolation for input, output and power. It also can change the input/output range via internal configuration switches. It's easy to mount the SG-3013 on a standard DIN rail and can operate in environments with wide temperature range.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Three-way Isolation | 1000 VDC |
| Analog Input | |
|---|---|
| Channels | 1 |
| Type | Pt100 α=0.00385 / Pt100 α=0.003916 / Ni 120 / Pt1000 α=0.00385 |
| Accuracy | ±0.1% of full range |
| Response Time | 100 ms |
| Analog Output | |
|---|---|
| Channels | 1 |
| Range | Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Current Load Resistance | 0 ~ 500 Ω (Source) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | 30 °C ~ 75 °C |
| Humidity | 5 ~ 95%, non-condensing |
