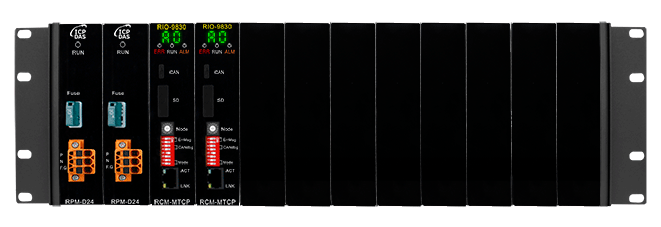

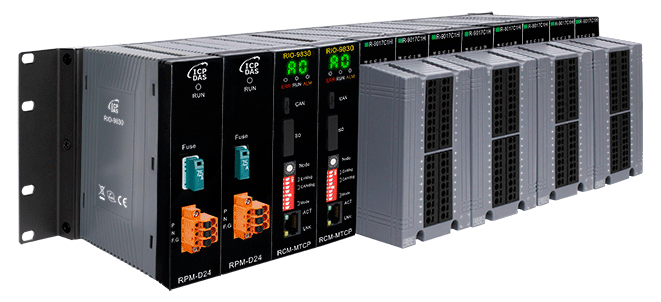

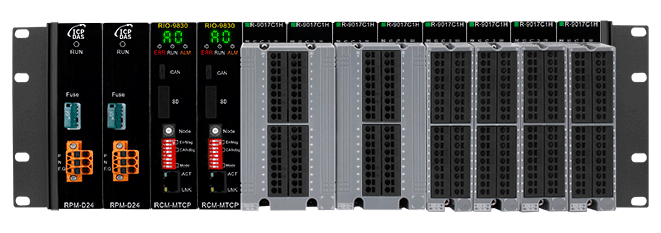

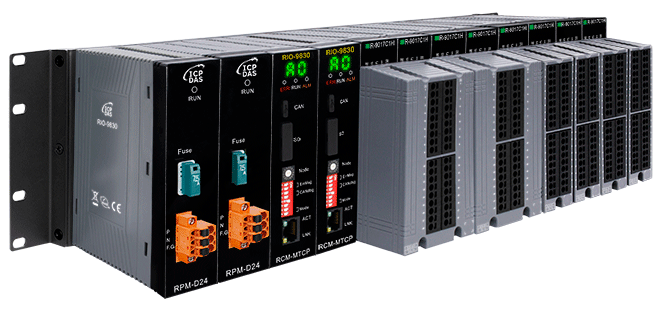

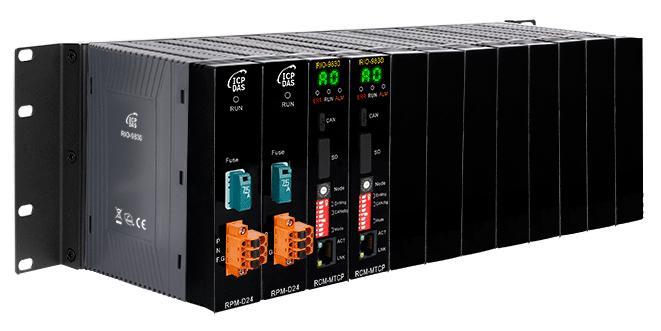

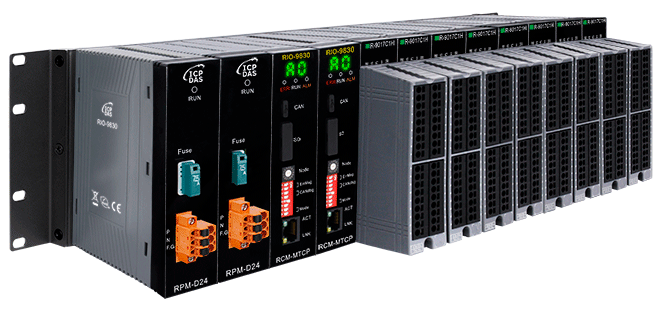

RIO-9830
8-slot Redundant Distributed I/O System with Modbus TCP Server
Features
- Support Modbus/TCP Server
- Support 8 I/O module slots (4 sets of I/O redundancy)
- Support module parameter configuration automatically
- Support redundancy for PWR / Comm. and I/O module
- Support hot-swap for all modules
- Seven-segment display for real-time display of module operation status
- Micro SD and RTC for real-time recording of module abnormal status
Introduction
RIO-9830 is a modular remote redundant I/O system designed to enhance system monitoring stability and maintenance convenience. It supports Modbus/TCP communication protocol and can be easily integrated and widely used in various industrial applications.

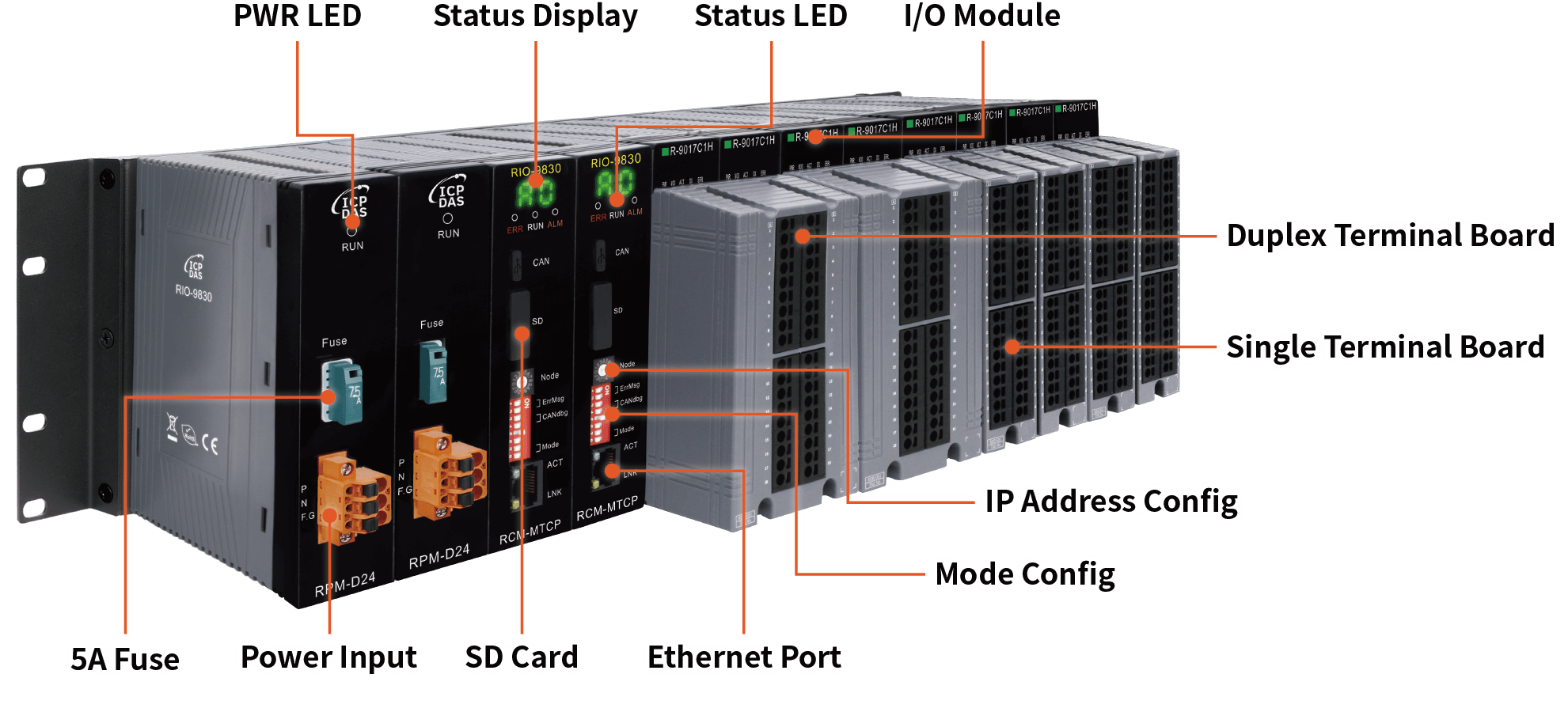

The RIO-9830 consists of the following modules:
- Power Module Duplex
- Supports 24 VDC (+/- 10%) power input
- Duplex design ensures stable power supply for RIO-9830
- Communication Module Duplex
- Support Modbus TCP Server
- Seven-segment display for real-time display of module operation status
- Micro SD and RTC for real-time recording of module abnormal status
- I/O Module Duplex
- Can be configured up to 8 sets of single or 4 sets of duplex
- Supports multiple input/output signal types (e.g., analog current/voltage, digital signaling, TC/RTD temperature measurement, pulse counting, and HART communication) (RIO Module)
- Hot-swap: Allows the module to be replaced without interrupting the system operation, enhancing the convenience of system maintenance.
- Parameter Auto-Configuration: Reduces the complexity of manual configuration and simplifies the system maintenance process.
- Redundant design: Simultaneous duplex operation of power, communication and I/O modules to enhance system stability and fault tolerance.
These features make the RIO-9830 an ideal solution for industrial applications that require high reliability and stability.

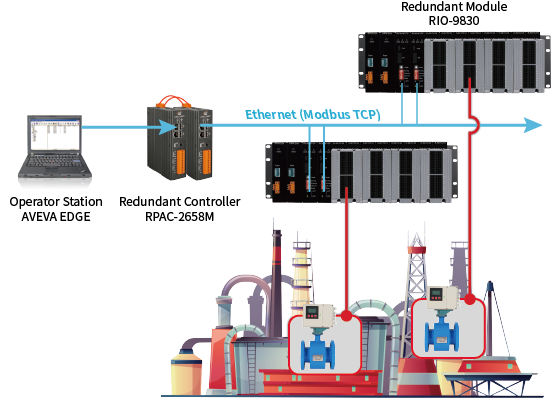

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| I/O Expansion | |
|---|---|
| Slots | 8 |
| Power | |
|---|---|
| Redundant Power Inputs | Yes |
| Mechanical | |
|---|---|
| Dimensions (mm) | 133 x 396 x 151 |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
