PM-3133-RCT series

3-phase Smart Power Meter, Modbus RTU Series, With Rogowski Coil CT

Features

• Bi-directional Energy
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 4000 A
• Voltage Measurements Up to 500 V
• Rogowski Coil Soft CT for Easy Installation
• W Accuracy Better than 2% (PF=1; Input Current >50A; for -500P and -1000P)
• W Accuracy Better than 2% (PF=1; Input Current >200A; for -2000P and -4000P)
• Total Harmonic Distortion (THD)
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1
• Multiple Data Format

Introduction

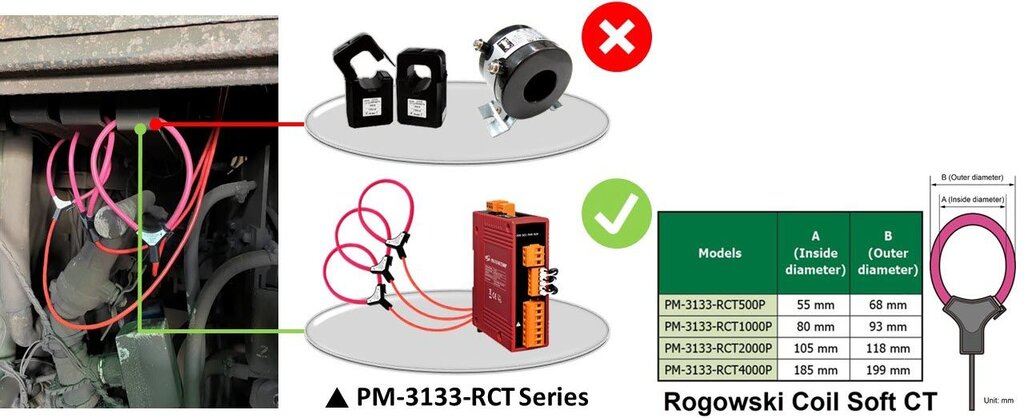

ICP DAS brings the most powerful, cost-effective Smart Power Meters PM-3133-RCT series that access real-time electric usage for three-phase power measurement. The PM-3133-RCT series can be applied to the low voltage primary side and/or medium/high voltage secondary side, and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipment in real-time under operation. In addition to its compact size and cost performance, the additional Rogowski Coil CT is suitable for high current measurements from 500A to 4000A, large wire diameters (e.g. busway conductor), and for installation in tight spaces. It operates over a wide input voltage range of 10 ~ 500 VAC which allows worldwide compatibility. With 2 channel relay outputs, it can be linked with sirens or lighting for alarm messages.

Applications

• Generator monitoring
• Switchgear distribution systems
• Energy Management

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PM-3133-RCT500P CR	DESCRIPTIONModbus RTU, 3-phase power meter, 500A Rogowski Coil CT (Inside diameter 55 mm; wire lead 4 m) x 3 (RoHS)
PRODUCT SERIES PM-3133-RCT1000P CR	DESCRIPTIONModbus RTU, 3-phase power meter, 1000A Rogowski Coil CT (Inside diameter 80 mm; wire lead 4 m) x 3 (RoHS)
PRODUCT SERIES PM-3133-RCT2000P CR	DESCRIPTIONModbus RTU, 3-phase power meter, 2000A Rogowski Coil CT (Inside diameter 105 mm; wire lead 4 m) x 3 (RoHS)
PRODUCT SERIES PM-3133-RCT4000P CR	DESCRIPTIONModbus RTU, 3-phase power meter, 4000A Rogowski Coil CT (Inside diameter 185 mm; wire lead 4 m) x 3 (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

AC Power Measurement
Wiring	3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops	3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT
Input Voltage	10 ~ 500 V
Input Current	PM-3133-RCT500P: CTØ55 mm (5 A ~ 500 A) PM-3133-RCT1000P: CTØ80 mm (5 A ~ 1000 A) PM-3133-RCT2000P: CTØ105 mm (5 A ~ 2000 A) PM-3133-RCT4000P: CTØ185 mm (5 A ~ 4000 A)
Input Frequency	50/60 Hz
W Accuracy	Better than 2% (PF=1) Condition: Input current > 50A; (For -500P, -1000P) Input current > 200A; (For -2000P, -4000P)
Power Parameter Measurement	True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate	1 Second

Relay Output
Channels	2
Type	Power Relay
Contact Rating	Form A: 5 A @ 250 VAC 5 A @ 30 VDC

COM Ports
Ports	1 x RS-485
Baud Rate	9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format	N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol	Modbus RTU
Isolation	3000 VDC
