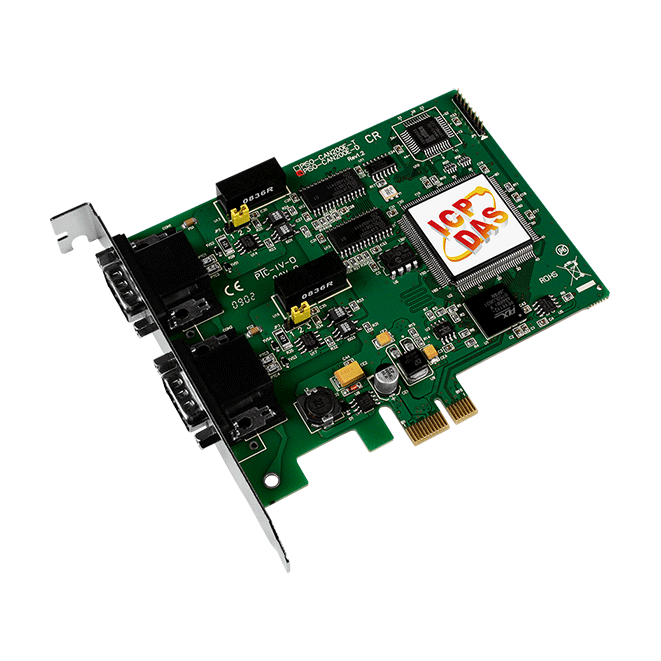

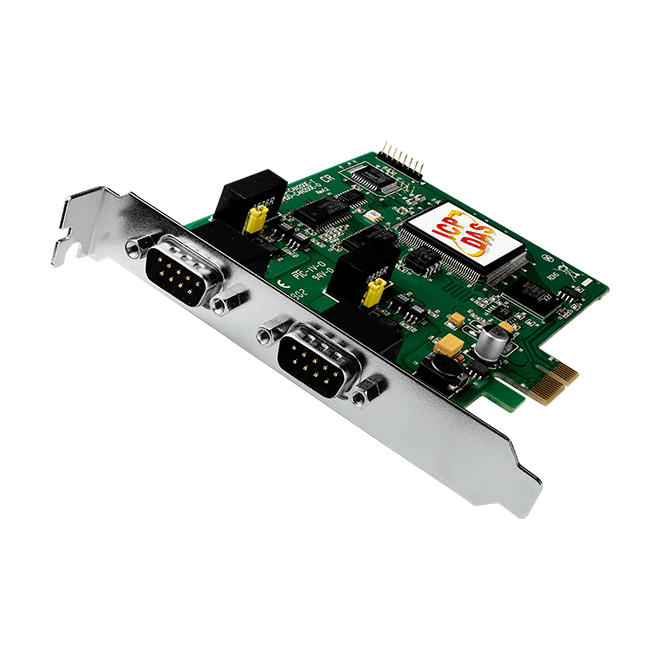

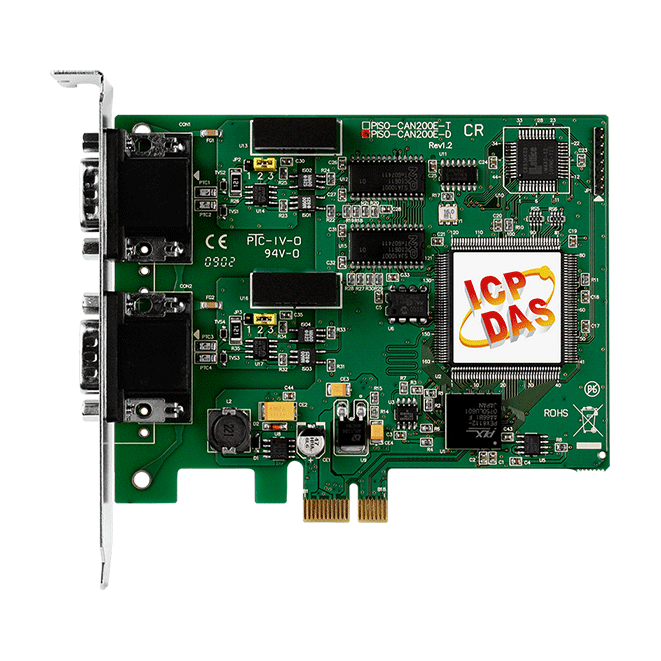

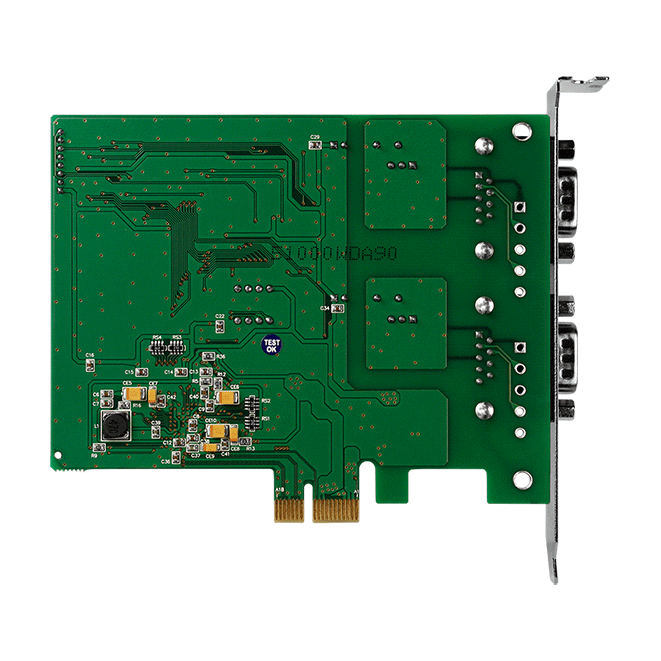

PEX-CAN200i-D

2-port CAN PCI Express Card (9-pin D-Sub Connector)
PEX-CAN200i-D
PEX-CAN200i-D
PEX-CAN200i-D
PEX-CAN200i-D
PEX-CAN200i-D
PEX-CAN200i-D
PEX-CAN200i-D
PEX-CAN200i-D

Features

  • PCI Express Interface
  • Compatible with CAN 2.0 parts A and B
  • Fully compatible with ISO 11898-2 standard
  • Support CAN bard from 10K to 1M bps
  • 2500 Vrms photo couple isolation on the CAN bus
  • 33 MHz, 32 bit, X1 PCI Express bus
    (It can be plugged into the PCI-Express x1, x4, x8, or x16 slot)
  • Build-in jumper to select 120 ohm terminal resister
  • 3KV galvanic isolation
  • 2 independent CAN channels
  • Direct memory mapping to the CAN controller
  • Provide VB, VC++, Delphi, BC++ demos
CE UKCA FCC RoHS WEEE

Introduction

PEX-CAN200i can represents an economic solution of an active CAN board with express PCI bus. It has 2 independent CAN bus communication ports with 5-pin screw terminal connector or 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PEX-CAN200i uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.

Applications

  • CAN bus communication application
  • DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PEX-CAN200i-D     CR DESCRIPTION2-port Isolated Protection CAN PCI Express Card with 9-pin D-sub connector (RoHS)
This combination include other products.

Similar Products

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft
SDK VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net
PC Bus
Type 33 MHz, 32 bit, X1 PCI Express bus
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 2
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Power
Consumption 100 mA @ 12 V, 100 mA @ 3.3 V
Mechanical
Dimensions (mm) 120 x 85 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 5 ~ 85% RH, Non-condensing
  • Can be a CAN system monitor tool with CAN cards
  • It is a good tool to test CAN system
  • Send/Receive/Record CAN messages.
  • Provide cyclic transmission function
  • Record the CAN messages with filtered ID and time stamp
  • Support: Win98/Me/2000/XP-32bit/7-32bit/7-64bit (not for Win 7 Ultimate-64bit)

Hardware Architecture


Software Architecture


Performance Test

Test development:
OS:Windows XP SP 3
CPU:Intel Core 2 Duo 2.00 GHz
RAM:512 MB
Baud Rate(bps) CAN 2.0 A CAN 2.0 B
Frame per sec. Frame per sec.
1000 k 7493 6387
800 k 6185 5249
500 k 4088 3463
250 k 2134 1808
125 k 1096 924
50 k 438 370
20 k 175 148
10 k 88 74

Note:The test result is the average value of receiving 100000 CAN messages.
