M-7041P-G

14-ch Isolated (Wet, 19~30 VDC) DI Module
M-7041P-G
M-7041P-G
M-7041P-G
M-7041P-G

Features

  • Sink- or Source-type Digital Input
  • Photocoupler Isolation
  • All Channels Can be Used as 16-bit Counters
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

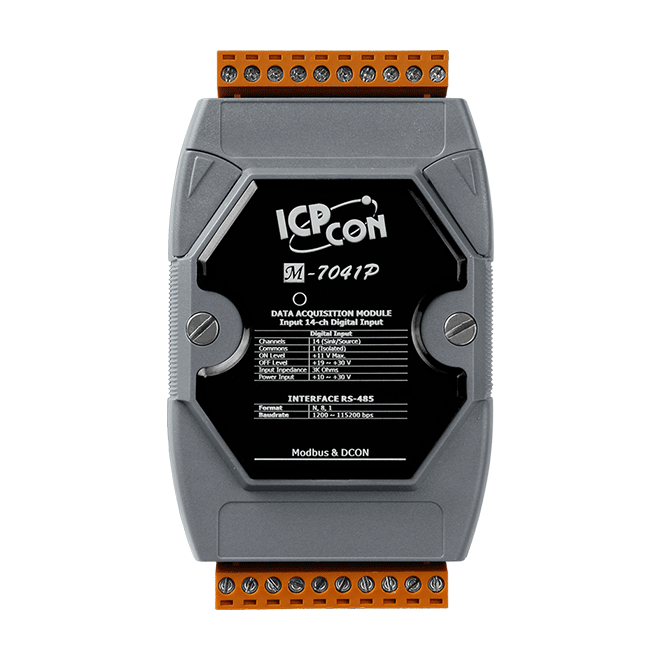

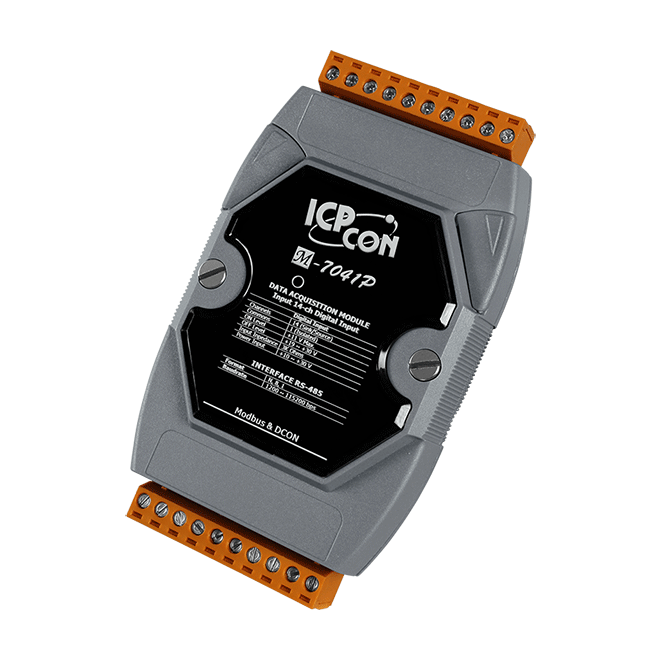

The M-7041(D)/M-7041P(D) provides 14 channels for digital input, each of which features photocoupler isolation. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 16-bit counters. The M-7041D/M-7041PD includes 14 LED indicators for channel status monitoring.

The M-7041(D)/M-7041P(D) supports Modbus RTU and DCON protocols, which can be configured via software. 4 kV ESD protection and 3750 VDC intra-module isolation are standard, and all hardware specifications are the same as the I-7041(D)/I-7041P(D). ICP DAS recommends selecting the "P" version of the digital input module for industrial use.

Applications


• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7041P-G     CR DESCRIPTION14-ch Isolated (Wet, 19~30 VDC) DI Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 14
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +19 ~ +30 VDC
OFF Voltage Level +11 VDC Max.
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 3 kΩ
Overvoltage Protection ±35 VDC
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.2 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
