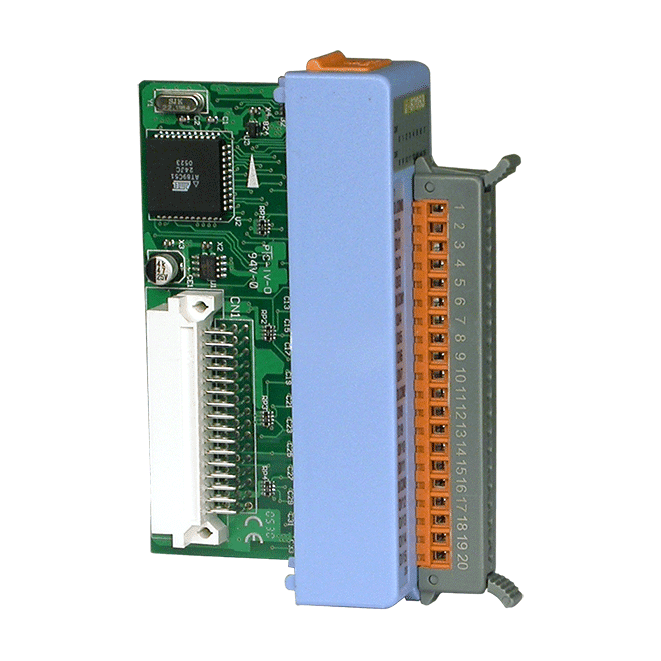

16-ch Isolated DI Module (3.5~30VDC)
Features
• 16-channel Digital Inputs
• Wet Contact
• Photocouple Isolation
• All Channels can be used as 16-bit Counters
• 3750 VDC Intra-module Isolation
• Dual Watchdog
Introduction
The I-87053 offers 16 channels for digital input. All channels feature photocouple isolation, and can also be used as 16-bit counters. The I-87053 series provides 16 LED indicators that can be used to monitor the DI channel status. 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input/Counter | |
|---|---|
| Channels | 16 |
| Type | Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND. Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | Dry: Open Wet: +1 VDC Max. |
| Max. Counts | 16-bit (65535) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 3 kΩ, 1 W |
| COM Ports | |
|---|---|
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 0.9 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
