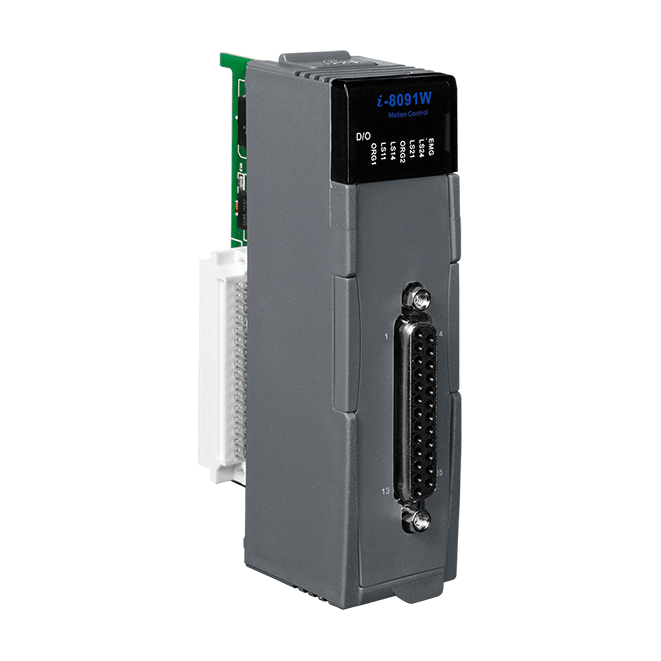

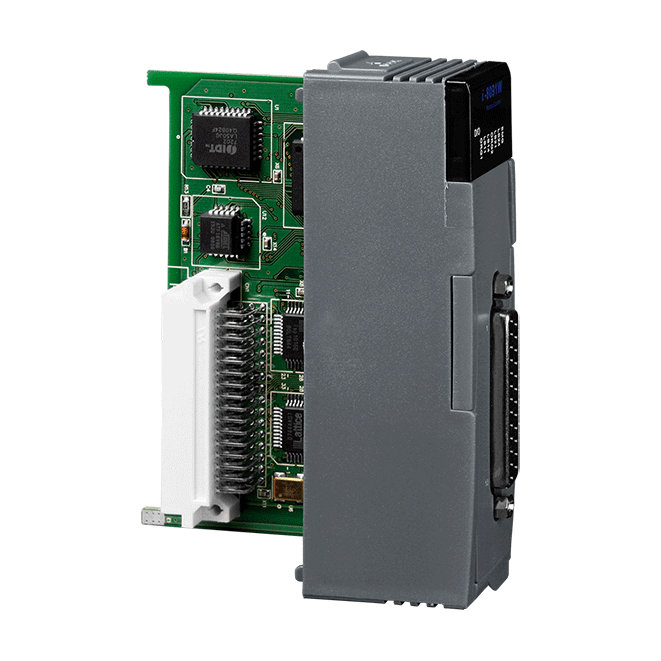

I-8091W-G
2-axis Stepping/Servo Motor Control Module
Features
• 2-axis Independent, Simultaneous Stepping Motor Control/ Servo Motor Control (Pulse Input Type)
• Maximum Pulse Rate: 1 Mpps
• Maximum Step Counts: 2^32 - 1 Steps
• Command Type Interface
• 2-axis Linear, 2-axis Circular Interpolation
• Automatic Trapezoidal Acceleration/Deceleration
• Output Pulse modes: CW/CCW or Pulse/Direction
• Output Polarity can be Programmable
• 3 Optical Isolated Dgital Inputs per Axis for Limit Switches
• Programmable Limit Switch Initial Condition as Normal Open (N.O.) or Normal Close (N.C.)
• Maximum Pulse Rate: 1 Mpps
• Maximum Step Counts: 2^32 - 1 Steps
• Command Type Interface
• 2-axis Linear, 2-axis Circular Interpolation
• Automatic Trapezoidal Acceleration/Deceleration
• Output Pulse modes: CW/CCW or Pulse/Direction
• Output Polarity can be Programmable
• 3 Optical Isolated Dgital Inputs per Axis for Limit Switches
• Programmable Limit Switch Initial Condition as Normal Open (N.O.) or Normal Close (N.C.)
Introduction
I-8091W stepping motor control card is a micro-computer controlled, 2-axis pulse generation card. It includes a 2K bytes FIFO to receive motion command from host. A micro-computer for profile generation and protection, 2-axis DDA chip to execute DDA function when interpolation command is used, 2500 Vrms optical isolation inserted for industrial application.
Applications
• X-Y Table
• Fix-Pitch Stamping Machine
• Transfer Machine
• Spinner
• Loader/Unloader
• Fix-Pitch Stamping Machine
• Transfer Machine
• Spinner
• Loader/Unloader
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 Vrms |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 7 x I/O |
| Encoder Input | |
|---|---|
| Type | 1. CW/CCW 2. Pulse/Direction |
| Motor Output | |
|---|---|
| No. of Axes | 2-axis |
| Step Frequency | 1 Mpps |
| Power | |
|---|---|
| Consumption | 3.9 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 114 x 86 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
