I-8063W-G

4-ch Isolated DI and 4-ch Power Relay Module

Features

• 4-channel Digital Input and 4-channel Relay Output
• Form C Power Relay Output
• Sink-type and Source-type Digital Input Channels

Introduction

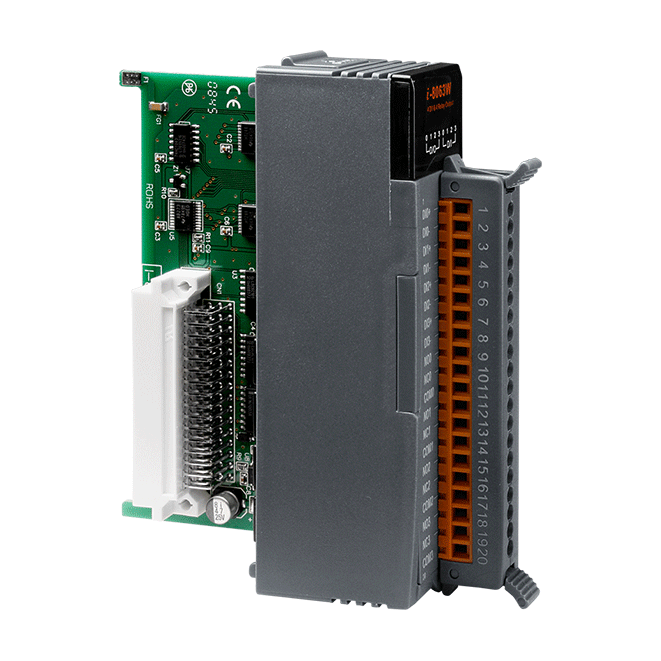

The I-8063W module provides 4 Isolated Digital Input channels and 4 Form C Relay Output channels. In addition, either sink-type or source-type Digital Input can be selected via the wire connections. The I-8063W includes 8 LED indicators that can be used to monitor the status of the Digital Input and Relay Output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-8063W-G CR	DESCRIPTION4-ch Isolated DI (Wet) and 4-ch Form C Power Relay Module (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Isolation
Intra-module Isolation	3750 Vrms

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal

LED Indicators
Status	1 x Power and Communication 8 x I/O

Digital Input
Channels	4 Differential
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	+10 ~ +30 VAC
OFF Voltage Level	+4 VAC Max.
Input Impedance	3 KΩ, 0.5 W

Relay Output
Channels	6 (Form C)
Type	Power Relay
Contact Rating	5 A (NO) /3 A (NC) @ 30 VDC; 5 A (NO) /3 A (NC) @ 277 VAC
Operate Time	10 ms Max.
Release Time	5 ms Max.
Electrical Endurance	500,000 Min. @ 30 VDC @ 2 A, Resistive
Mechanical Endurance	100,000,000 Min.

Power
Consumption	2 W Max.

Mechanical
Dimensions (mm)	30 x 102 x 115 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +85 °C
Humidity	5 ~ 95 % RH, Non-condensing
