GTM-205M-5GT

Industrial 5G Modem with USB 3.1 Super Speed Plus interface.(Asia Only, Except China)

Features

Support 5G SA/NSA Bands
Support 4G/3G Global Bands
Support TCP Server, TCP Client, and UDP Client Connection from 5G/4G
Support Standard AT Commands
Includes a Digital Input Channel to reset the System
Supports USB 3.1 Super Speed Plus Interface.
DIN-Rail mountable

Introduction

The GTM-205M-5G is an industrial 5G NR modem with USB Super Speed Plus interfaces that work at frequencies of 5G NR n1/n2/n3/n5/n7/n8/n12/n20/n28/ n38/n41/n66/n71/n77/n78/n79 and LTE Global Bands and WCDMA B1/B2/B4/B5/B6/B8/B9/B19. The modems utilize the 5G, 4G or 3G network to transfer data. The features of the GTM-205M-5G allow a variety of PAC and PC applications to take advantage of SMS and 5G or 4G or 3G connectivity.

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES GTM-205M-5GT CR	DESCRIPTIONIndustrial 5G Modem with USB 3.1 Super Speed Plus interface. (RoHS)(Asia Only, Except China)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

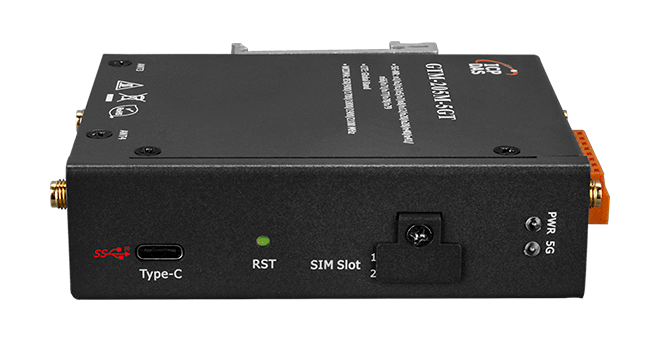

LED Indicators
Status	1 x Power 1 x 5G

3G System
Frequency Band	B1/B2/B4/B5/B6/B8/B9/B19

4G System
Data Transmission Rate	FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 TDD: B34/B38/B39/B40/B41/B42/B46(LAA)/ B48(CBRS)

5G System
Frequency Band	FDD: n1/n2/n3/n5/n7/n8/n12/n20/n28/n66/n71 TDD: n38/ n41/n77/n78/n79

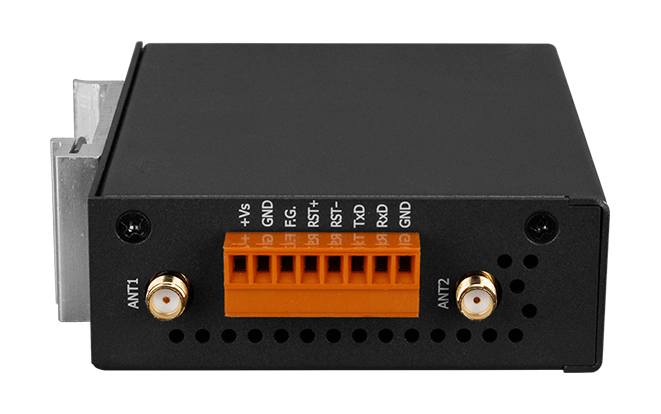

Reset Input
Type	Isolated, 3750 Vrms
ON Voltage Level	+3.5 VDC ~ +30 VDC
OFF Voltage Level	+1 VDC max.T40
Input Impedance	3 kΩ, 0.25W

COM Ports
Ports	1 x RS-232 (RxD, TxD, GND. Only for software reset system.)
Baud Rate	115200 bps

USB
Specification	USB 3.1 (Super speed plus)
Driver	Windows 10_x64、Windows 11

Mechanical
Casing	Metal
Dimensions (mm)	28 x 78.5 x 100 (W x L x H)

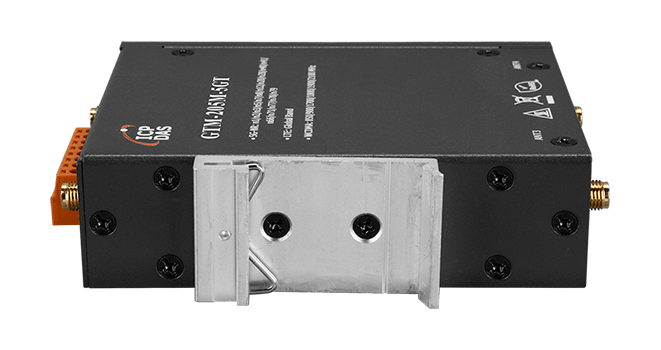

Installation	DIN-Rail

Environment
Operating Temperature	-25℃ to 70℃
Storage Temperature	-40℃ to 80℃
Humidity	5~90% RH, non-condensing
