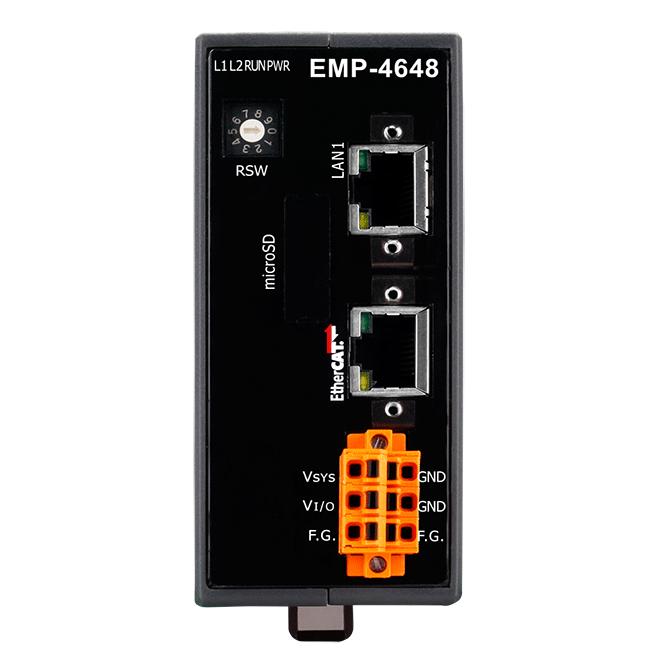

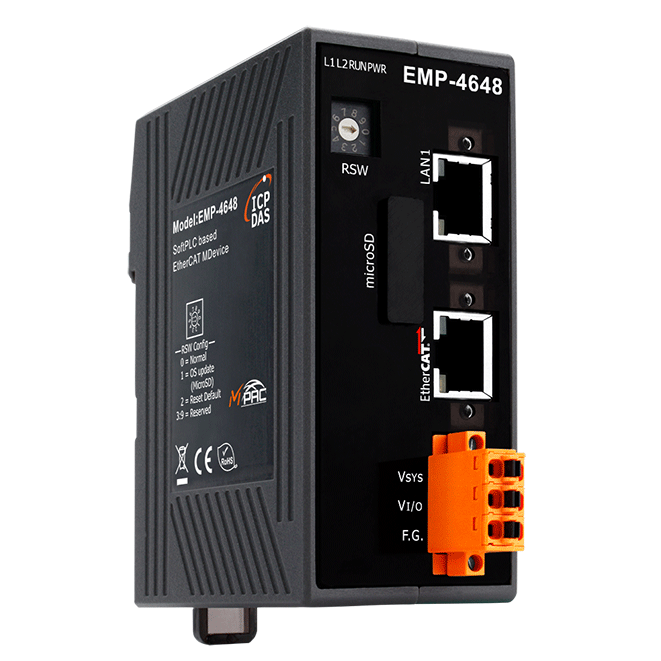

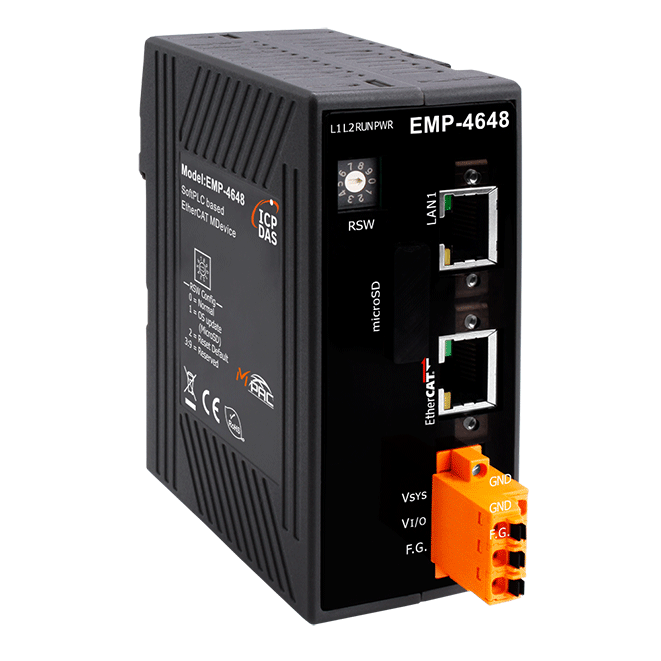

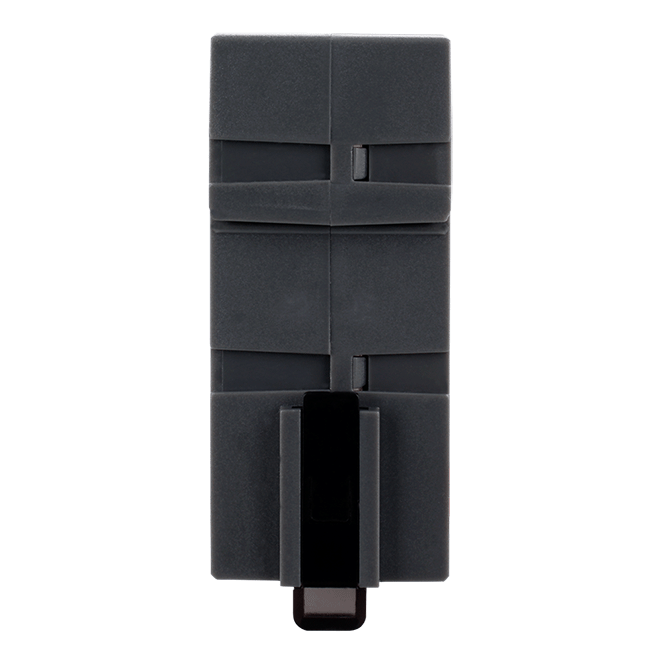

EMP-4648
Ultra-compact SoftPLC-based Controller
Features
• Ultra-compact size, space-saving, and wiring reduction
• Modular design, supports expansion with slim EC4 series
• EtherCAT cycle time up to 500 μs
• Supports up to 128 EtherCAT slaves, motion control up to 16 axes
• Supports all IEC-61131-3 SoftPLC languages (FBD, LD, IL, ST, SFC)
• EtherCAT, OPCUA, Modbus TCP
• User-friendly Web Management Interface
• RJ45 Screw-lockable Connectors
• Modular design, supports expansion with slim EC4 series
• EtherCAT cycle time up to 500 μs
• Supports up to 128 EtherCAT slaves, motion control up to 16 axes
• Supports all IEC-61131-3 SoftPLC languages (FBD, LD, IL, ST, SFC)
• EtherCAT, OPCUA, Modbus TCP
• User-friendly Web Management Interface
• RJ45 Screw-lockable Connectors
Introduction
The EMP-4648 is a high-performance, ultra-compact SoftPLC-based controller designed for spaceconstrained automation applications. Its ultra-compact size significantly saves installation space and wiring, making it ideal for space-limited environments and multi-axis motion control applications. The modular design allows expansion with the thin EC4 series EtherCAT I/O modules, providing greater flexibility and scalability.
Features:
• High-Performance Processor：Equipped with a quad-core Cortex-A53 processor running a Real-Time operating system, delivering high efficiency and real-time control.
• Standardized Development Environment：Compliant with PLCopen standards and IEC-61131-3, supporting multiple programming languages, including SFC, ST, FBD, LD, and IL.
• Comprehensive Communication Protocols：Supports EtherCAT, OPC UA, Modbus TCP, and various industrial automation communication protocols, ensuring seamless integration with different devices.
• Modular Expansion Capability：Supports EC4 series EtherCAT module I/O, allowing flexible I/O configuration for diverse application needs.
• User-friendly Web Management Interface：Built-in web management interface eliminates the need for additional software tools, enabling users to configure, manage, and maintain the system easily through a web browser.
Features:
• High-Performance Processor：Equipped with a quad-core Cortex-A53 processor running a Real-Time operating system, delivering high efficiency and real-time control.
• Standardized Development Environment：Compliant with PLCopen standards and IEC-61131-3, supporting multiple programming languages, including SFC, ST, FBD, LD, and IL.
• Comprehensive Communication Protocols：Supports EtherCAT, OPC UA, Modbus TCP, and various industrial automation communication protocols, ensuring seamless integration with different devices.
• Modular Expansion Capability：Supports EC4 series EtherCAT module I/O, allowing flexible I/O configuration for diverse application needs.
• User-friendly Web Management Interface：Built-in web management interface eliminates the need for additional software tools, enabling users to configure, manage, and maintain the system easily through a web browser.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Real-Time Linux (RT-Preempt, Kernel 6.1.83) |
| Development | Win-GRAF |
| SDK | PLCopen Function Blocks |
| Main Unit | |
|---|---|
| CPU | Cortex-A53, Quad-core, 1.4GHz |
| System Memory | DDR4 - 2GB |
| Storage | eMMC Flash – 8GB |
| LED Indicators | |
|---|---|
| Status | 1 x Run 1 x Power 2 x EtherCAT Runtime |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| EtherCAT | |
|---|---|
| Ports | 1 x RJ-45 |
| No. of Axes | 16 |
| No. of Nodes | 128 |
| Cycle Time | 500 μs (min.) |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 10W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 43 x 108 x 73 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
