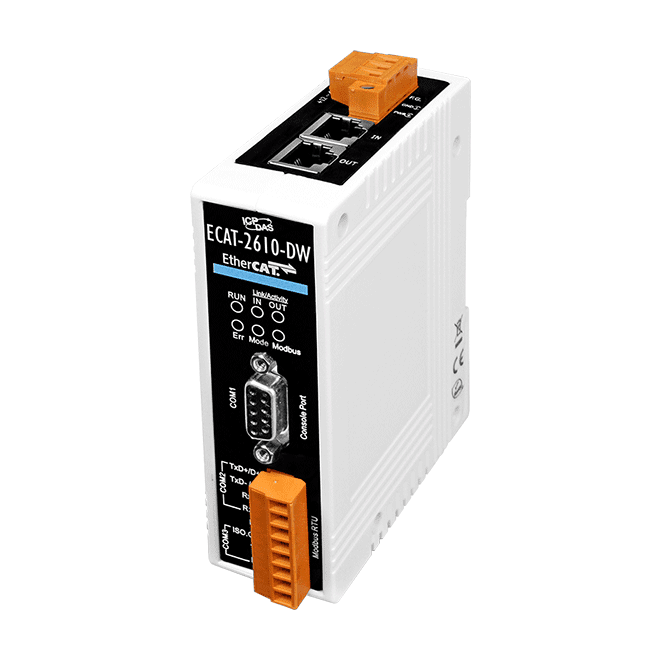

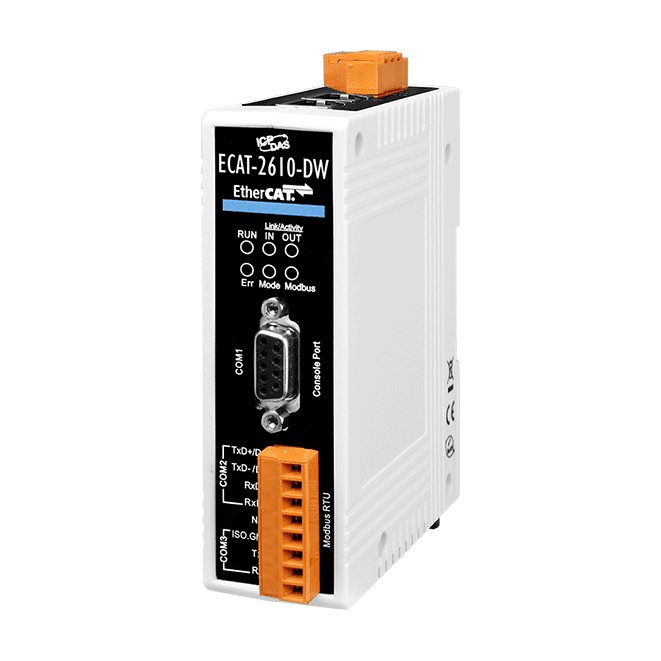

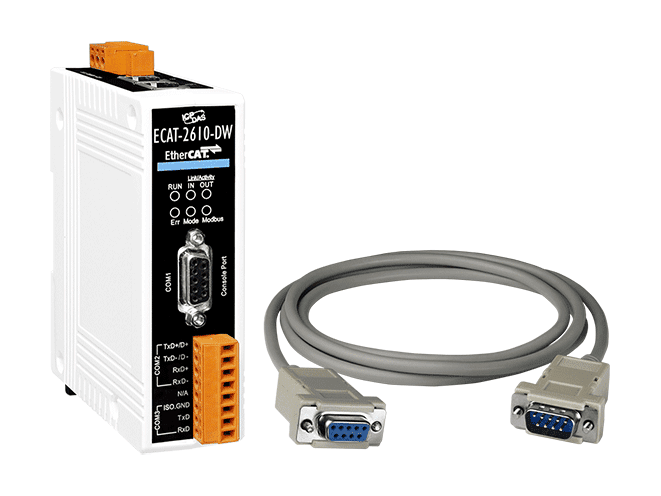

ECAT-2610-DW
Introduction
ECAT-2610-DW has EtherCAT to Modbus RTU gateway function, and can integrate smart meter slave devices such as PM-3033/3133/3114/3112 into EtherCAT control system through the special configuration file that provided by ICP DAS. And very easy to install and configure. The EtherCAT master can access RxPDO and TxPDO to connect multiple smart meter slave devices such as PM-3033/3133/3114/3112. It can achieve a more diversified energy management program.

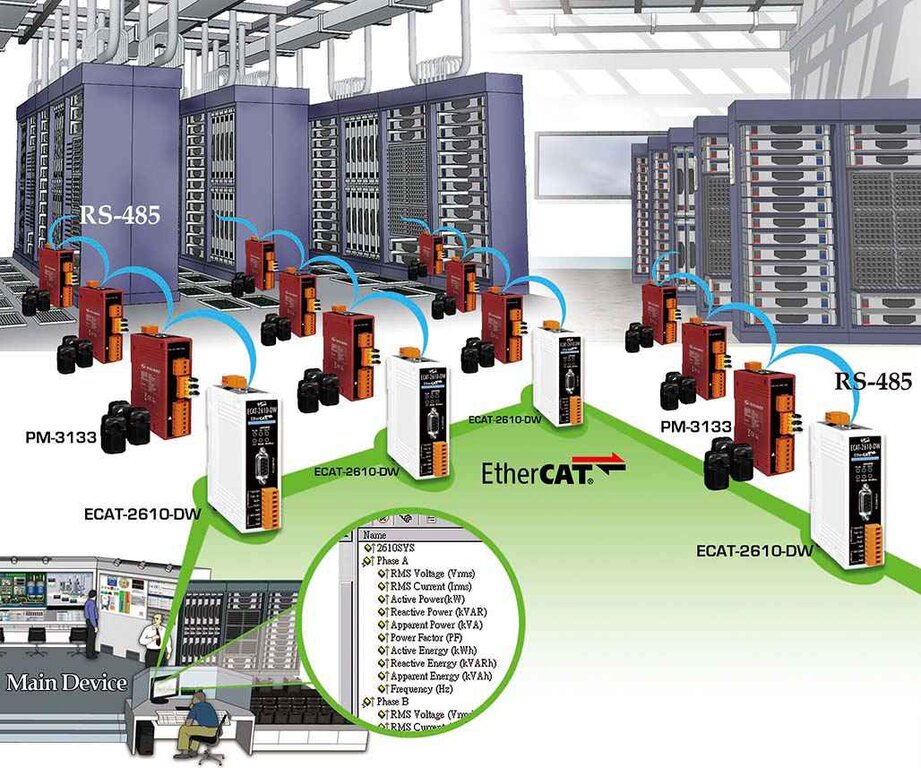

Applications
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
COM Ports | |
---|---|
Ports | 1 x RS-232/422/485 |
Protocol | Modbus RTU |
EtherCAT | |
---|---|
Ports | 2 x RJ-45 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
Cycle Time | 10 ms |
Distributed Clocks | N/A |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +12 VDC ~ +48 VDC |
Consumption | 0.1 A @ 24 VDC |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) | 33 x 127 x 99 (W x L x H) |
Installation | DIN-Rail |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
