DN-DIO-M
Universal termination board for digital I/O
Features
Introduction
The DN-DIO-M is a termination board for digital input and output modules. The size of DN-DIO-M is relatively small than other termination boards. Due to the small size of termination board, the DN-DIO-M can be fulfilled some applications in small cabinet.

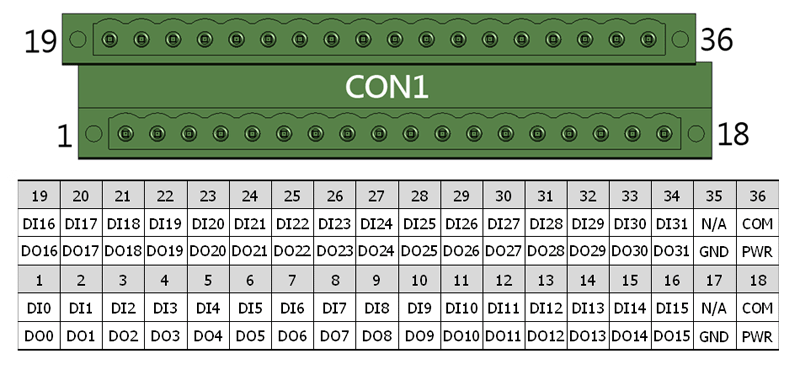

PIN Assignments
Wiring

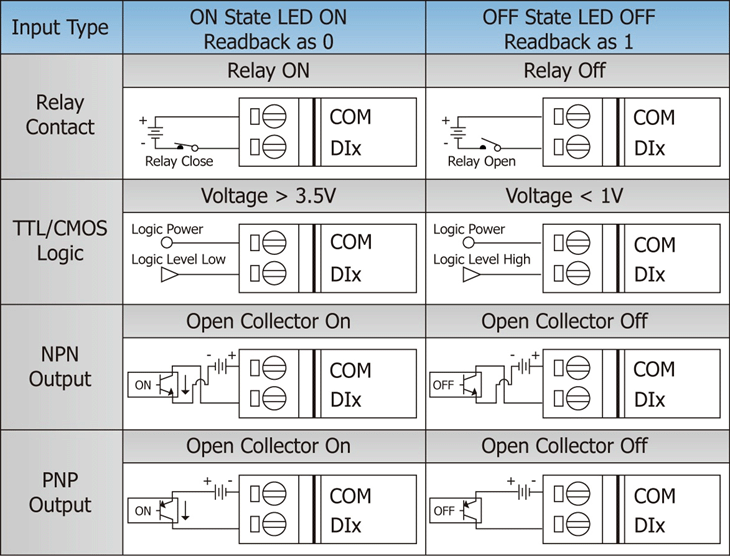

Digital Input

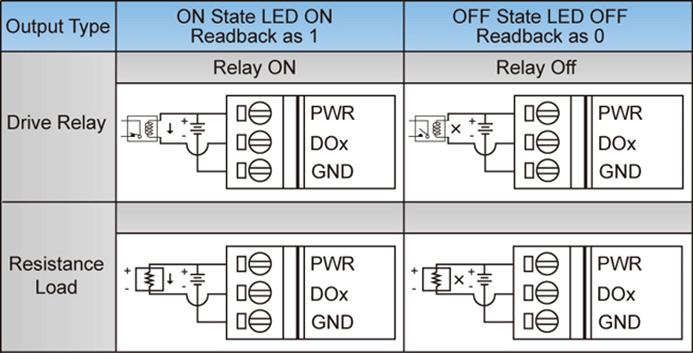

Digital Output
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|

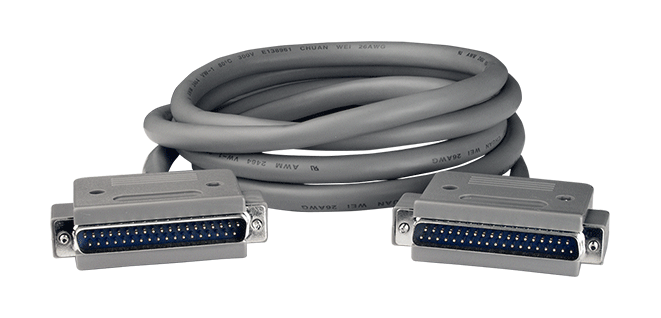

This combination include other products.
Similar Products
| Digital Output | |
|---|---|
| Channels | 32 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 112 x 117 x 29 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
