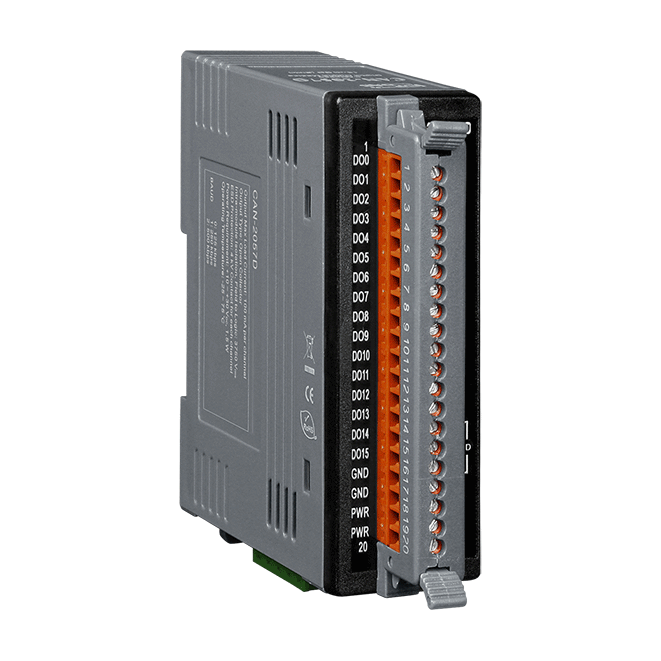

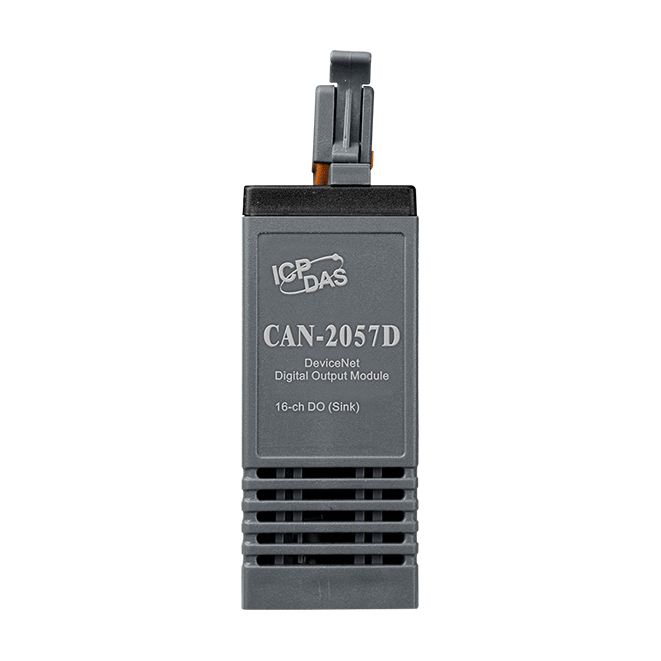

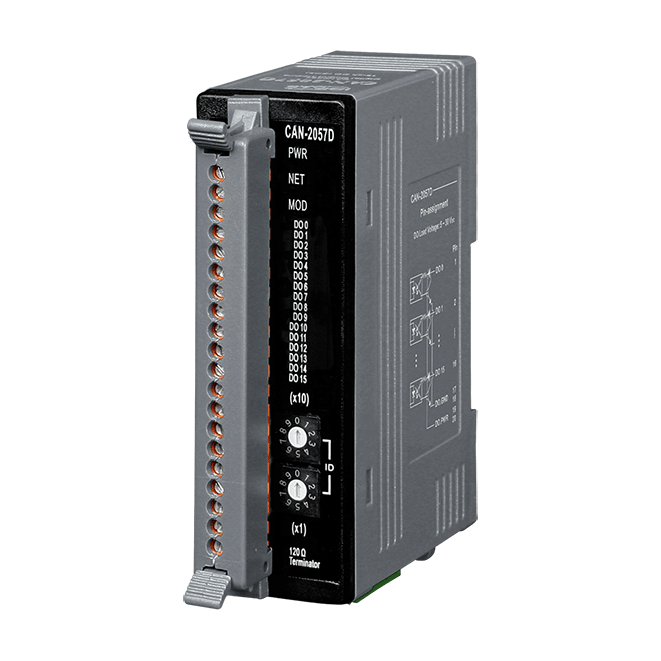

CAN-2057D

DeviceNet Slave Module of 16-channel Isolated (Sink, NPN) DO
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D
CAN-2057D

Features

  • DeviceNet general I/O slave devices
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Support DeviceNet heartbeat and shutdown messages
  • Provide EDS file for DeviceNet master interface
  • Support Application: Drive Relay, Resistance Load
  • ESD Protection 4 kV Contact for each channel
CE FCC RoHS WEEE

Introduction

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2057D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital output status and set the configuration via DeviceNet EDS file. The CAN-2057D has 16 Digital output channels with Open Collector output type and can be used to develop powerful and cost effective digital control system. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

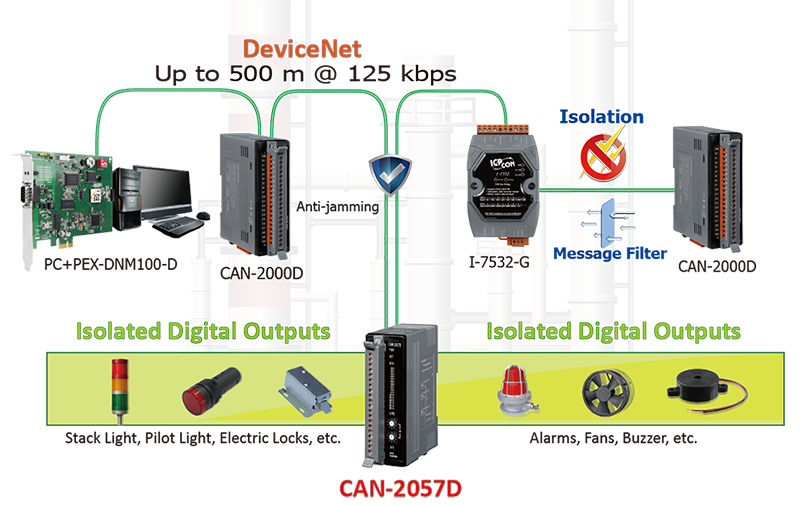

Applications

  • Alarm output
  • Switch control

We have communicated with the following DeviceNet masters or gateways.

  1. Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  2. OMRON CJ1W-DRM21
  3. OMRON CS1W-DRM21-V1
  4. OMRON C200HW-DRM21-V1
  5. OMRON 3G8F7-DRM21-E

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES CAN-2057D     CR DESCRIPTIONDeviceNet Slave Module of 16-channel Isolated (Sink, NPN) DO (RoHS)
This combination include other products.

Similar Products

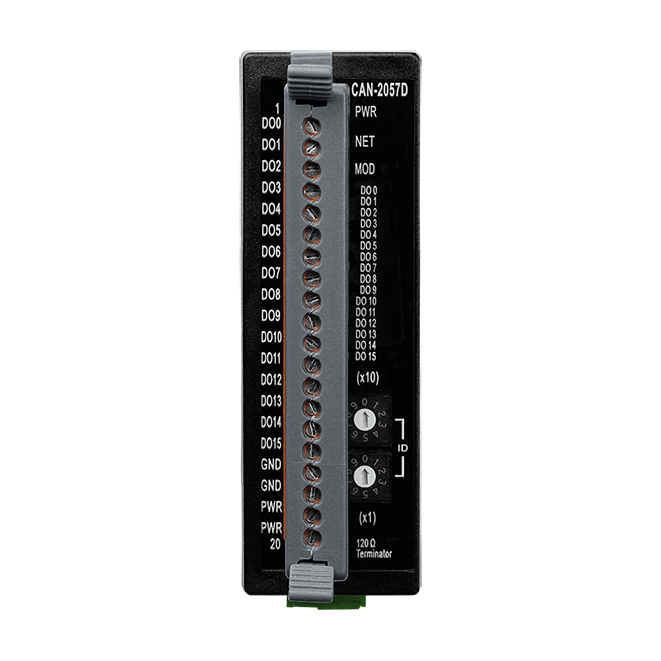

LED Indicators
Status 1 x Power
2 x DeviceNet status
Digital Output
Channels 16 (Sink)
Type Open Collector
Load Voltage +5 ~ +30 VDC
Load Current 100 mA per channel
Intra-module Isolation 3750 Vrms
DeviceNet
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate 125 kbps, 250 kbps, 500 kbps

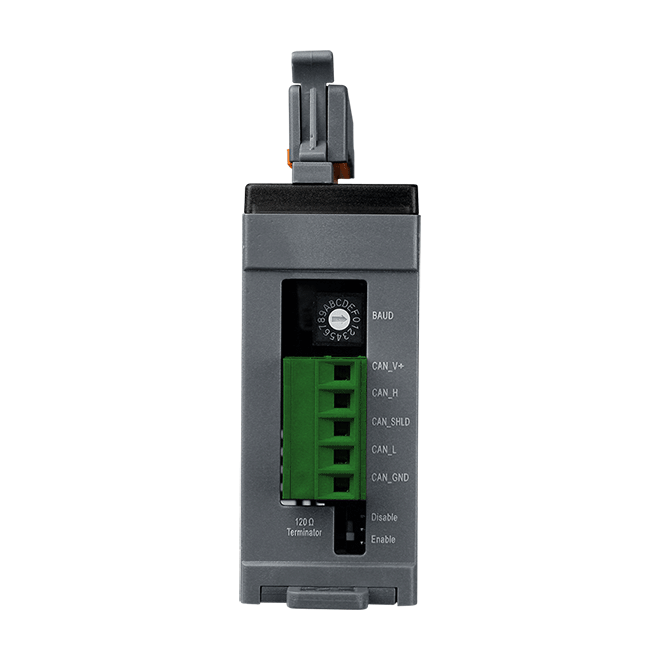

Terminal Resistor Switch for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID 0 ~ 63
Shutdown Message Yes
Heartbeat Message Yes
Subscribe Group 2 Only Server
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.5 W
Mechanical
Dimensions (mm) 32.3 x 99 x 77.5 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
