Introduction:

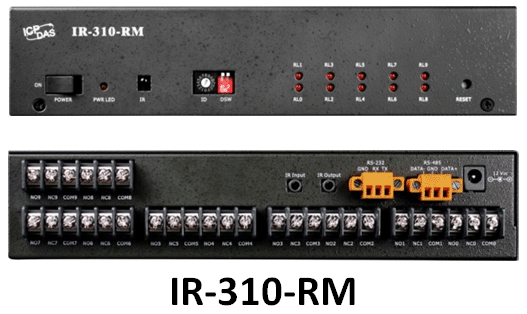

IR-310-RM is an IR controlled 10-channel high power relay module which is designed for the power switching control on various appliances. This relay module can switch up to 10 A loads. There are NO/NC terminals and protection circuit for each channel. It is easy to switch the 10 relay channels independently or sequentially by Modbus/RTU protocol as well as by wireless IR remote control. There are maximum 5 interlocked relay pairs which are useful in screens/curtains control. IR-310-RM can also be applied to the manual/automatic power switch, light scenario control and energy conservation etc. It is the necessity for your HA/BA systems.

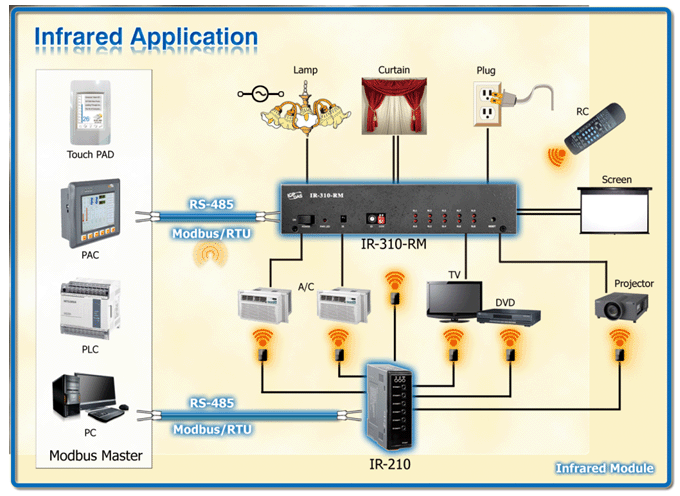

Application:

• e-Classroom service
• Lighting Scenario Control
• Home and Building Automation



Features:

• 10 channels high power relays: 10A x 4, 5A x 6
• Supports IR commands (custom:64, built-in:32) for relay control.
• NO & NC terminals for each channel
• Protection circuit for each channel
• Sequential relay control
• Supports maximum 5 sets of interlocked relay pairs (e.g. CW/CCW motor control)
• Power-on values and power failure memory
• RS-232 and RS-485 serial interface
• Supports Modbus/RTU protocol (Slave)
• Modbus Network IDs: 1 ~ 15 (HW); 1 ~ 247 (SW)

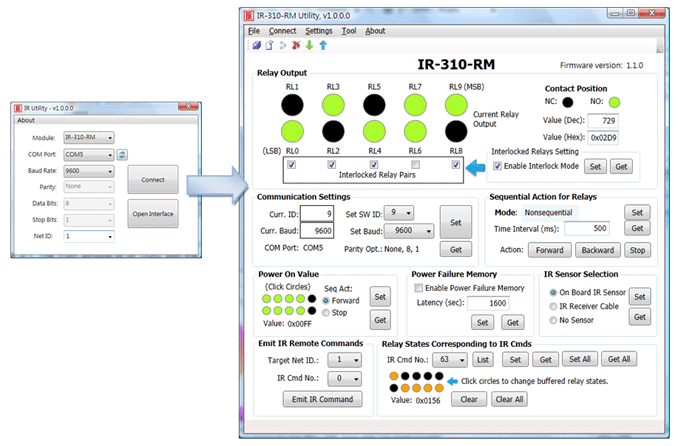

Utility:

IR utility (contains IR-310-RM utility) is a configuration tool for IR-310-RM.

• Can get/set separate or all settings from/to IR-310-RM.
• For relay output test and relay states indication.
• Control IR-310-RM to emit IR commands for an IR learning remote.
