Introduction:

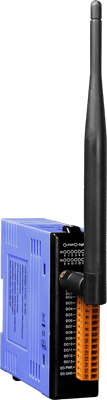

The ZT-2042 offers 4 PhotoMOS relay output channels and 4 sink-type digital output channels with short circuit protection. Each channel features photo couple isolation. The ZT-2042 has 8 LED indicators to display the DO channel status. 4kV ESD protection and 3000 VDC intra-module isolation are the standard. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.




Features:

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G /ZigBee Specifications
• Wireless Transmission Range up to 700 m
• GUI Configuration Software (Windows Version)
• 4 PhotoMOS Relay Output Channels and 4 Open Collector Digital Output Channels
• Short Circuit Protection
• Surge and ESD Protection
• DIN-Rail Mounting

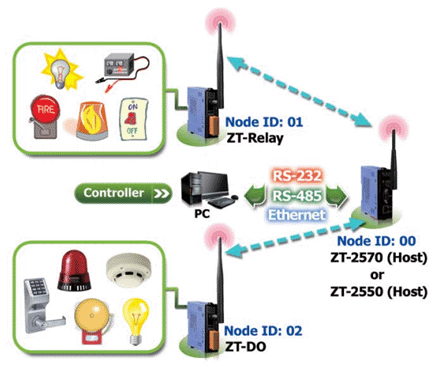

Applications:

For more information, please visit the following website:
https://www.icpdas.com/en/product/ZT-2042
