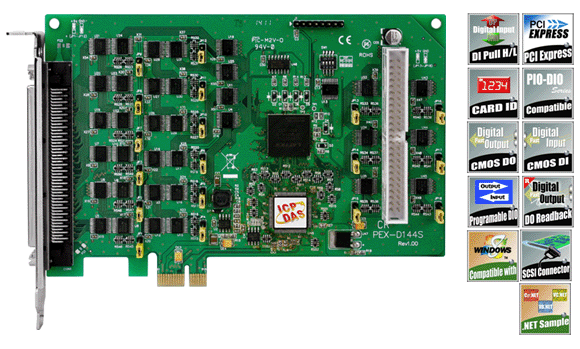

PEX-D144LS – PCI Express, 144–channel Digital I/O Boards

New Products 2014-12-26

Introduction

The new PEX-D144LS supports PCI Express bus and is designed as an easy replacement for the PIO-D144U/D144LU series board, without requiring any modification to the software or the driver.

The PEX-D144LS provides a 100-pin SCSI II high-density connector and a 50-pin box header that reduces the installation space required for the card in the computer and has 144 digital I/O lines( eighteen 8-bit bi-direction ports). All ports are configured as inputs when power-up or reset.

The PEX-D144LS also adds a Card ID switch and pull-high/low resisters for DI on board. Users may set Card ID on a board so the board can be distinguished by the ID via software when using two or more PEX-D144LS cards in one computer. The pull-high/ pull-low resisters specify the DI status; when the DI channels are unconnected, the DI status will remain in high or low status without being left floating.

This card support various OS such as Linux, DOS, Windows 98, Windows NT, Windows 2000, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Comparison Table
PEX-D144LS V.S. PIO-D144LU/D144U

	PEX-D144LS	PIO-D144LU	PIO-D144U
Interface	PCI Express	Universal PCI
Wiring/Pin assignments	Incompatible
Software/API	Compatible
DIO response time	500 kHz	1.2 MHz
I/O Connector	Female SCSI II 100-pin x 1 50-pin box header x 1		Female DB37 x 1 50-pin box header x 5
Card ID	Yes(4-bit)
DI Pull-High/Low	Yes
Advantage	Low power consumption、Low temperature		High DO Driving (Output Capability)

Feature:
	Support the PCI Express bus

	Card ID function, users can set Card ID to distinguish one card from the others when users have two or more same model I/O cards.

	Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in high or low status. (non-floating)

	Up to 144 channels of 5 V/CMOS digital I/O Bi-direction programmable I/O ports under software control All I/O lines buffered on the board Eighteen 8-bit bi-direction I/O ports Output status readback Provide four interrupt sources

	Software compatible with the PIO-DIO series. Easy replacement for the PIO-D144U/D144LU series board.

	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs

	Support Microsoft Windows 8 32-/64-bit version OS Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS

	One Female SCSI II 100-pin connector. Connect directly to DN-100 daughter boards

For more information, please visit the PEX-D144LS web site.
