Introduction

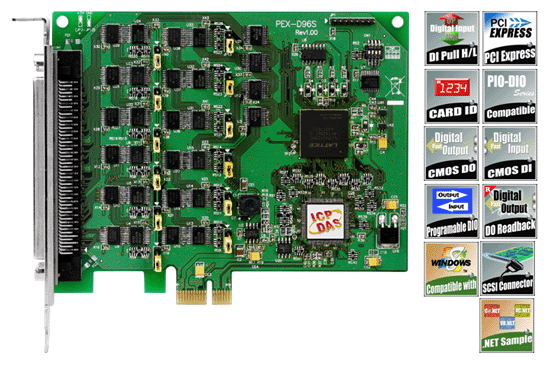

The new PEX-D96S supports PCI Express bus and is designed as an easy replacement for the PIO-D96U series board without requiring any modification to the software or the driver.

The PEX-D96S provides a single high-density connector that reduces the installation space required for the card in the computer and has 96 digital I/O lines (twelve 8-bit bi-direction ports). All ports are configured as inputs when power-up or reset.

The PEX-D96S also adds a Card ID switch and pull-high/low resisters for DI on board. Users may set Card ID on a board so the board can be distinguished by the ID via software when using two or more PEX-D96S cards in one computer. The pull-high/ pull-low resisters specify the DI status; when the DI channels are unconnected, the DI status will remain in high or low status without being left floating.

This card support various OS such as Linux, DOS, Windows 98, Windows NT, Windows 2000, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.




Comparison Table
PEX-D96S V.S. PIO-D96SU/D96U





Feature:
	Support the PCI Express bus
	Card ID function, users can set Card ID to distinguish one card from the others when users have two or more same model I/O cards.
	Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in high or low status. (non-floating)
	Up to 96 channels of 5 V/CMOS digital I/O Bi-direction programmable I/O ports under software control All I/O lines buffered on the board Twelve 8-bit bi-direction I/O ports Output status readback Provide four interrupt sources
	Software compatible with the PIO-DIO series. Easy replacement for the PIO-D96U series board.
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support Microsoft Windows 8 32-/64-bit version OS Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS
	One Female SCSI II 100-pin connector. Connect directly to DN-100 daughter boards

For more information, please visit the PEX-D96S web site.
