Introduction:

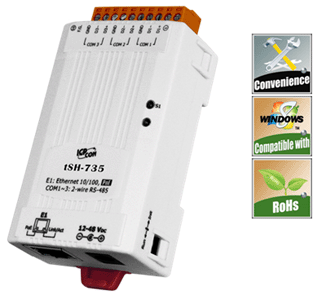

Following the success of the original tGW-700/tDS-700 modules, ICP DAS has continued to develop new functions for these products in order to provide enhanced support for a greater number of applications. The tSH-700 module is a serial port sharer that provides a number of functions, including "Baud Rate Conversion", "Modbus RTU/ASCII Conversion" and "Two Masters Share One Slave". The built-in web server provides easy configuration interface, and no console commands are required.

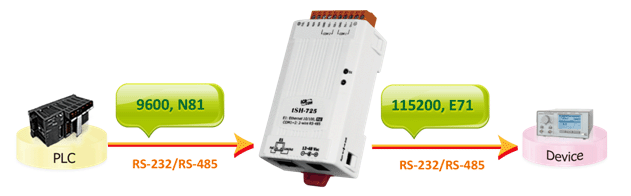

● Baud Rate Conversion: This function allows a single master device to communicate with slave devices using different baud rates and data formats. Most query-response protocols (half-duplex), e.g. DCON, are supported in the raw data mode. Full-duplex communication should also work when the data size is smaller than the built-in 512 bytes buffer on each serial port.

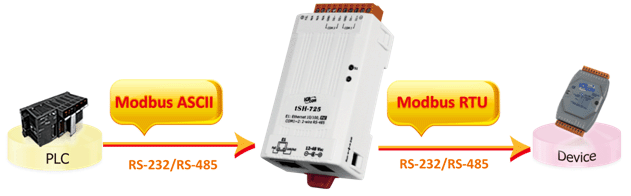

● Modbus RTU/ASCII Conversion: This function allows a single Modbus RTU/ASCII master device to communicate with Modbus RTU/ASCII slave devices using different protocols, baud rates and data formats.




● Two Masters Share One Slave: This function allows two master devices connected to different serial ports to share slave devices. Modbus mode can be used to convert the Modbus RTU/ASCII protocols, while raw data mode can be used for DCON or other query-response protocols. Different baud rates and data formats can also be used on the different serial ports. The built-in cache function reduces the loading of serial communication on the slave port by removing duplicated queries when the two master devices are requesting the same information.

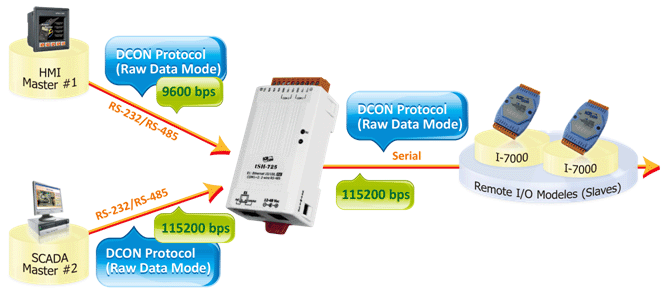

► Two Masters Share Slave Devices in Raw Data Mode with Baud Rates Conversion.

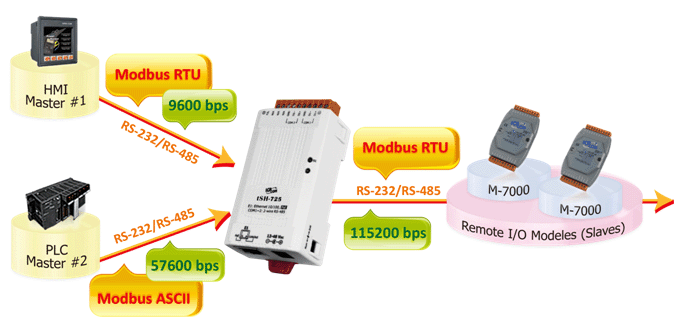

► Two Masters Share Slave Devices with Protocols and Baud Rates Conversion.



Feature:
	Supports Baud Rate conversion application Supports Modbus RTU/ASCII protocol conversion Supports two masters sharing one slave port Raw data mode for most query-response protocols Built-in web server for easy configuration (HTTP) Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack Allows automatic RS-485 direction control Tiny form-factor and low power consumption
	Includes an eSearch utility for Windows 2000/XP/2003/2008/Vista/7 and Windows 8 (32/64-bit)
	RoHs compliant & no Halogen



Selection Guide:

For more information, please visit the tSH-700 web site.
