Introduction:

ZT-2055-IOP module acts as a ZigBee coordinator that by default provides 8-channel digital input and 8-channel digital output pair-connection function to work with ZT-2055. ZT-2055-IOP features embedded I/O channel binding function and it means that there is no need to use an external controller.

The status of each ZT-2055-IOP channel is bound to a remote channel of the ZT-2055 in the default configuration. The ZT-2055-IOP constantly updates the status of its own DI channels to the corresponding DO channel of the remote ZT-2055. And vice versa, the ZT-2055-IOP also constantly reads the status of the DI channel of the remote ZT-2055 to synchronize its own DO channels.

The ZT-2055-IOP provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any difficult wiring environment.




Features::

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
• Wireless Transmission Range up to 700 m (Default)
• Adjustable RF Transmission Output Power
• 8 Channels Pair-connection of the Digital Input and Digital Output
• DO Safe Value setting for Wireless Disconnection Monitoring
• Configurable I/O Pairing Number
• Surge and ESD Protection
• Supports AES-128 Encryption for the Wireless Communication
• DIN-Rail Mountable

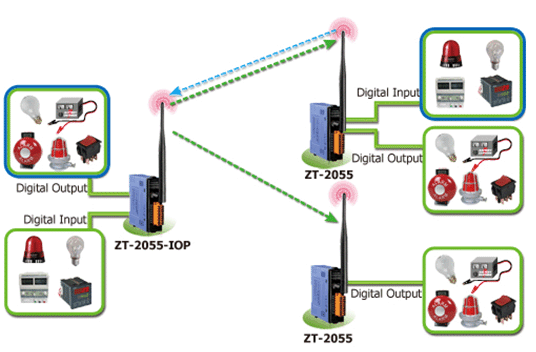

Application:

More information, please refer to…
