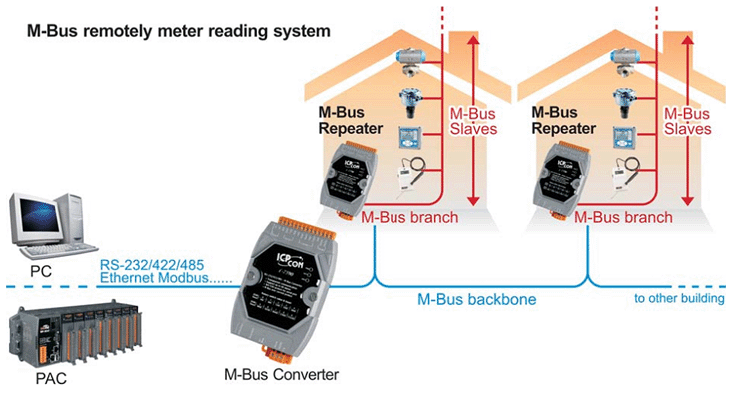

The M-Bus ("Meter-Bus") is a European standard for remote reading of meters. It is usable for most types of consumption meters (i.e. water meter, electricity meter, heat meter, gas meter, etc.) as well as for various sensors and actuators.





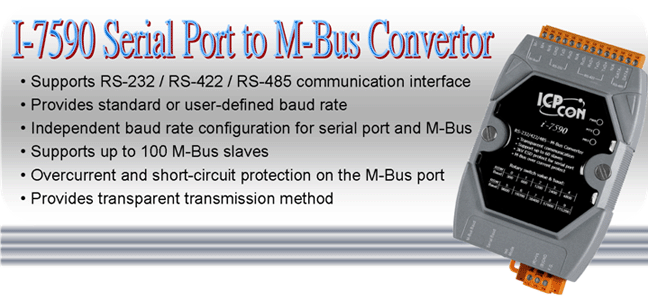

The I-7590 is specially designed for M-Bus slave device. It offers RS-232, RS-422 and RS-485 three kinds of communication way. For the hardware of the I-7590, it has two rotary switches for serial port and M-Bus port baud rate. This design allows master baud rate to be different from the M-Bus slave baud rate. For the communication of the I-7590, it uses transparent communication. It solves the problem when performing protocol conversion between the master and the slave, and makes the communication easier. I-7590 is perfect for use when a new M-Bus device is added to an old RS-485 network or when the master firmware and configuration required not being changed.




Specifications & Features:

• M-Bus Port: 1
• Serial Port: 1 (RS-232/RS-422/RS-485)
• Serial Baud and M-Bus Baud can be configured separately.
• Provides 10 kinds of Baud for default, 6 kinds of Baud for user-defined.
• Supports up to 100 M-Bus slaves.
• Provides transparent communication.
• Watchdog inside.
• Allows updating firmware by the RS-232 port.
• Overcurrent and short-circuit protection on the M-Bus port.
• 3750 Vrms photocouple isolation on the M-Bus port.
• ±4 kV ESD to contact.
• Reverse polarity protection on power.
• Provide 3 LED indicators, PWR LED, MTX LED and MRX LED.
• Power requirement +10 VDC to+30 VDC.
• Operating Temperature: -25℃ to +75℃.
• Storage Temperature: -30℃ to +80℃.
• Humidity: 10 to 90% RH, Non-condensing.
• Dimensions: 72mm x 122mm x 33mm (W x L x H)



Utility:

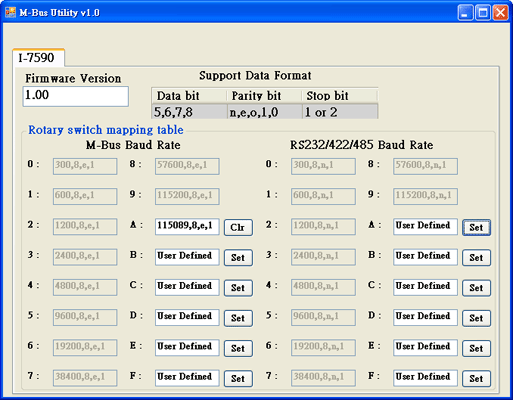

The M-Bus Utility provides the function to easily configure user-defined Baud Rate for M-Bus and Serial Port.

Support Data Format:

• Data bit: 5 bit, 6 bit, 7 bit, 8 bit
• Parity: None, Even, Odd, Mark, Space
• Stop bit: 1 bit, 2 bit

For more detailed information, please refer to the product link: https://www.icpdas.com/en/product/I-7590
